ESD Personnel Tester

The ESD Personnel Tester combines grounding-device verification, operator identification and access-control connectivity in a freestanding station for electrostatic protected area entrances.

One entry station verifies wrist-strap and independent left/right footwear grounding paths.
Screen, high/pass/low lamps and touch electrode give operators an immediate test sequence.
RFID-ready identification and relay options support controlled access and traceable records.

Request a Quote Browse Products

Product Introduction

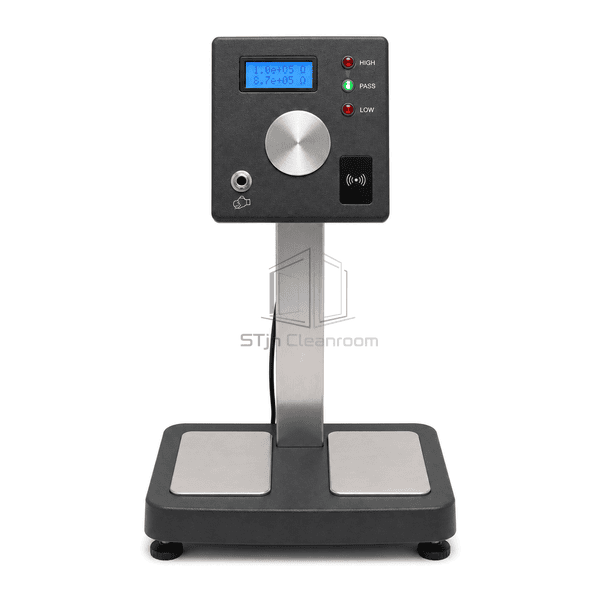

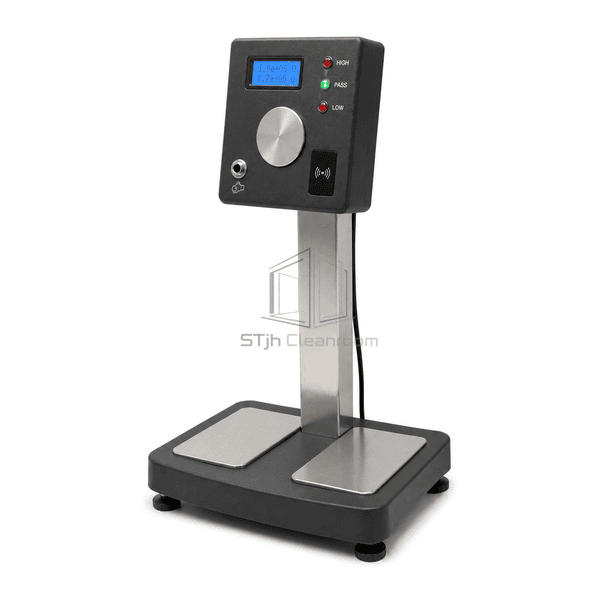

This integrated entry station uses two electrically isolated stainless footwear plates, a wrist-cord socket and a broad metal touch electrode to check worn personnel grounding equipment. A blue display presents measurement or operating prompts, while separate high, pass and low lamps provide an easily recognized result. The reader area can identify authorized personnel before the test, and an optional relay or data interface can pass an approved result to a door, turnstile or local record system. The tester head is supported by a brushed-stainless post above a stable charcoal platform for repeated industrial use.

Key Features

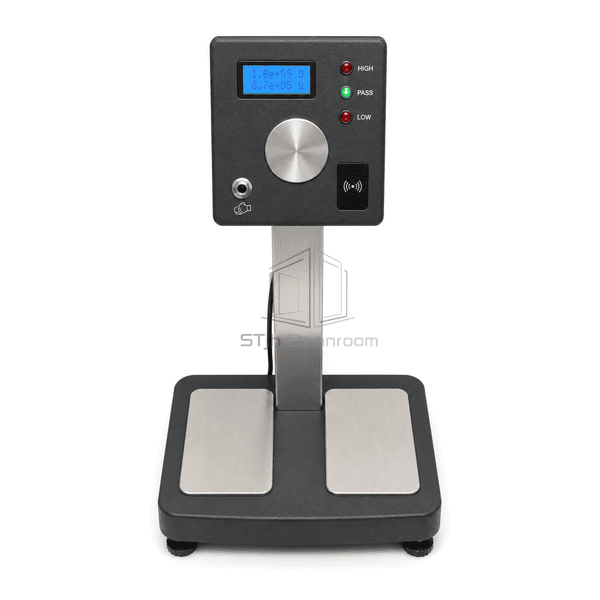

Split footwear electrodes evaluate the grounding path through each foot independently.

Dedicated wrist-strap socket supports worn-strap verification at the same station.

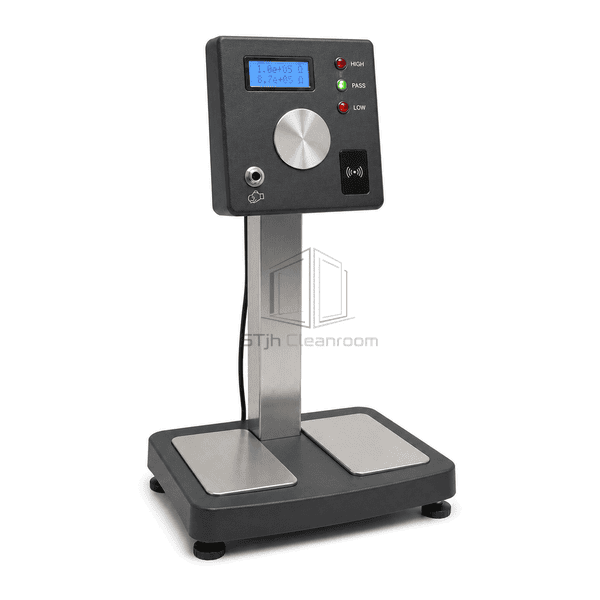

Large stainless touch electrode initiates the measurement without a mechanical key switch.

Blue display and red/green/red status lamps separate instructions from pass/fail recognition.

Integrated reader area supports RFID badge identification when specified.

Output options can interlock a door, turnstile or other EPA access device after a valid test.

Brushed-stainless contact surfaces are accessible for routine inspection and cleaning.

Customer Product Concerns

An entry tester must verify several grounding paths without slowing personnel flow, associate the result with the correct operator and prevent an incomplete test from being treated as authorization.

A shared footwear contact can hide a failed shoe or heel grounder.Two isolated plates preserve separate left- and right-foot measurements.

Wrist straps and footwear require separate checkpoints.The combined head provides a wrist input, footwear circuits and one touch-operated sequence.

Operators misread a numerical result at a busy entrance.A screen supplies prompts while dedicated high, pass and low lamps communicate the outcome at a glance.

Paper logs cannot reliably associate a test with a person.An RFID-ready reader and optional data interface link identification to the recorded test event.

A failed or skipped test does not stop entry to a sensitive area.A configurable relay output can release an access device only after the required test returns a valid pass.

Typical Applications

Controlled entrances to electronics manufacturing EPAs.Semiconductor assembly and test facilities.Clean manufacturing gowning and personnel-transition zones.Static-sensitive laboratories, repair centers and component stores.Workplaces requiring operator identification before ESD compliance verification.

Technical Parameters

The values below describe a representative combined personnel-test station. Resistance limits, operator-identification method, result storage, communications and access-control output can be selected to match the facility ESD control plan.

Core Material	Brushed-stainless footwear electrodes and support post with flame-retardant ABS tester enclosure
Panel Thickness	2.0–4.0 mm molded tester-head and base-wall thickness
Effective Width	420–560 mm usable station width
Maximum Length	Up to 750 mm platform depth
Steel Facing Thickness	1.0–1.5 mm stainless contact-plate facing thickness
Core Density	7800–8000 kg/m³ stainless-steel density
Thermal Conductivity	14–17 W/(m·K) for stainless contact and support components
Surface Finish	Brushed stainless electrodes and post with textured charcoal housing and base
Joint Type	Isolated dual-foot plates and wrist input linked to a touch tester, display, reader and optional relay output
Customization	Available based on the intended application and operating environment.

Available Options

Selectable wrist-strap and footwear resistance limits.RFID, barcode or keypad operator identification.Local result storage or network data export.Dry-contact relay for door, turnstile or signal-tower integration.Audible prompt and alarm configurations.Alternative platform width, post height, power input and communication interface.
