Demountable Cleanroom Wall Panel

A removable steel-faced wall module hooked onto an internal stud frame, allowing either room face to be opened for utility work, equipment routes or future layout changes.

Remove from Either Wall Face
Accessible Internal Service Void
6 m Panel-Run Height
Replaceable Hook-On Modules

Request a Quote Browse Products

Product Introduction

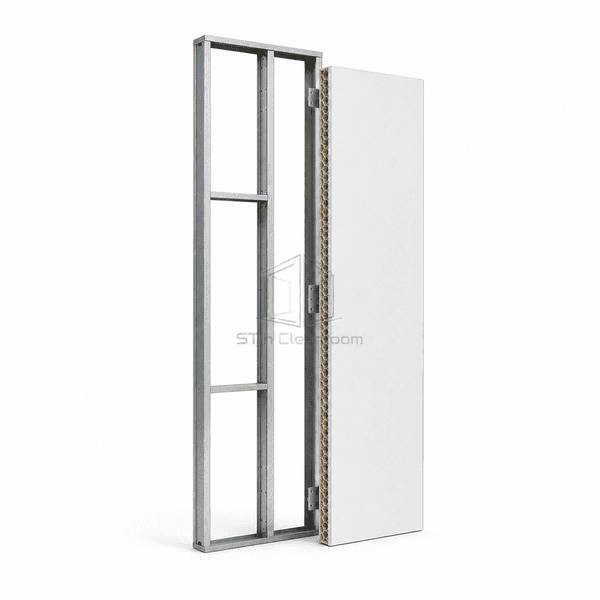

Demountable Cleanroom Wall Panels use thin composite leaves on both sides of a galvanized stud-and-noggin frame. Each 15 mm leaf hooks onto the structure rather than being permanently bonded into a monolithic wall. The 100 mm complete wall depth provides a protected pathway for electrical and mechanical services, and the recessed floor track lets resilient or resin flooring finish flush to the base. A panel can be removed from one side or mid-run, giving maintenance teams access without dismantling the opposite room face.

Key Features

Independent room-side leaves open the service cavity from the most convenient side.

Internal studs carry wall loads while removable facings remain light enough for controlled handling.

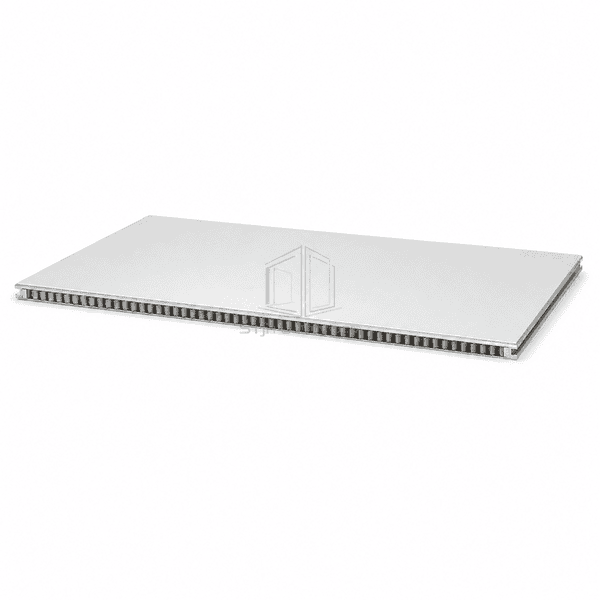

Aluminum honeycomb backing keeps each hook-on module flat without loose-fibre insulation.

Recessed base construction permits a continuous hygienic floor transition.

Individual modules can be exchanged when the layout or surface finish changes.

Customer Product Concerns

Demountable-wall buyers are concerned with service access, panel flatness, repeatable sealing and avoiding damage during future equipment changes.

Concealed pipes and cables in a sealed wall are expensive to reach after commissioning.Hook-on leaves detach individually and expose the framed service void without cutting the wall.

A large process machine may not fit through the personnel or material door.A designated removable wall section creates a temporary full-height equipment route.

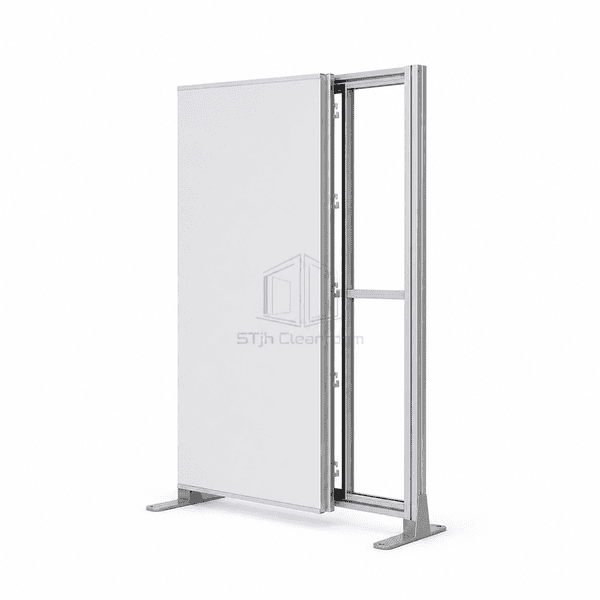

Repeated removal can deform weak decorative sheets and disturb adjoining modules.Honeycomb-backed leaves and positive support hooks retain panel stiffness through planned access cycles.

Reassembled joints may leak if seals cannot be renewed cleanly.Defined vertical gaps and replaceable cleanroom sealant restore the room-side closure after refitting.

Typical Applications

Pharmaceutical rooms with dense utilitiesSemiconductor process wallsReconfigurable medical-device production partitionsEquipment replacement access routesCleanrooms expected to undergo phased expansion

Technical Parameters

Typical dimensions for a double-sided demountable cleanroom service wall are listed below.

Core Material	Aluminum honeycomb backing on removable room-side panel leaves
Panel Thickness	15 mm removable leaf; 100 mm complete wall depth
Effective Width	1000 mm standard wall module
Maximum Length	6000 mm maximum wall height
Steel Facing Thickness	0.60 mm coated steel sheet
Core Density	20–30 kg/m³ aluminum honeycomb
Thermal Conductivity	N/A — demountable service wall is not intended as a thermal-insulation assembly
Surface Finish	PET or uPVC-coated steel, powder-coated metal, or satin stainless steel
Joint Type	Demountable hook-on panel connection over galvanized studs with sealed vertical gap
Customization	Available based on the intended application and operating environment

Available Options

One-side or two-side panel removalPlasterboard-backed leaf304 or 316L stainless steel faceOversized equipment-access section
