Cleanroom Furniture and Stainless Steel Products
Cleanroom Waste Cart

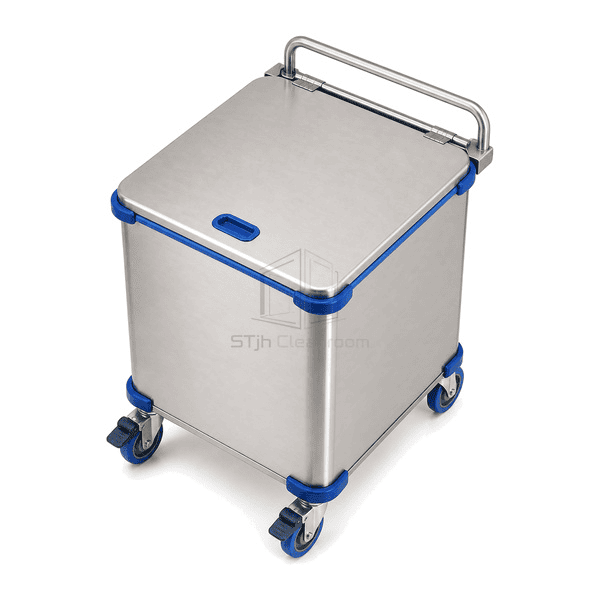

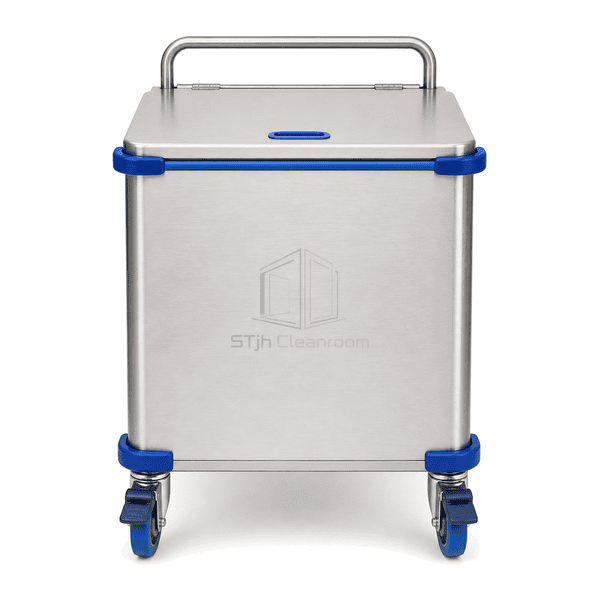

A welded Type 304 stainless waste cart with a gasketed hinged lid, removable blue polymer liner, bag-retaining frame, rear push handle and four non-marking swivel casters.
- Gasketed hinged lid
- Removable blue liner
- Smooth welded waste chamber
- Four non-marking casters
Product Introduction

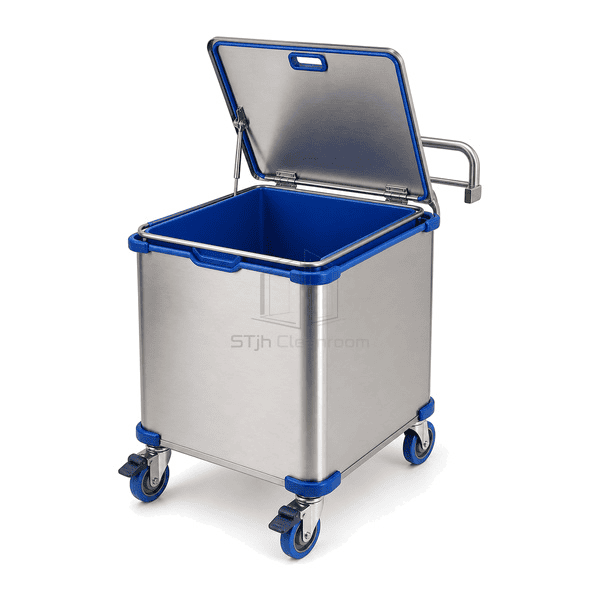

The cleanroom waste cart consolidates sealed soft waste and disposable production materials before they leave a controlled area. A smooth Type 304 stainless outer body surrounds a removable blue high-density polyethylene liner, keeping the transport surface separate from the waste bag. The lift-up lid closes against a blue silicone perimeter gasket and is held by a controlled gas-spring mechanism. A rounded rear handle, blue corner bumpers and four swivel casters support movement through doors without exposed sharp edges.
Key Features
A silicone-gasketed lid limits open exposure while the loaded cart waits for transfer.
The welded stainless chamber has radiused internal corners rather than folded dirt traps.

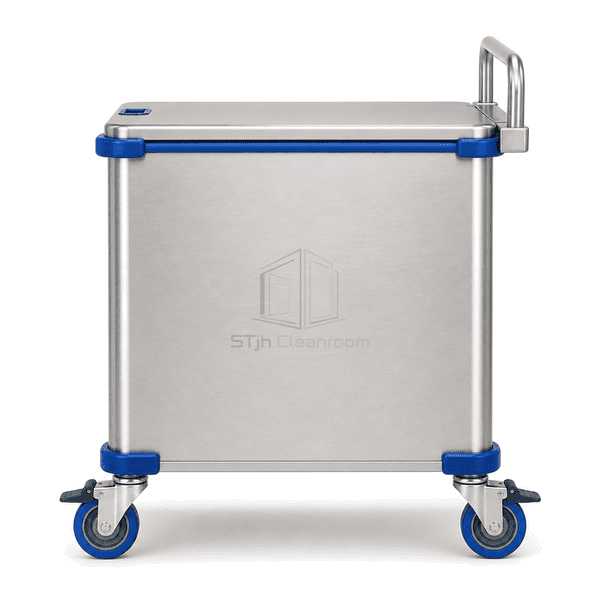

Blue corner bumpers and non-marking casters protect clean finishes during corridor movement.
Customer Product Concerns
Mobile waste handling must keep the liner retained, shield contents between collection points and remain maneuverable after the load shifts inside the cart.
An unsupported bag collapses into the cart and exposes its contaminated outer surface.A removable rigid liner and stainless retaining frame hold the bag mouth at the chamber rim.
A loose lid swings during transport and contacts nearby walls or personnel.The hinged lid uses a controlled gas spring and a positive closed stop against the perimeter gasket.
Waste liquid reaches folded seams that cannot be inspected during cleaning.The welded inner chamber uses smooth radiused corners and an independently removable liner.
A loaded cart marks wall panels when it turns through narrow transfer doors.Four blue corner bumpers and a rounded push handle define protected contact points.
Typical Applications
Pharmaceutical disposable waste transferClean packaging scrap collectionMedical-device assembly waste movementLaboratory consumable disposal routesControlled laundry bag transport
Technical Parameters
Typical configurable specifications for a mobile lidded cleanroom waste cart are listed below.
| Core Material | Type 304 stainless welded outer body with removable blue HDPE liner, silicone lid gasket and blue polyurethane casters |
|---|---|
| Panel Thickness | 1.2 mm welded stainless body and hinged lid panels |
| Effective Width | 500 mm internal collection chamber width |
| Maximum Length | 850 mm maximum overall length including rear push handle |
| Steel Facing Thickness | 1.2 mm Type 304 stainless shell; 1.5 mm reinforced rim |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless body components |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless body components |
| Surface Finish | Uniform satin-brushed stainless exterior with smooth welded interior, blue gasket, liner and bumpers |
| Joint Type | Continuous welded body with pinned lid hinge, gas-spring clevis, removable bag frame and threaded caster plates |
| Customization | Available based on the intended application and operating environment. |
Available Options
77 L or 120 L chamberType 316L stainless bodyConductive caster setTwo-compartment recycling liner
Planning a Cleanroom Waste Cart specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
