Cleanroom Wall and Ceiling Systems
Cleanroom Utility Interface Panel
A flush 316L stainless steel interface station that organizes process gas, liquid, vacuum, electrical, data and instrumentation connections at the cleanroom boundary.
- 316L Hygienic Interface
- Multi-Utility Integration
- Flush Wall Mounting
- External Service Maintenance
Product Introduction
Cleanroom Utility Interface Panels consolidate point-of-use services into one smooth wall or ceiling station. A polished 316L stainless steel plate carries sanitary liquid and gas outlets alongside power, data, vacuum, communication or instrument connections, reducing scattered penetrations through the room envelope. The panel can be flush-mounted in modular walls, integrated into a service column or arranged as a ceiling interface. Internal pipework and conduits remain in the technical zone so most maintenance can occur without bringing tools and components into the process area.
Key Features
Polished 316L stainless steel provides a corrosion-resistant and readily wiped process-side interface.
Beveled or radiused exposed edges avoid sharp ledges around the flush wall opening.

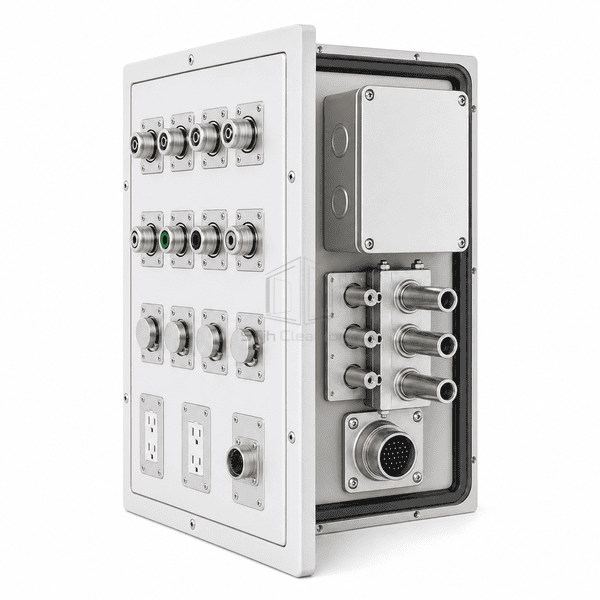

Rear service routing keeps valves, pipework and electrical components outside the primary production space.

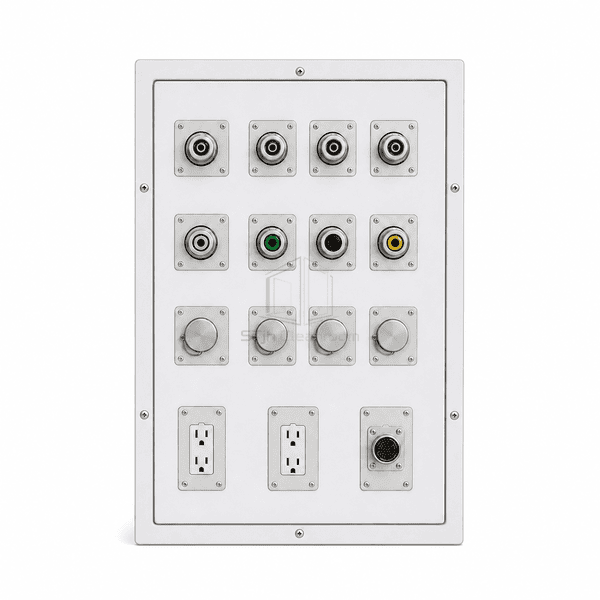

Mixed connection layouts support liquid, gas, vacuum, power, data and instrumentation at one location.
Customer Product Concerns
A utility interface must control numerous wall penetrations, keep incompatible services clearly separated and remain cleanable around every outlet.

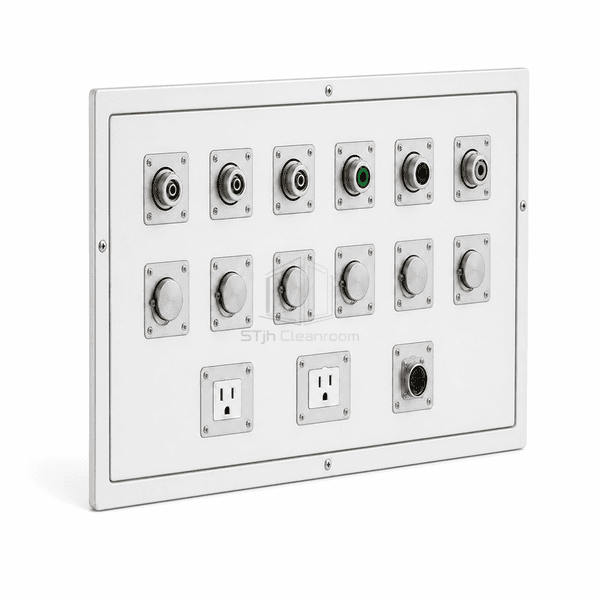

Scattered utility outlets multiply difficult-to-seal penetrations across the cleanroom wall.A single framed interface plate groups connections within one controlled perimeter seal.
Maintenance inside the production room introduces tools and opened components into the clean area.Rear-access pipework, conduits and valves remain serviceable from the technical side of the wall.
Poor outlet labeling creates a risk of connecting equipment to the wrong service.Engraved labels, color coding and physically separated connector groups make each utility identifiable.

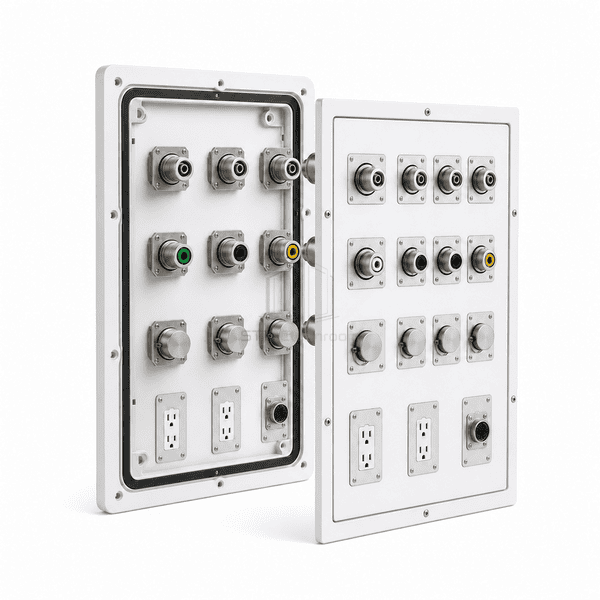

Crevices around individual fittings trap cleaning residue.Sanitary bulkhead fittings and a smooth polished plate close each penetration with a wipeable interface.
Typical Applications
Pharmaceutical process suitesBiotechnology process-support laboratoriesClean utility point-of-use stationsCIP and SIP routing interfacesMedical and research cleanrooms
Technical Parameters
Typical construction ranges for flush cleanroom utility interface panels are listed below.
| Core Material | Solid AISI 316L stainless steel interface plate and support frame |
|---|---|
| Panel Thickness | 2.0–3.0 mm interface plate thickness |
| Effective Width | 300–1200 mm interface width |
| Maximum Length | 2000 mm interface height |
| Steel Facing Thickness | 2.0–3.0 mm 316L stainless steel plate |
| Core Density | N/A — solid service interface without insulation core |
| Thermal Conductivity | N/A — utility connection station, not an insulating panel |
| Surface Finish | Mechanically polished or electropolished 316L stainless steel, typically Ra ≤ 0.8 µm |
| Joint Type | Flush framed wall or ceiling interface with sanitary bulkhead fittings and perimeter gasket |
| Customization | Available based on the intended application and operating environment |
Available Options
Wall, ceiling, column or pedestal mountingLiquid, gas, vacuum and WFI outletsPower, data and instrument connectionsEngraved service labels and color coding
Planning a Cleanroom Utility Interface Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
