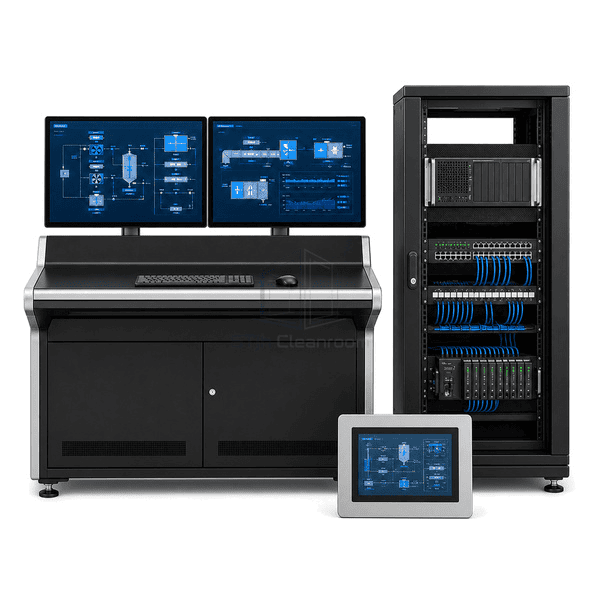

Cleanroom SCADA cabinet and dual-screen operator station shown in three-quarter view

Cleanroom Control and Environmental Monitoring Systems

Cleanroom SCADA System

An industrial supervisory platform that visualizes cleanroom HVAC and utility processes, records operating data and issues controlled commands to PLC-based equipment.

Real-Time Process Graphics
PLC Data Acquisition
Historian and Events
Controlled Remote Commands

Request a Quote Browse Products

Product Introduction

The SCADA layer communicates with PLCs and intelligent field devices rather than replacing their deterministic control. Process graphics display AHUs, pressure cascades, chilled water, compressed gases and production-support utilities with live operating values. Alarm summaries, sequence-of-events records and historical plots allow engineering staff to diagnose a change from the same workstation. Redundant network and server arrangements can be used where supervisory availability must continue through a hardware outage.

Key Features

Animated process diagrams connect live values to the physical cleanroom equipment sequence.

Industrial drivers acquire PLC tags over Ethernet without slowing local controller execution.

Historian charts correlate fan, valve, pressure and alarm events on a common time base.

Command confirmation and user permissions protect critical equipment from unintended operation.

Customer Product Concerns

A cleanroom SCADA system must present complex automation clearly while keeping machine and room control stable at the PLC level.

Operators see tag numbers but cannot relate them to the air system.Equipment-oriented graphics place each live tag on the corresponding fan, damper, coil or room.

A control response cannot be reconstructed after an excursion.Synchronized events and high-resolution historian trends preserve the operating sequence.

Supervisory commands bypass operating safeguards.SCADA writes are limited to PLC-approved command and setpoint objects with confirmation prompts.

A single workstation failure removes plant visibility.Client-server deployment and optional redundant servers maintain access from alternate operator stations.

Typical Applications

Cleanroom HVAC supervisionProcess utility monitoringCentral plant visualizationMulti-line manufacturing support

Technical Parameters

Typical industrial SCADA cabinet and workstation construction values are provided below.

Core Material	Powder-coated steel cabinet with industrial computer, FR-4 interface cards and copper network hardware
Panel Thickness	250-500 mm cabinet depth
Effective Width	600-1200 mm cabinet width
Maximum Length	Up to 2200 mm cabinet height
Steel Facing Thickness	1.5-2.0 mm powder-coated steel panels
Core Density	7800-8050 kg/m³ for steel cabinet components
Thermal Conductivity	45-60 W/(m·K) for steel structural panels
Surface Finish	Textured RAL 7035-style powder coat with black industrial display bezels

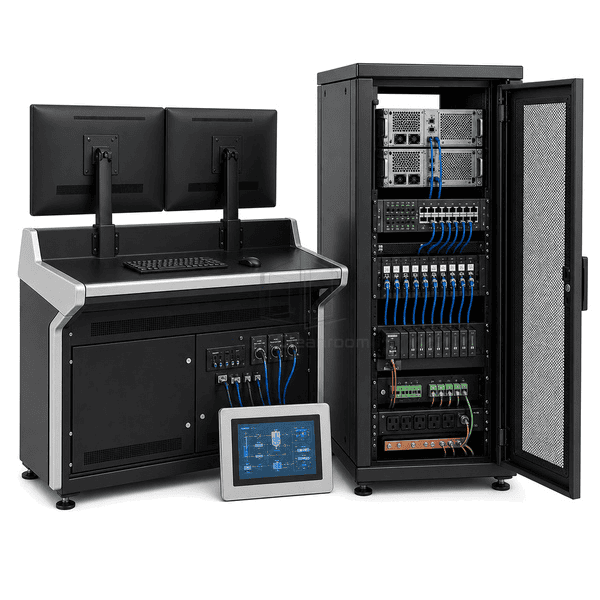

Joint Type	Modular floor cabinet with gasketed doors, managed Ethernet switches and serviceable terminal sections
Customization	Available based on the intended application and operating environment.

Available Options

Dual redundant SCADA serversHistorian database serverLarge-format operator video wallOPC UA connectivity

Planning a Cleanroom SCADA System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
