Cleanroom Garment Locker

A three-compartment Type 304L stainless personnel locker that separates each operator's clean garments and footwear behind an individually locked door.

Three independent user compartments
Individual keyed compression locks
Hat shelf garment rail and shoe shelf
Sloped top with raised cleanable base

Request a Quote Browse Products

Product Introduction

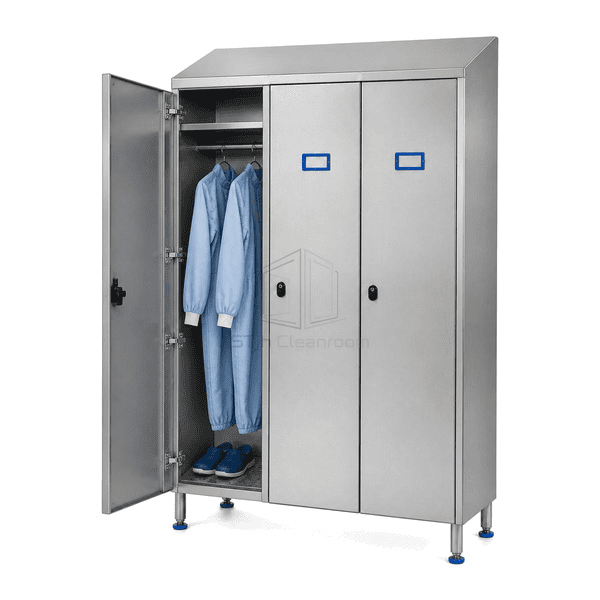

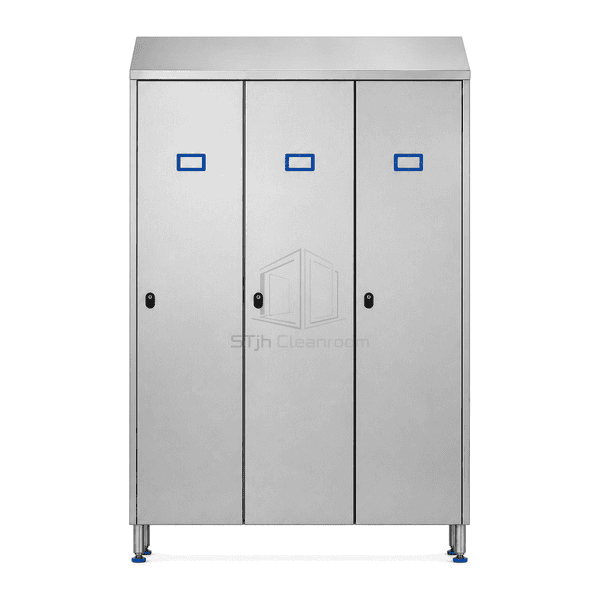

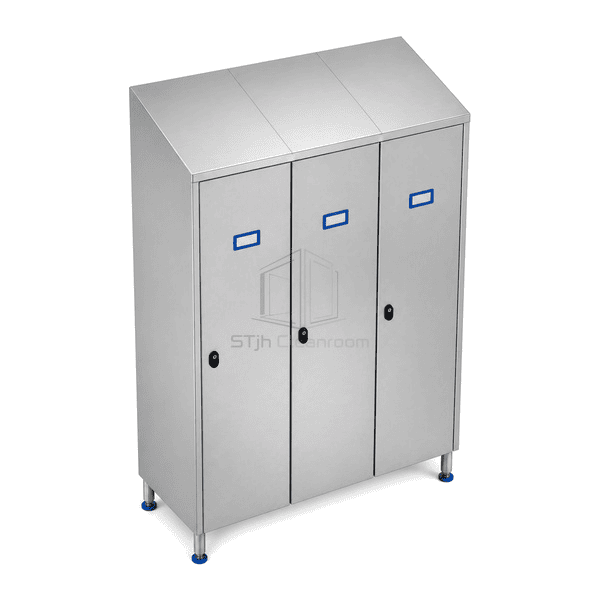

The cleanroom garment locker divides a fully welded Type 304L stainless enclosure into three narrow, full-height personnel compartments. Each compartment has its own keyed compression lock, blue identification holder, upper hat shelf, stainless hanging rail and perforated lower shoe shelf, so one operator's gowning set does not mix with another's. The sloped roof removes a horizontal storage ledge, while integral stainless legs leave the floor visible beneath the locker. Folded door returns, sealed divider edges and radiused internal corners support direct wiping without exposed raw edges.

Key Features

Three separately locked compartments give each operator a defined gowning space without sharing a common door.

An upper shelf, closed-loop hanger rail and perforated lower shoe shelf organize headwear, coveralls and footwear vertically.

Blue identification holders provide a visible assignment point without marking the stainless door surface.

The sloped roof and 150 mm raised base expose the areas where loose items and floor residue commonly accumulate.

Customer Product Concerns

Personnel garments need secure individual storage while the locker itself remains accessible for routine cleaning and assignment changes.

Shared cupboards allow operators to mix coveralls, headwear and personal footwear.Three full-height partitions and separately keyed doors maintain a clear boundary around each user's gowning set.

A single hanging rail leaves masks, hoods and shoes loose on the compartment floor.The hat shelf, closed-loop garment rail and perforated shoe shelf divide the compartment into dedicated storage zones.

Paper name labels leave adhesive residue on brushed stainless doors.Replaceable blue label inserts slide into fixed smooth-edged holders without bonding labels to the door skin.

Flat locker roofs and closed plinths create surfaces that are difficult to inspect.A pitched top discourages overhead storage and raised leveling feet keep the floor perimeter visible.

Typical Applications

Pharmaceutical cleanroom changing areasBiotechnology gowning roomsMedical-device cleanroom personnel entrancesMicroelectronics personnel airlocksHygienic food-production changing rooms

Technical Parameters

Typical configurable specifications for a three-compartment stainless cleanroom garment locker are listed below.

Core Material	Type 304L stainless steel welded carcass with three full-height internal dividers, hat shelves, garment rails and perforated shoe shelves
Panel Thickness	1.2–1.5 mm locker body, doors and internal partitions
Effective Width	900 mm overall width for three personnel compartments
Maximum Length	2000 mm maximum height at the rear of the sloped top
Steel Facing Thickness	1.2–1.5 mm Type 304L stainless door skins and enclosure panels
Core Density	7900–8000 kg/m³ for Type 304L stainless steel
Thermal Conductivity	14–16 W/(m·K) for Type 304L stainless steel
Surface Finish	Brushed No. 4 stainless with blue identification holders, black keyed locks and blue non-marking leveling pads
Joint Type	Continuously welded carcass and sealed dividers with folded-return doors, concealed hinges and individual compression locks
Customization	Available based on the intended application and operating environment.

Available Options

One- through ten-tier door arrangementsType 316L electropolished constructionElectronic combination or RFID locksPerforated doors for ventilated storage
