Cleanroom Air Distribution Systems
Cleanroom Exhaust Air Grille
A stainless-steel exhaust grille with a removable cleanable face and rear metal-mesh separator for controlled extraction from hygiene-sensitive rooms.
- Stainless Hygienic Face
- Removable Lint Separator
- Low-Level Extraction
- Autoclave-Capable Front Panel
Product Introduction

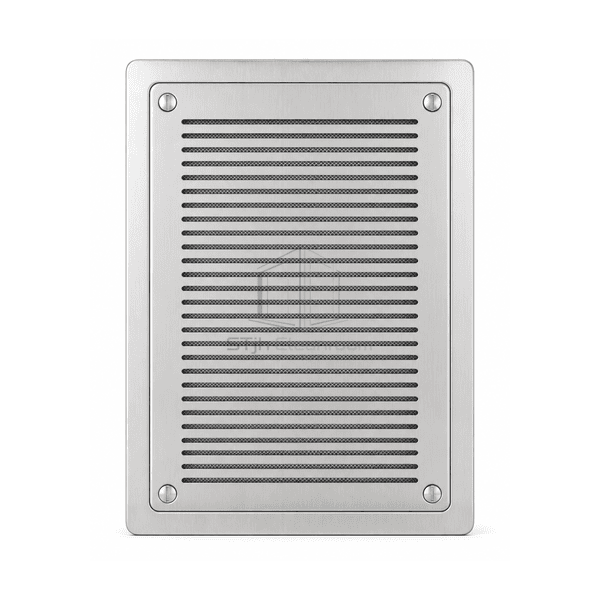

The cleanroom exhaust air grille is built for locations where the visible extract terminal must tolerate frequent disinfection and capture fibres before they enter the duct. A smooth 304 stainless-steel face protects a removable expanded-metal or woven-wire separator that traps lint without using disposable fibrous media at room level. Quarter-turn retainers release the front panel for cleaning, and the recessed mounting sleeve connects the grille directly to the exhaust branch. Rounded edges and flush fasteners reduce snagging around low-level wall installations.
Key Features

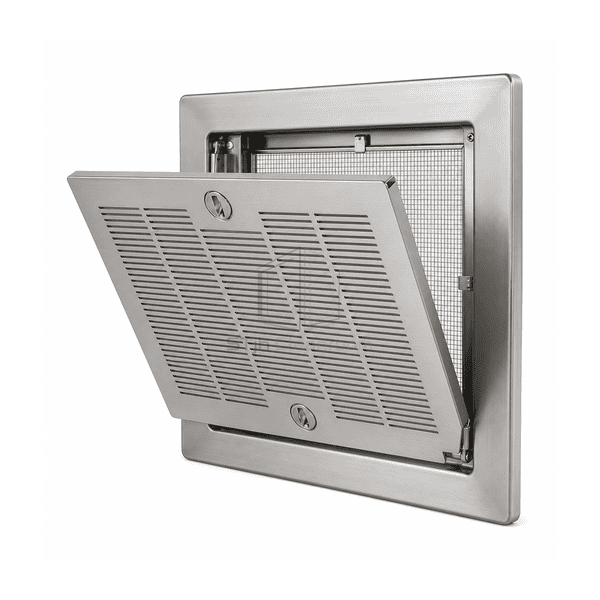

The reusable metal-mesh separator captures textile lint before it deposits in the exhaust duct.
Room-side retainers allow both grille and separator to be removed without entering the service void.

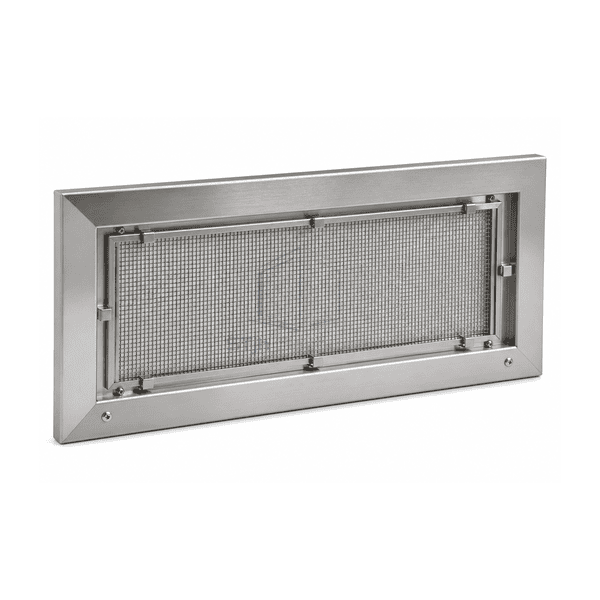

A shallow recessed sleeve keeps the visible face close to the cleanroom wall plane.
Customer Product Concerns
Hygienic exhaust terminals face lint loading, repeated chemical cleaning and restricted access at low wall level.
Garment fibres accumulate inside an inaccessible exhaust branch.A removable stainless mesh separator intercepts lint at the room boundary before it reaches the duct.
Paint chips or degrades under repeated hospital disinfectants.The visible panel uses corrosion-resistant stainless steel without a vulnerable decorative coating.

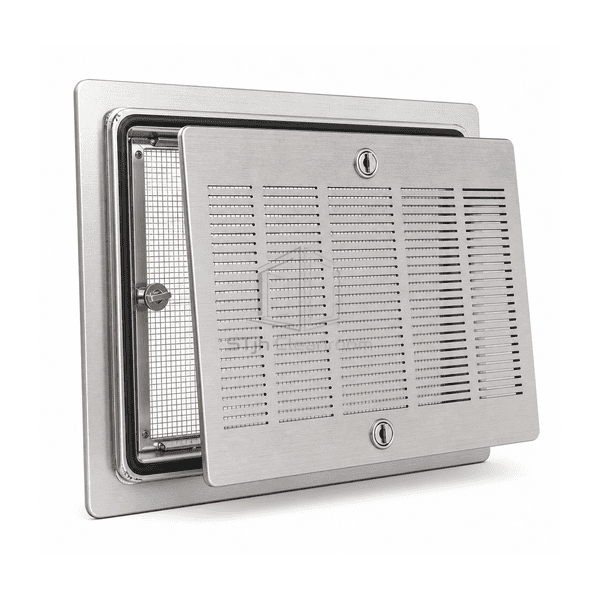

Sharp grille edges damage cleaning cloths and protective garments.Folded radiused edges and flush retainers leave a smooth perimeter around the opening.
Maintenance staff cannot reach the rear separator from the corridor side.The face and mesh pack both withdraw directly into the clean room for controlled cleaning.
Typical Applications
Operating-room and treatment-area exhaustPharmaceutical gowning exhaustSterile laundry and clean utility roomsCleanroom low-wall extractionLaboratory support-space exhaust
Technical Parameters
Representative construction ranges for a hygienic stainless cleanroom exhaust grille are listed below.
| Core Material | 304 stainless-steel front panel and frame with removable stainless expanded-metal or woven-mesh separator |
|---|---|
| Panel Thickness | 0.8–1.5 mm stainless front panel and mounting sleeve |
| Effective Width | 300–1000 mm nominal exhaust face width |
| Maximum Length | Up to 1200 mm for rectangular wall grilles |
| Steel Facing Thickness | 0.8–1.5 mm 304 stainless-steel visible panel |
| Core Density | Approximately 8000 kg/m³ for the 304 stainless-steel grille components |
| Thermal Conductivity | Approximately 14–16 W/(m·K) for the 304 stainless-steel grille components |
| Surface Finish | Brushed, bead-blasted or electropolished stainless steel with smooth folded edges |
| Joint Type | Quarter-turn removable face on a gasketed recessed wall sleeve with rear duct flange |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless-steel constructionPerforated or horizontal-slot visible faceExpanded-metal or woven-wire lint separatorFlush wall sleeve for sandwich-panel installation
Planning a Cleanroom Exhaust Air Grille specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
