Cleanroom Control and Environmental Monitoring Systems

Cleanroom Environmental Display

A flush wall display that presents cleanroom pressure, temperature, humidity and alarm condition in one easily interpreted room-status screen.

Multi-Parameter Room View
Color-Coded Status
Large Corridor Readability
Flush Cleanroom Bezel

Request a Quote Browse Products

Product Introduction

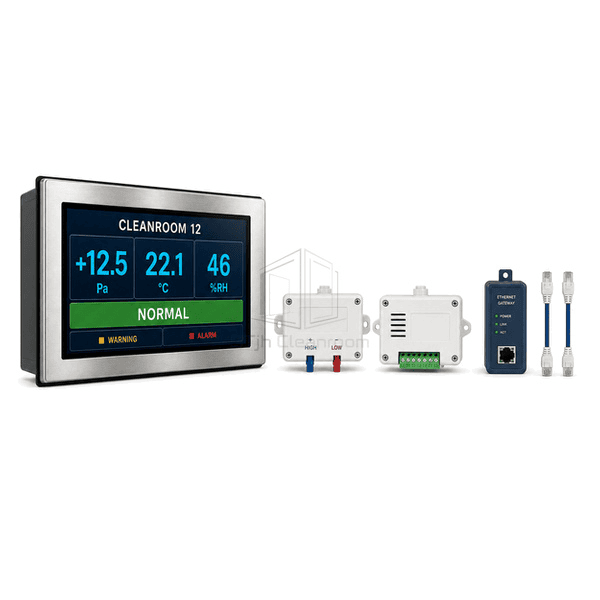

The cleanroom environmental display receives measurements from room sensors or the monitoring network and organizes them on one high-contrast screen. Large primary values remain readable from the corridor, while color bands distinguish normal, warning and alarm conditions without requiring staff to interpret every number. A flush stainless or smooth white bezel limits exposed edges, and configurable room names match the facility layout. Touch access can be restricted to viewing only, with configuration and acknowledgement permissions assigned separately.

Key Features

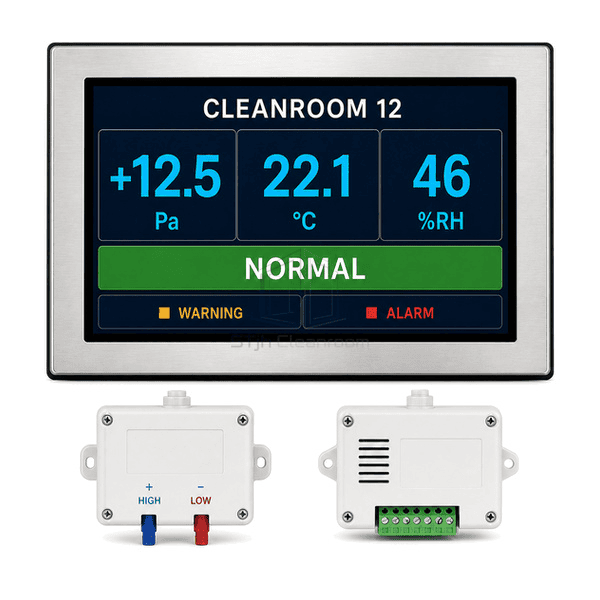

Large numeric values make pressure, temperature and humidity visible before room entry.

Consistent green, amber and red status colors communicate room condition quickly.

A flush bezel reduces protrusion and supports routine wipe-down around the display.

Configurable layouts prioritize the parameters and room name relevant to each location.

Customer Product Concerns

A room display must communicate the current environmental state at a glance without becoming a second uncontrolled control interface.

Staff must read several small instruments before entering a room.One screen combines the essential room parameters with a clear overall status banner.

Normal and alarm values look visually similar from the corridor.Large color-coded status areas make abnormal conditions obvious at viewing distance.

A protruding display bezel creates hard-to-clean ledges.A flush stainless or smooth white face sits close to the wall panel surface.

Anyone can change alarm limits from the room display.Role-based or locked configuration keeps the normal interface view-only.

Typical Applications

Pharmaceutical cleanroom entrancesHospital isolation-room entrancesLaboratory corridor displaysControlled production room status

Technical Parameters

Typical materials and dimensions for a flush cleanroom environmental display are listed below.

Core Material	Industrial LCD behind tempered glass with 304 stainless steel or powder-coated steel bezel
Panel Thickness	45-90 mm display depth
Effective Width	200-450 mm front bezel width
Maximum Length	Up to 600 mm bezel dimension
Steel Facing Thickness	1.0-1.5 mm 304 stainless or powder-coated steel bezel
Core Density	7900-8030 kg/m³ for stainless bezel components
Thermal Conductivity	14-17 W/(m·K) for 304 stainless steel bezel
Surface Finish	Brushed stainless or smooth white bezel with black glass and green-amber-red screen graphics

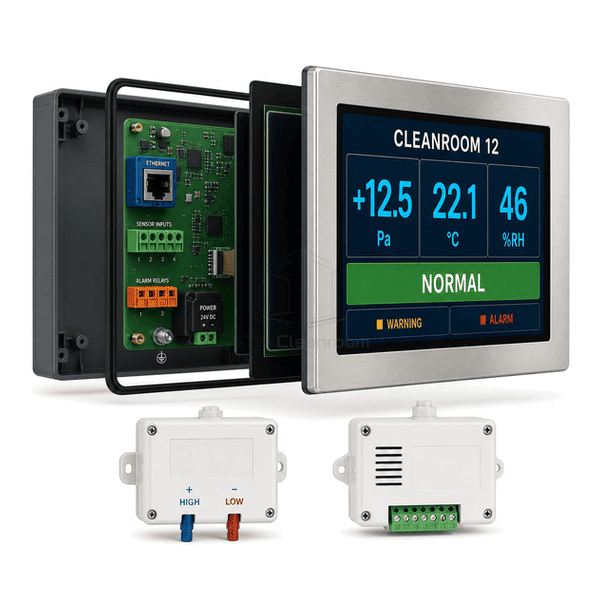

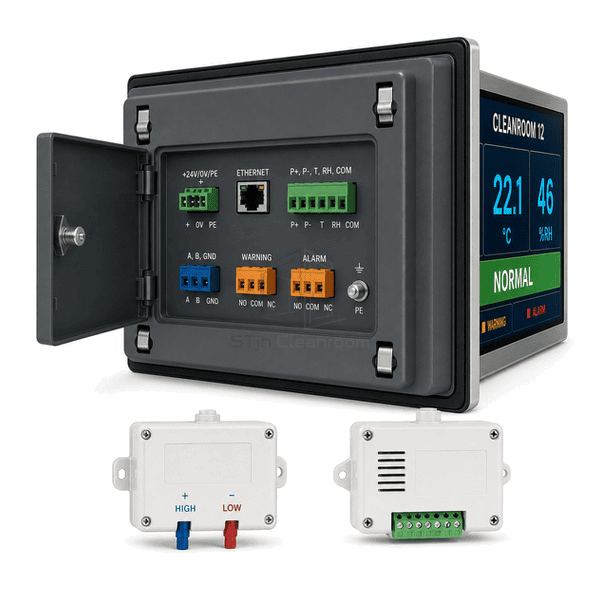

Joint Type	Flush wall cassette with gasketed front, rear power and network connectors
Customization	Available based on the intended application and operating environment.

Available Options

Stainless or white bezelTouch or non-touch screenLocal sensor inputsBACnet, Modbus or Ethernet
