Cleanroom Material Handling and Storage
Cleanroom Electric Hoist

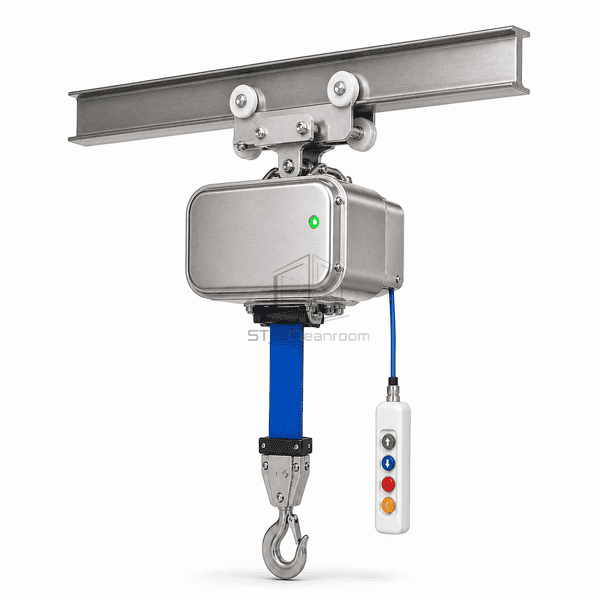

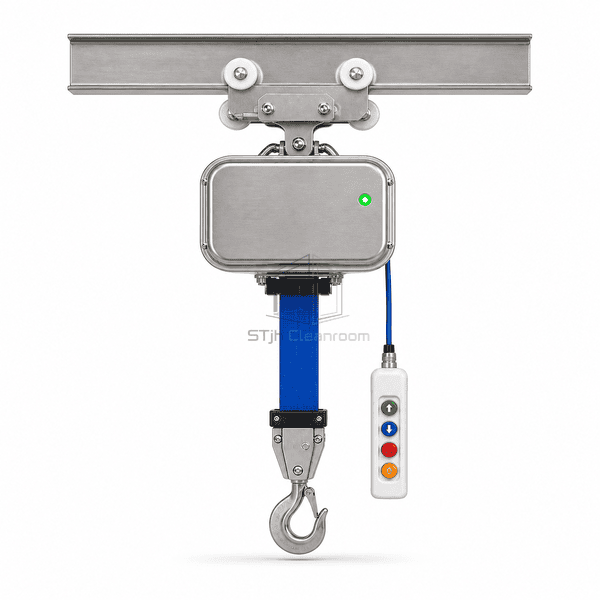

A stainless cleanroom electric hoist using a low-particle flat lifting belt, enclosed drive and pendant control for hygienic material handling.
- Lubrication-free flat belt keeps exposed lifting media clean
- Enclosed stainless housing simplifies controlled-area wipe-down
- Smooth, precise lifting for sensitive cleanroom loads
Product Introduction

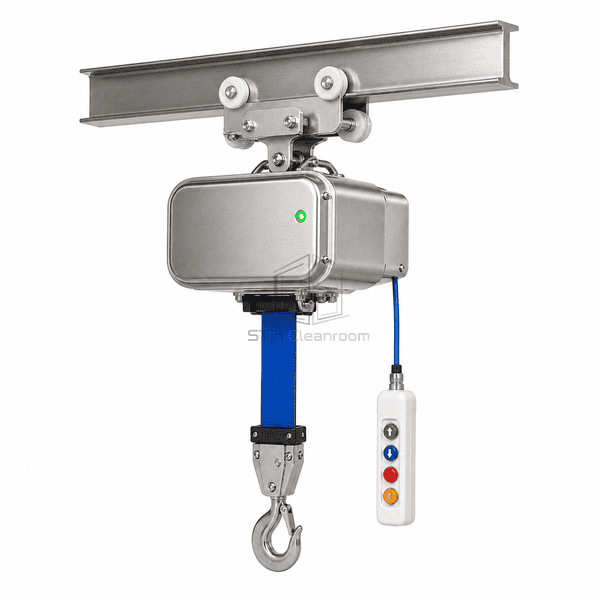

The cleanroom electric hoist replaces an exposed chain with a high-strength synthetic flat belt and encloses the motor, brake and transmission within a smooth stainless housing. A belt wiper limits carried-in residue, while corrosion-resistant trolley and hook components support frequent surface cleaning. The compact arrangement suits workstations and short monorails where operators need repeatable vertical handling without conventional chain lubricant near the process.
Key Features
Gasketed stainless drive enclosure presents smooth wipeable surfaces.
Polymer trolley wheels provide quiet travel with low abrasion.
Pendant controls separate lift commands and emergency stop functions.
Safety-latch hook helps retain suspended tooling during positioning.
Customer Product Concerns
Conventional chain hoists can expose lubricant, crevices and abrasion debris directly above sensitive products, while abrupt movement makes precise placement difficult.
Lubricant near open process areasThe synthetic belt lifts without exposed chain oil or grease.
Particle traps on the hoist bodyThe enclosed stainless housing uses smooth accessible exterior surfaces.
Unstable load positioningConfigurable lifting speed and responsive pendant control support controlled alignment.
Trolley abrasion and noiseClean-compatible polymer wheels reduce metal-on-metal rolling contact.
Typical Applications
Controlled lifting of vessels, tooling, product carriers and process components in pharmaceutical suites, biotechnology facilities, medical-device production and semiconductor cleanrooms.
Technical Parameters

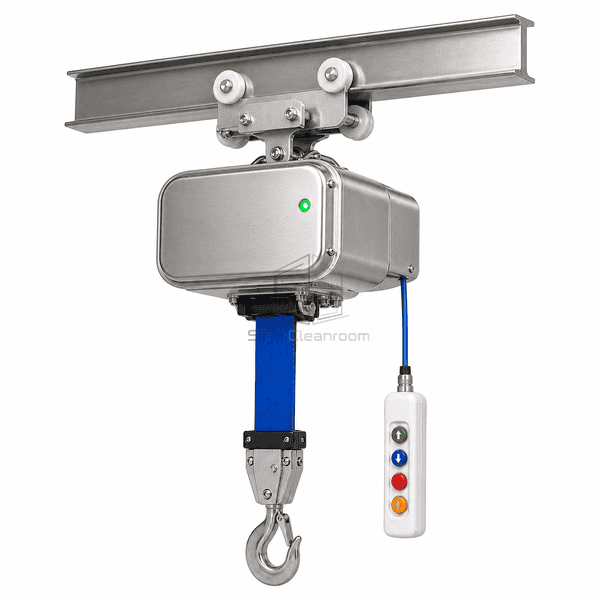

The belt is wound inside the sealed drive housing and passes through a close-clearance outlet wiper to the lower hook block. Load rating, lift height, travel speed and electrical supply are selected for the duty cycle; trolley geometry is matched to the supporting beam. Stainless external parts and clean-compatible polymers reduce particle traps while retaining accessible inspection points.
| Core Material | 304 or 316L stainless steel enclosure with high-strength synthetic flat lifting belt |
|---|---|
| Panel Thickness | 2.0–3.0 mm enclosure panels |
| Effective Width | 250–600 mm hoist body and trolley assembly |
| Maximum Length | Up to 12000 mm configurable lifting travel |
| Steel Facing Thickness | 1.5–2.5 mm |
| Core Density | 8000 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 14.6–16.2 W/(m·K) at room temperature |
| Surface Finish | Fine-brushed or electropolished stainless steel with clean-compatible polymer belt and wheels |
| Joint Type | Gasketed drive enclosure, beam-matched trolley and flat-belt hook-block connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, manual or powered trolley travel, variable-speed drive, alternative lift heights, radio control, stainless pendant, load display and application-specific hooks or lifting fixtures.
Planning a Cleanroom Electric Hoist specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
