Cleanroom Wall and Ceiling Systems
Cleanroom Cove Base Skirting
A hygienic skirting profile that protects the lower cleanroom wall and forms a smooth, sealable transition to vinyl, resin or other continuous flooring systems.
- Rounded Wall-to-Floor Transition
- Lower-Wall Impact Protection
- Sealed Hygienic Edges
- Aluminum or PVC Construction
Product Introduction

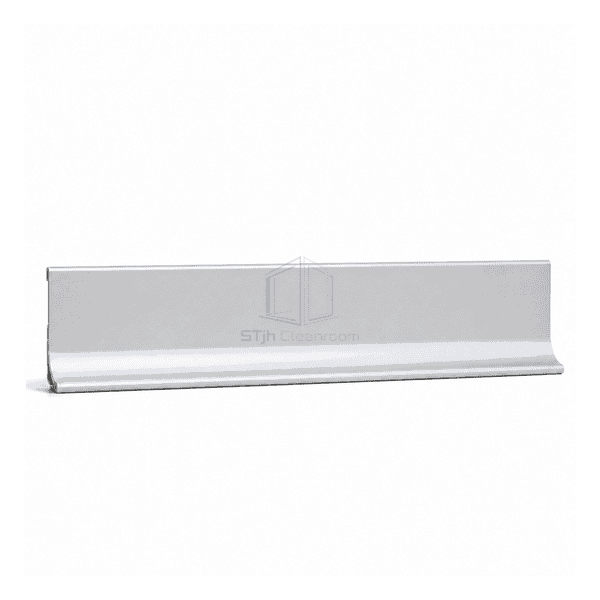

Cleanroom Cove Base Skirting replaces a sharp wall-to-floor corner with a smooth, closed transition that is easier to wipe and inspect. The profile can be supplied as powder-coated aluminum for rigidity or hard PVC for chemical compatibility with common hygienic wall finishes. A concealed backing or adhesive bed supports the visible face, while sealed upper and lower edges stop wash water and debris entering behind the trim. The skirting also shields the vulnerable lower wall from footwear, cleaning machines and light trolley contact without introducing ledges that trap contamination.
Key Features
The raised skirting protects panel skins from low-level scuffs and routine cleaning equipment.
Concealed clips or adhesive keep screw heads away from the exposed hygienic surface.
Sealable top and floor edges prevent liquid and debris from migrating behind the profile.
Aluminum and hard-PVC variants coordinate with resin, vinyl and modular wall finishes.
Customer Product Concerns
A cleanroom skirting must close the floor junction, resist routine knocks and remain compatible with both the wall finish and the flooring system.

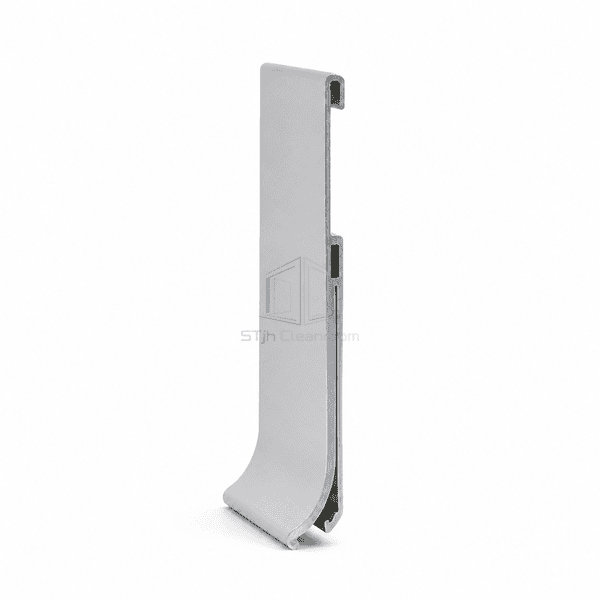

Dust and cleaning residue collect in a sharp 90-degree wall-to-floor corner.The coved face creates a broad radius that can be wiped in one continuous pass.

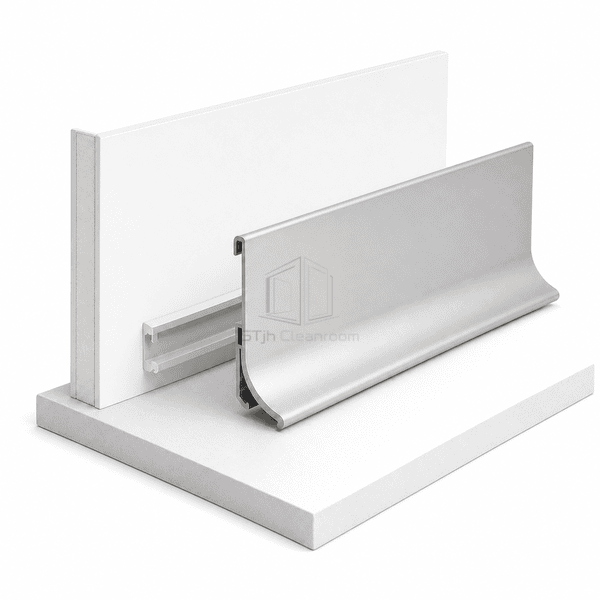

Water entering behind loose skirting can remain hidden against the wall base.Continuous upper and lower sealant lines close the profile against both adjoining finishes.

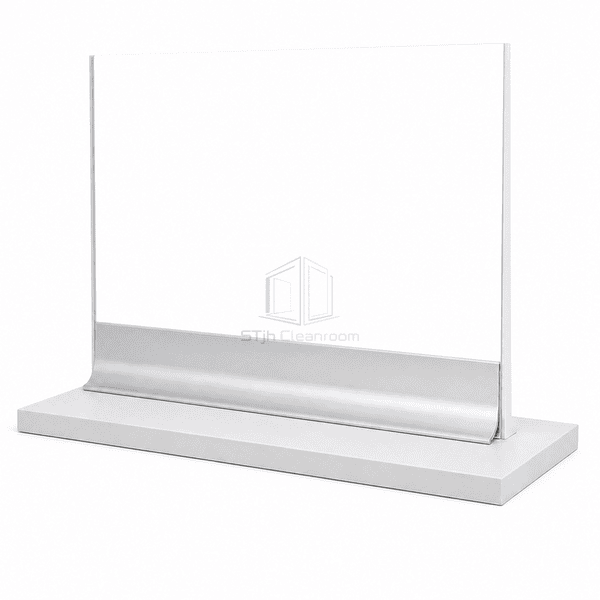

Trolley wheels and floor machines repeatedly mark the lowest part of a wall panel.A rigid raised profile receives light contact before it reaches the finished wall surface.
A mismatched trim can react differently to disinfectants than the surrounding room finish.Material and coating options allow the exposed skirting to match the intended cleaning chemistry.
Typical Applications
Pharmaceutical production roomsFood and beverage clean areasLaboratory corridorsCove skirting for medical-device clean productionCleanroom change and wash areas
Technical Parameters
Common dimensions and materials for cleanroom cove base skirting are listed below.
| Core Material | 6063 aluminum extrusion or solid hygienic PVC |
|---|---|
| Panel Thickness | 1.0–2.0 mm profile wall thickness |
| Effective Width | 50–100 mm exposed skirting height |
| Maximum Length | 3000 mm per section |
| Steel Facing Thickness | N/A — skirting is aluminum or PVC, not steel-faced |
| Core Density | N/A — solid or hollow extrusion without insulation core |
| Thermal Conductivity | N/A — not specified as an insulating panel |
| Surface Finish | Polyester powder-coated aluminum, anodized aluminum or smooth hard PVC |
| Joint Type | Concealed clip or adhesive fixing with sealed top and floor edges |
| Customization | Available based on the intended application and operating environment |
Available Options
Powder-coated aluminumHard PVC faceInternal and external corner piecesEnd caps and pre-cut lengths
