Cleanroom Ceiling Service Panel

A sealed ceiling-module interface that groups selected electrical, communication and process connections above a workstation.

Flush Ceiling Module

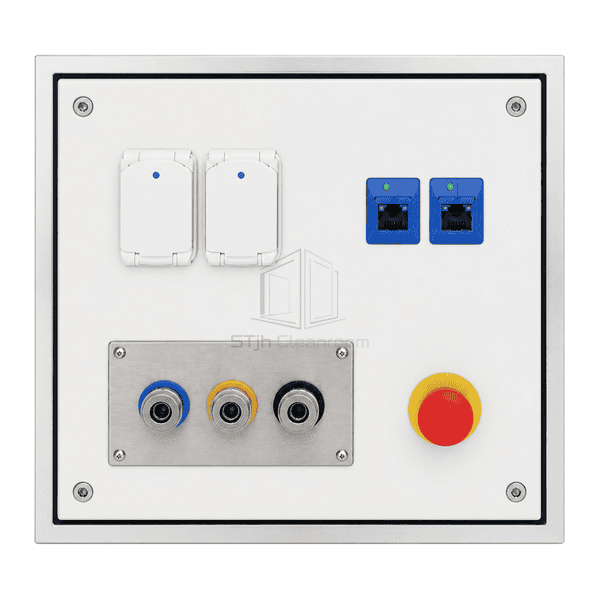

Integrated Multi-Service Outlets
Sealed Perimeter Frame

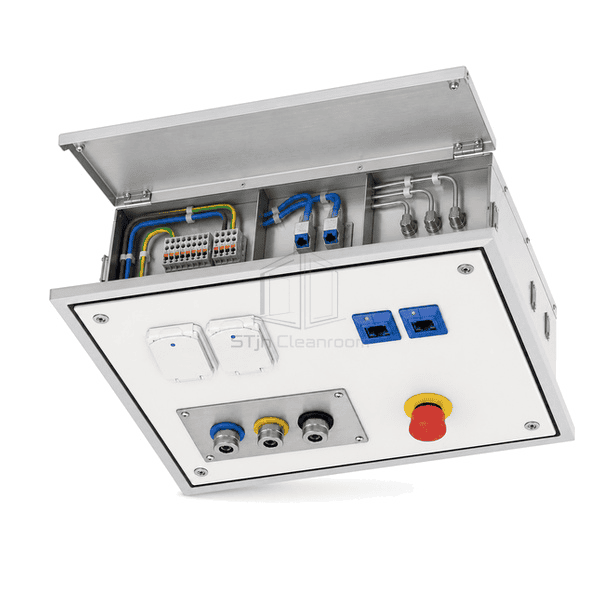

Top-Side Connection Access

Request a Quote Browse Products

Product Introduction

The ceiling service panel replaces a standard cleanroom ceiling tile with a reinforced metal interface carrying selected power, data, controls and quick-connect process outlets. Connections face downward in an organized pattern while all branch wiring and tubing terminate from the service void above. A gasketed frame closes the panel to the ceiling grid and removable top-side covers support maintenance outside the production area.

Key Features

A standard-module frame fits cleanly into the surrounding ceiling system.

Reinforcement spreads the weight of outlets and service drops across the panel.

Top-side terminations keep routine maintenance outside the occupied cleanroom.

Clearly separated connection groups reduce crossed hoses and cables.

A continuous perimeter gasket preserves the ceiling pressure plane.

Customer Product Concerns

Ceiling services must support connection loads and remain organized without turning multiple drilled penetrations into leakage points.

Separate cable and hose drops scatter across several ceiling tiles.One reinforced module consolidates the required point-of-use services.

Heavy connectors distort a thin sandwich-panel skin.An internal support frame transfers load to the ceiling grid or hangers.

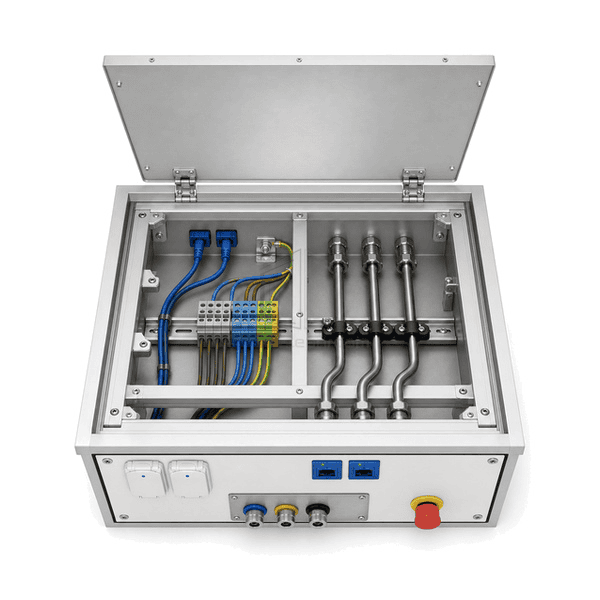

Maintenance ladders and tools must enter the production space.Top-side termination covers allow access from the technical plenum.

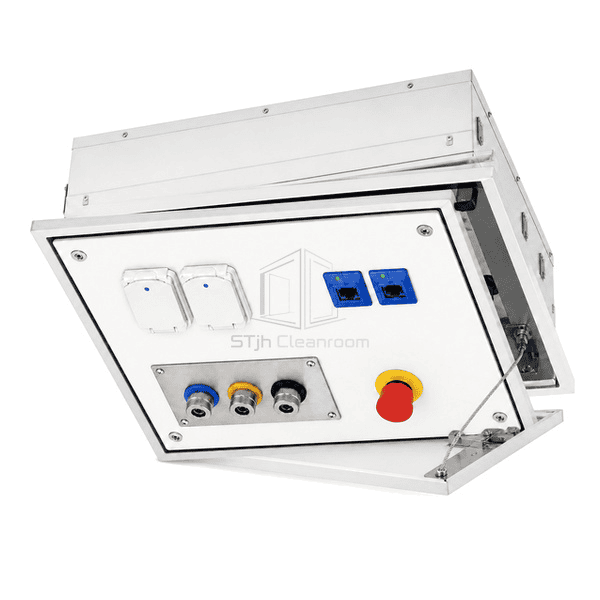

Numerous cutouts weaken the room pressure boundary.Factory-sealed fittings and one continuous perimeter gasket control every opening.

Typical Applications

Laboratory ceiling dropsProcess equipment islandsCleanroom assembly cellsFlexible utility distribution

Technical Parameters

Typical configurable construction ranges for a cleanroom ceiling service panel are listed below.

Core Material	SUS304/SUS316L or powder-coated steel interface plate with aluminum support frame, electrical/data modules and optional stainless tubing
Panel Thickness	40-100 mm complete reinforced ceiling-module depth
Effective Width	595-1200 mm nominal ceiling-grid width
Maximum Length	Up to 1200 mm panel length
Steel Facing Thickness	1.2-3.0 mm cleanroom-facing steel or stainless interface plate
Core Density	Approximately 2700 kg/m³ for the aluminum reinforcement frame
Thermal Conductivity	160-205 W/(m·K) for the aluminum support structure
Surface Finish	White powder-coated or fine-brushed stainless lower face with colored functional connectors
Joint Type	Gasketed ceiling-grid frame with factory-sealed outlet cutouts and top-side service termination cover
Customization	Available based on the intended application and operating environment.

Available Options

600 x 600 mm or custom modulePower, data, gas, air and vacuum connectionsPendant hose or cable dropsWalkable or non-walkable ceiling support
