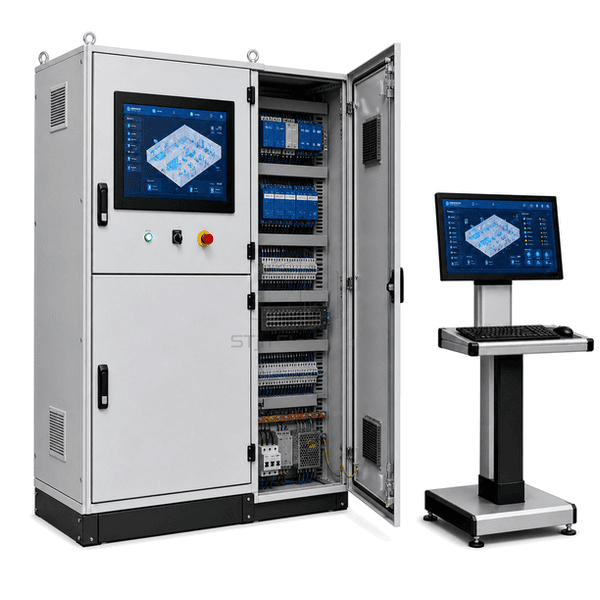

Complete cleanroom building management control cabinet and operator workstation in three-quarter view

Cleanroom Control and Environmental Monitoring Systems

Cleanroom Building Management System

A centralized building-management platform that combines cleanroom HVAC status, pressure cascades, environmental trends, alarms and utility data in one operator interface.

Unified Cleanroom Dashboard
Open Protocol Integration
Alarm and Trend Management
Multi-Zone HVAC Supervision

Request a Quote Browse Products

Product Introduction

The cleanroom BMS links field controllers, room sensors, meters and equipment interfaces through an industrial control network. Operator workstations present floor plans, live values, alarms, schedules and historical trends without forcing technicians to visit each panel. Pressure-critical rooms can be organized by suite, while AHUs, terminal airflow devices and utilities retain their own control loops. The system architecture supports segmented networks and role-based access so facility, engineering and quality teams can work from the same verified operating data.

Key Features

Graphical floor plans show live room conditions and equipment status by cleanroom zone.

BACnet, Modbus and OPC interfaces connect field controllers, sensors and third-party subsystems.

Time-stamped alarms and trends help operators trace excursions back to the affected asset.

Schedules, setpoint limits and energy dashboards coordinate occupied and standby operation.

Customer Product Concerns

A cleanroom campus needs one operational view without weakening the fast local control loops that maintain each pressure and airflow relationship.

Operators must check separate HVAC, room-pressure and utility screens.A unified workstation maps the subsystems into one room-by-room navigation structure.

Alarm floods hide the first condition that caused a cascade of warnings.Priority, delay, acknowledgement and event chronology separate initiating alarms from consequences.

Trend data from different controllers use inconsistent time references.Central time synchronization and historian collection align measurements on one timeline.

Unrestricted setpoint changes can destabilize validated room relationships.Role-based permissions and bounded setpoint commands limit changes to authorized operating ranges.

Typical Applications

Pharmaceutical cleanroom campusesBiotechnology production suitesMedical-device manufacturingSemiconductor controlled facilities

Technical Parameters

Typical construction values for the cleanroom BMS control cabinet and operator hardware are shown below.

Core Material	Powder-coated steel control enclosure with FR-4 controller boards and copper bus components
Panel Thickness	200-400 mm cabinet depth
Effective Width	600-1200 mm enclosure width
Maximum Length	Up to 2200 mm enclosure height
Steel Facing Thickness	1.2-2.0 mm powder-coated steel enclosure panels
Core Density	7800-8050 kg/m³ for steel structural parts
Thermal Conductivity	45-60 W/(m·K) for steel cabinet components
Surface Finish	Light-gray textured powder coating with labeled operator controls

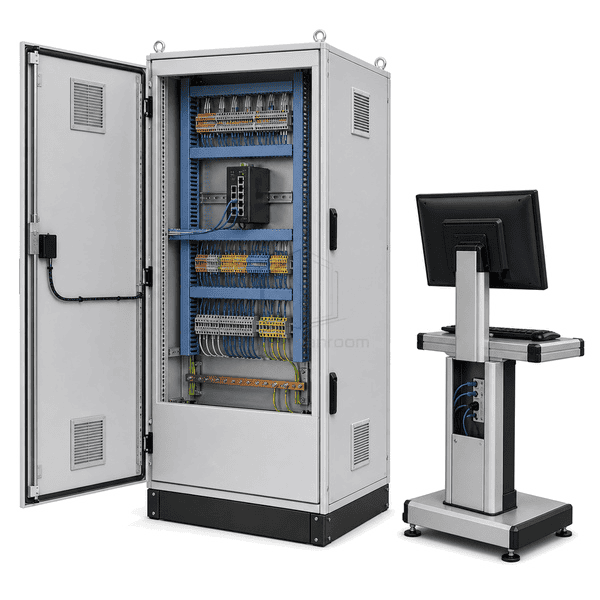

Joint Type	Gasketed modular cabinet with DIN-rail terminals and segregated network compartments
Customization	Available based on the intended application and operating environment.

Available Options

Redundant supervisory serverHistorian and reporting workstationBACnet and Modbus integrationWeb and mobile operator clients

Planning a Cleanroom Building Management System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
