Clean Steam Filter

A single-round 316L sanitary filter assembly that captures particulate contamination from clean steam through a removable sintered stainless-steel cartridge.

Single 316L sintered cartridge
Low-hold-up vented housing
Drainable sanitary interfaces

Request a Quote Browse Products

Product Introduction

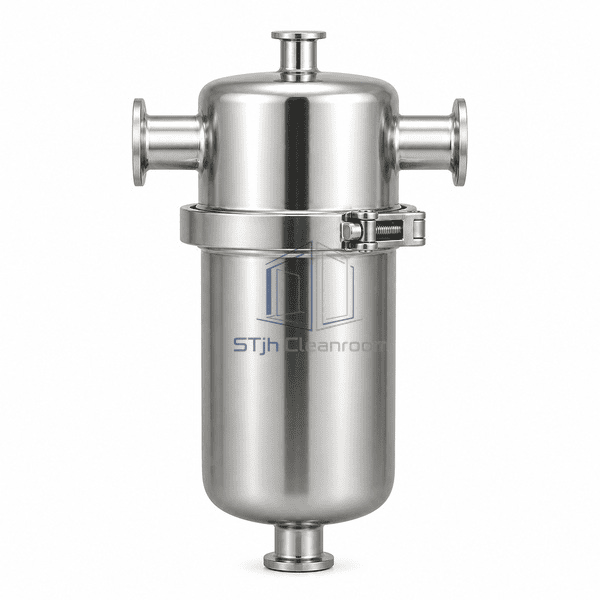

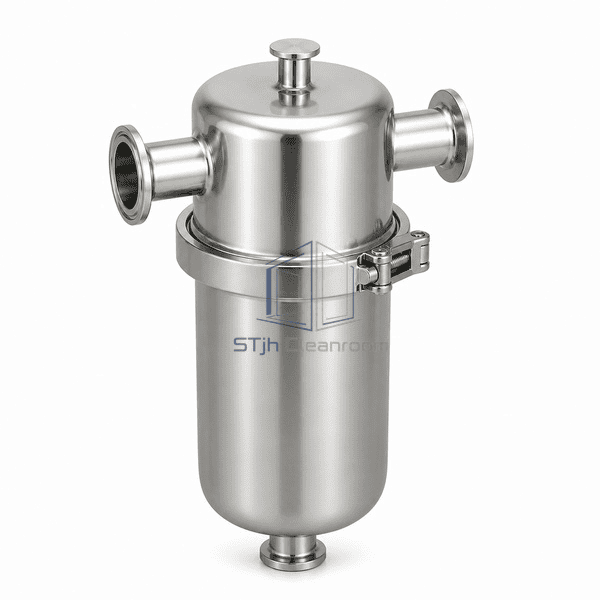

The Clean Steam Filter is an inline hygienic housing for final particulate control in clean-steam services feeding sterilizers, SIP circuits, humidifiers and sensitive process users. Steam enters the compact upper head, passes through one cylindrical sintered 316L cartridge and leaves through the opposing sanitary outlet while retained scale, weld residue and pipe-borne debris remain within the metallic depth structure. A clamp-secured two-piece housing permits direct cartridge access, and dedicated top-vent and bottom-drain connections help remove trapped air and condensate during start-up, shutdown and maintenance. The assembly filters solid particles; it is not a moisture separator, steam trap, pressure regulator or steam generator.

Key Features

Electropolished 316L single-round filter housing

One cleanable sintered 316L stainless-steel cartridge

Choice of conservative 1, 5 or 25 µm cartridge grades

Hinged sanitary clamp for cartridge access

Opposing inline Tri-Clamp steam connections

Separate top vent and vertical low-point drain

Metallic filter medium suitable for repeated cleaning

Compact housing geometry with low internal hold-up

Customer Product Concerns

Clean steam can acquire particulate contamination from generation and distribution surfaces, but the final filter must avoid excessive pressure drop, retained condensate and maintenance ambiguity.

Pipe scale or fabrication debris can reach a critical steam userInstall a selected sintered stainless cartridge immediately upstream of the user to retain the specified particle fraction without introducing fibrous media.

An undersized element creates avoidable pressure loss at peak steam demandSize the housing and micron grade from actual steam mass flow, pressure and allowable clean differential pressure rather than connection size alone.

Condensate held in the bowl can wet the element and disturb start-up flowUse the centered low-point drain and top vent to establish a controlled warm-up and drainage sequence for the installed orientation.

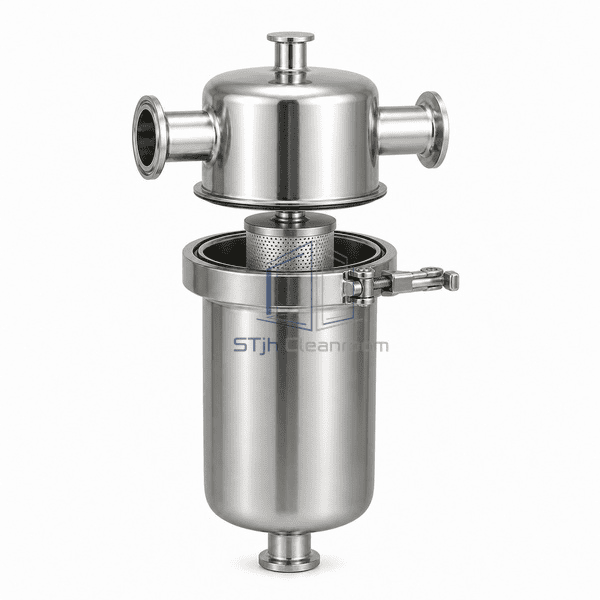

Cartridge inspection is delayed by complicated vessel disassemblyRelease the single hinged sanitary clamp to lift the compact head and withdraw the one-piece metal cartridge for inspection, cleaning or replacement.

Typical Applications

Clean steam supply to autoclaves and sterilizersSIP steam feeds for bioreactors and process vesselsControlled-environment clean-steam humidificationPharmaceutical equipment steam barriersFinal particulate protection upstream of hygienic steam users

Technical Parameters

The selected catalogue identity is a DN40 single-round housing with one 254 mm-class sintered cartridge. Final micron grade, steam capacity, seal compound, design pressure and connection standard are matched to the operating steam condition.

Core Material	316L stainless-steel housing with one sintered 316L stainless-steel cartridge and steam-service EPDM seals
Panel Thickness	Pressure-retaining bowl wall typically 2.0–3.0 mm for the selected single-round housing size
Effective Width	104 mm housing outside diameter in the selected DN40 single-round configuration
Maximum Length	538 mm overall height for the selected DN40 single-round configuration
Steel Facing Thickness	Perforated cartridge guard and end-cap stock typically 1.0–2.0 mm
Core Density	316L stainless steel density approximately 8000 kg/m³
Thermal Conductivity	316L stainless steel approximately 15 W/(m·K) at 20°C
Surface Finish	Internal contact surface electropolished to approximately 0.8 µm Ra; external surface polished and passivated
Joint Type	DN40 sanitary Tri-Clamp inlet and outlet, single hinged clamp housing closure, capped top vent and bottom drain
Customization	Available based on the intended application and operating environment.

Available Options

1, 5 or 25 µm sintered stainless cartridge gradeAlternative single-round housing and cartridge lengthsSanitary Tri-Clamp, weld-end or compatible hygienic connectionsHigher-temperature steam-service seal compoundsAlternative vent and condensate-drain valve arrangementsElectropolished internal and external surface finishesInsulation jacket for personnel protectionDifferential-pressure take-off connections
