Cleanroom Air Distribution Systems
Antistatic Flexible Duct Hose
A permanently antistatic polyurethane duct hose with an embedded steel helix for extracting dust, powder and fibers from sensitive production equipment.
- Permanently Antistatic Wall
- Abrasion-Resistant Polyurethane
- Embedded Spring-Steel Helix
- Flexible Equipment Connection
Product Introduction

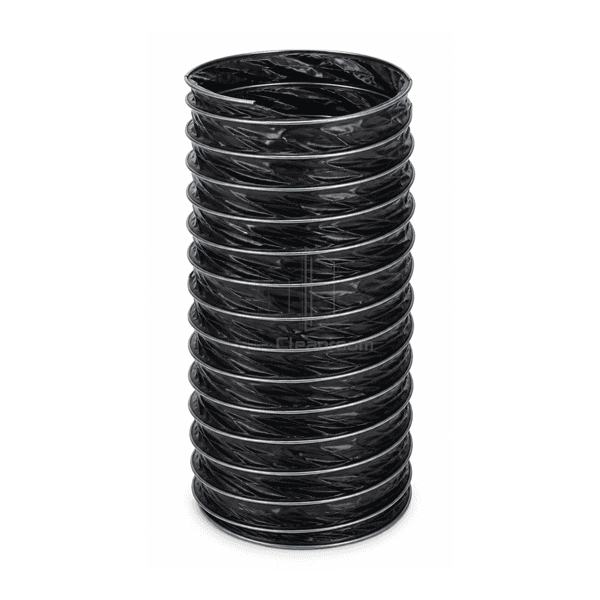

Antistatic flexible duct hose is designed for moving dry particles or process air where friction against an insulating hose wall could accumulate electrostatic charge. A conductive or permanently antistatic polyurethane wall is reinforced by an embedded spring-steel helix that can be electrically bonded at the connection. The smooth inner contour reduces particle deposits, while the flexible body follows movable extract arms and production equipment. Hose resistance, grounding method and material compatibility are selected for the conveyed media and area classification.
Key Features

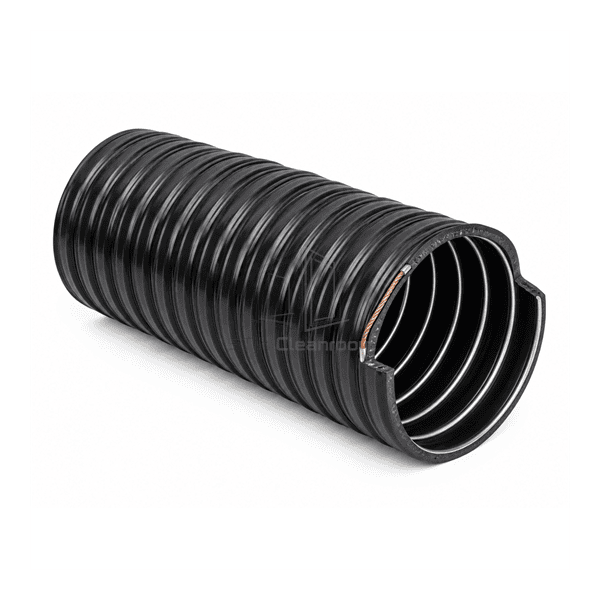

An embedded steel helix reinforces the bore and provides a defined bonding path at each end.
Abrasion-resistant wall material withstands dry powder and fiber extraction better than light fabric duct.

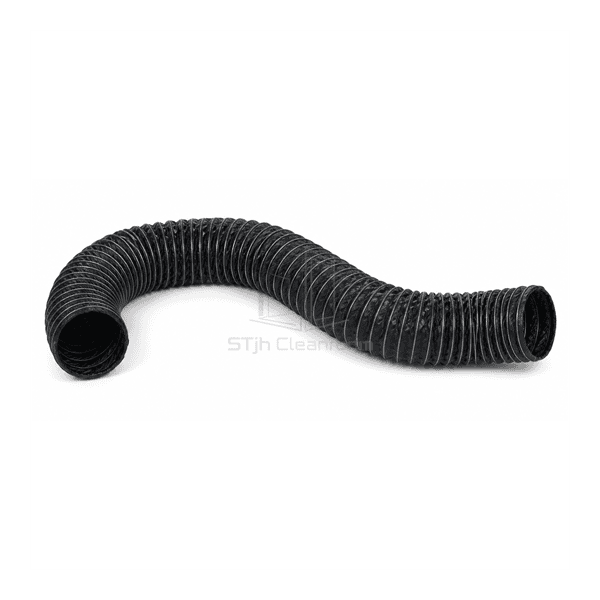

Flexible geometry accommodates moving pickup points and machine vibration without rigid elbows.
Customer Product Concerns
Static control requires both a suitable hose wall and a continuous electrical path through the fittings, clamps and equipment bonding network.
Dry powder flow charges an ordinary insulating hose surface.A permanently antistatic wall controls surface resistance throughout the hose material.
The hose is antistatic but its wire helix is not bonded at the machine connection.Conductive fittings and verified bonding connect the reinforcement to the facility grounding path.
A thin hose wears through at the outside of repeated bends.Abrasion-resistant polyurethane and a controlled minimum bend radius extend service life.
Powder accumulates inside deep corrugations and contaminates later batches.A flow-optimized inner wall and short routing reduce ledges and retained material.
Typical Applications
Powder-dispensing extractionTablet and capsule dust collectionElectronics production vacuum linesPackaging-machine local exhaustFiber and granule transfer air
Technical Parameters
Typical construction ranges for permanently antistatic flexible extraction hose are summarized below.
| Core Material | Permanently antistatic ether-polyurethane with embedded spring-steel helix |
|---|---|
| Panel Thickness | 0.7–1.5 mm hose wall, depending on duty |
| Effective Width | 40–400 mm nominal internal diameter |
| Maximum Length | 10000–15000 mm supplied coil length |
| Steel Facing Thickness | 1.0–3.0 mm embedded spring-steel wire diameter |
| Core Density | Approximately 1100–1250 kg/m³ polyurethane wall material |
| Thermal Conductivity | Approximately 0.20–0.30 W/(m·K) for polyurethane elastomer |
| Surface Finish | Smooth translucent or black antistatic polyurethane inner wall |

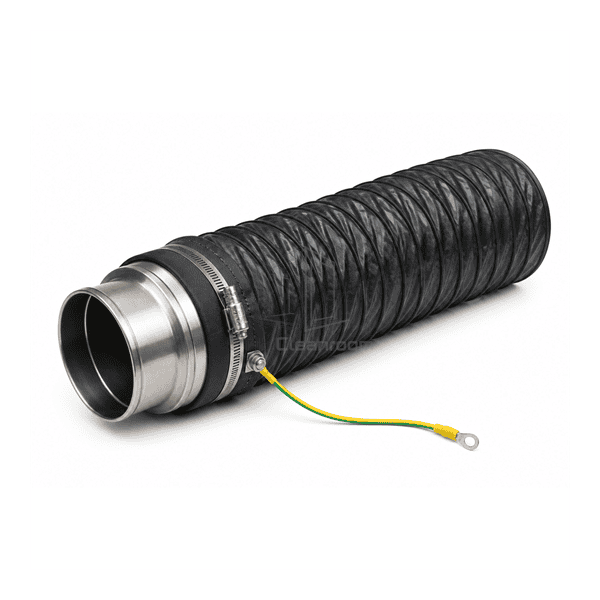

| Joint Type | Conductive cuff or spigot connection with bonded helix and stainless clamp |
| Customization | Available based on the intended application and operating environment. |
Available Options
Antistatic below 10⁹ Ω or electrically conductive gradeLight, medium or heavy wallFood-contact-compatible polyurethaneConductive cuffs, clamps and grounding leads
Planning a Antistatic Flexible Duct Hose specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
