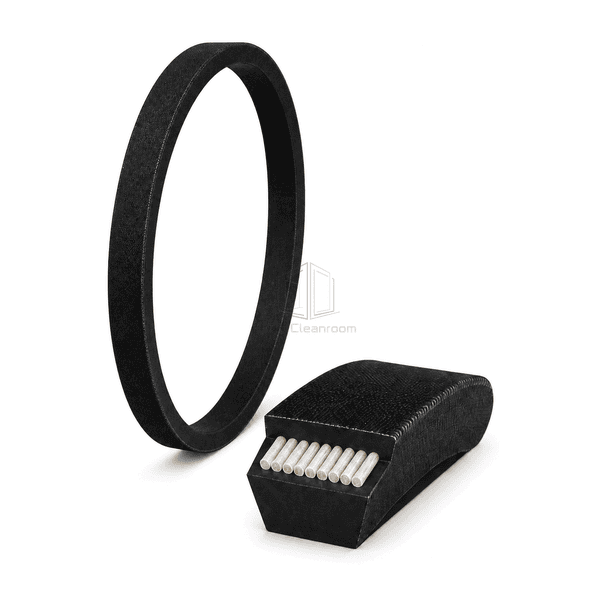

Three-quarter view of a complete black wrapped AHU fan V-belt with cutaway sample

Cleanroom Equipment Spare Parts

AHU Fan Belt

A fabric-wrapped classical V-belt for restoring matched torque transmission between an AHU fan motor pulley and blower sheave.

Wrapped V Profile
Reinforced Tension Cords
Matched Pulley Contact
HVAC Drive Replacement

Request a Quote Browse Products

Product Introduction

The AHU fan belt is an endless trapezoidal power-transmission belt used between the motor pulley and fan shaft sheave of a belt-driven air-handling unit. A resilient elastomer body transfers load through the pulley groove, longitudinal tension cords control stretch, and a fabric wrap protects the working surfaces from abrasion. Correct replacement depends on profile, datum or pitch length, matched-set tolerance, pulley condition and installation tension. A new belt should not be forced over a sheave and multiple-belt drives require a length-matched set rather than a mixture of new and worn belts.

Key Features

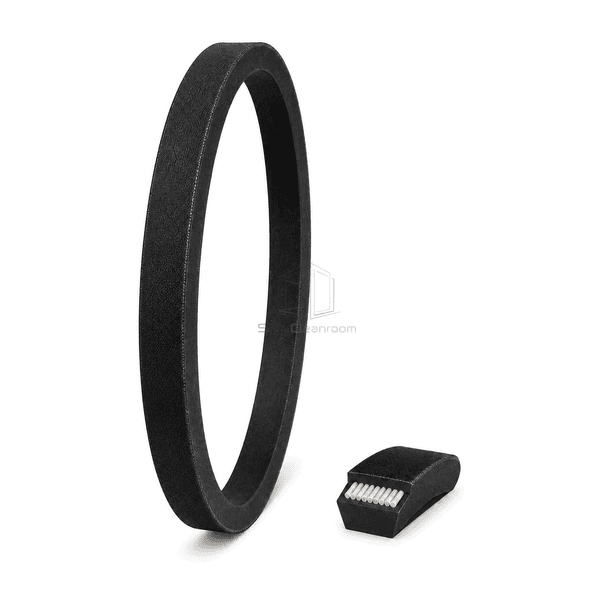

The trapezoidal section wedges into a corresponding pulley groove to transmit torque through controlled sidewall friction.

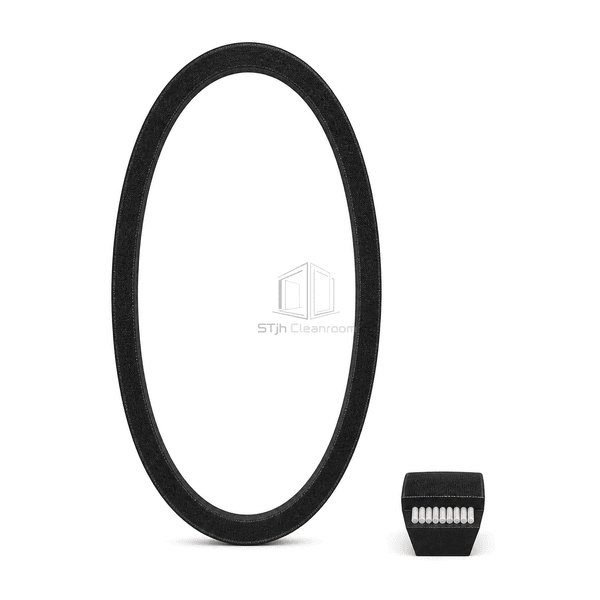

Longitudinal tensile cords limit elongation while repeatedly flexing around the motor and fan sheaves.

The wrapped fabric cover protects the belt flanks and outer surface against handling wear and repeated groove contact.

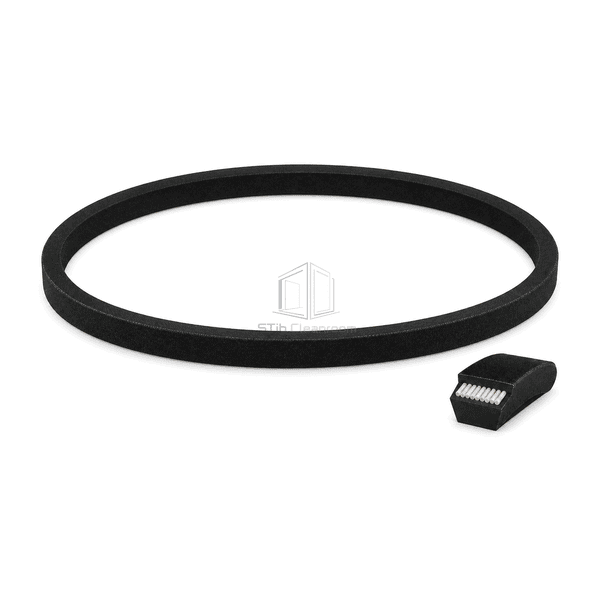

A continuous molded body avoids mechanical joints and supports even load transfer around the entire belt circumference.

Customer Product Concerns

Fan-drive reliability depends on selecting the exact section and effective length, then installing it on aligned pulleys at the specified tension.

A belt with the wrong cross-section rides too high or too low in the pulley groove and cannot transmit load correctly.Top width, section height and groove profile are matched to the existing sheaves before the replacement is supplied.

An incorrect effective length can leave too little adjustment for proper tension or overload the shaft bearings.The existing belt designation and measured drive geometry are used to select the appropriate datum or pitch length.

Replacing only one belt in a multi-groove drive causes unequal load sharing between old and new belts.Parallel drives are serviced with a factory-matched set of equal-length belts installed at the same time.

Pulley misalignment and excessive pretension accelerate flank wear, heat generation and vibration.The belt is paired with inspected, aligned sheaves and tensioned by the AHU maintenance procedure rather than levered into place.

Typical Applications

Belt-driven AHU supply fansReturn-air blower drivesCleanroom exhaust fan sectionsVentilation equipment replacement maintenance

Technical Parameters

Typical material construction and dimensional ranges for wrapped classical AHU fan V-belts are listed below.

Core Material	Synthetic-rubber compression body with polyester tension cords and woven fabric wrap
Panel Thickness	6-32 mm nominal belt section height, depending on profile
Effective Width	10-40 mm nominal top width, depending on classical V-belt section
Maximum Length	Up to 5000 mm nominal datum length for common AHU drive selections
Steel Facing Thickness	0 mm; nonmetallic wrapped belt construction
Core Density	Approximately 1100-1300 kg/m³ for reinforced rubber composite
Thermal Conductivity	Approximately 0.15-0.25 W/(m·K) for the rubber-fabric composite
Surface Finish	Matte black friction-resistant woven fabric wrap over all external belt faces
Joint Type	Continuous molded endless loop with trapezoidal sidewalls for V-grooved pulleys
Customization	Available based on the intended application and operating environment.

Available Options

Classical Z, A, B, C or D profileMatched multi-belt setAlternative effective lengthWrapped or raw-edge construction
