أبواب الغرف النظيفة ونوافذ وأنظمة التشابك
الزجاج المقسى باب غرف الأبحاث

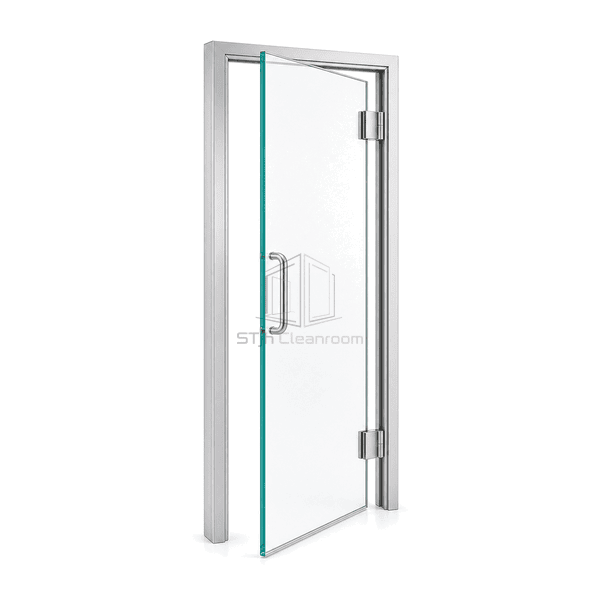

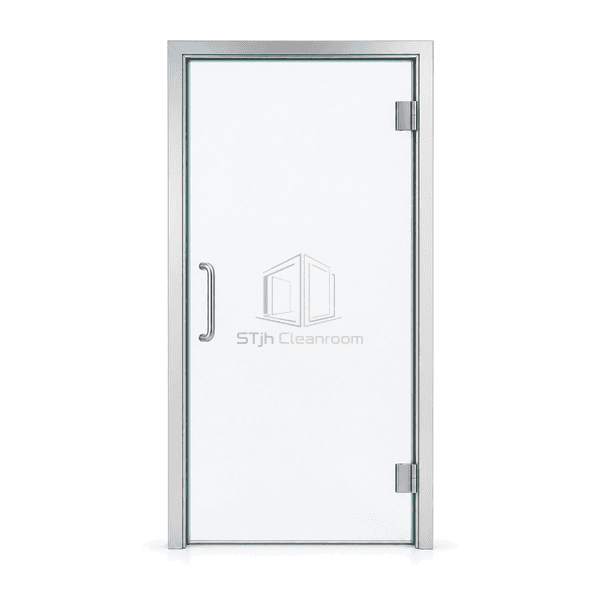

A transparent cleanroom doorset using a 10 mm toughened safety-glass leaf inside a stainless wrap-around frame for maximum observation, light transfer and simple wipe-down.
- Monolithic Safety-Glass Construction
- Maximum Room Visibility
- No Hollow Leaf Cavities
- Minimal Stainless Hardware
مقدمة المنتج

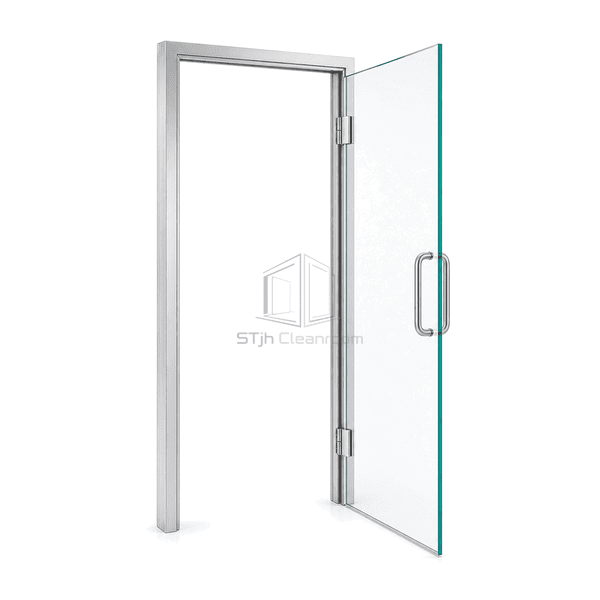

The Toughened Glass Cleanroom Door replaces a conventional opaque sandwich leaf with a single robust safety-glass panel. Purpose-designed stainless hinges, pull handles and a wrap-around frame support the glass while leaving most of the opening transparent. The flat monolithic leaf contains no panel seams or internal cavities and is therefore straightforward to inspect and wipe from both sides.
الخصائص الرئيسية
A monolithic glass leaf has no cladding seams, exposed core or face coating.
Toughened safety glass withstands higher service impact than ordinary annealed glazing.

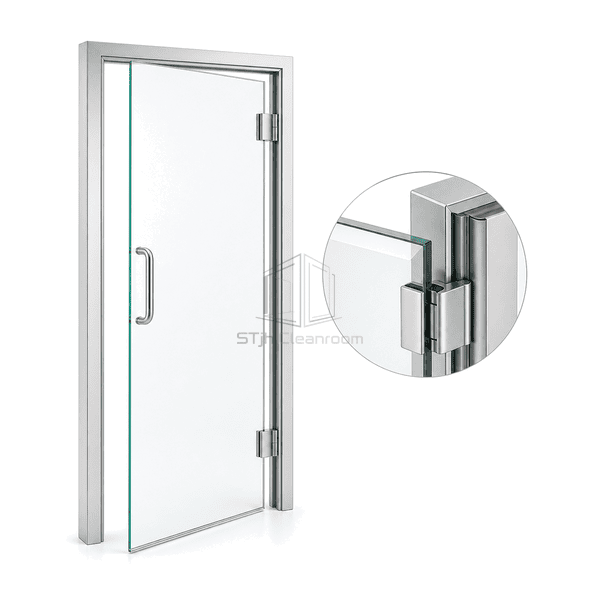

Purpose-built stainless hinges preserve a wide clear opening with few exposed fixings.
Tint, film or manifestation can provide privacy and collision visibility where required.
مخاوف المنتج للعملاء
Glass doors must provide useful visibility while controlling impact risk, privacy, hardware clutter and safe passage through a transparent opening.
Opaque doors force operators to open the room before checking occupancy or process status.A full glass leaf preserves a broad uninterrupted sightline through the closed doorway.
Framed glazed leaves create multiple beads and cleaning ledges.A single frameless toughened panel reduces the leaf to two flat wipeable faces.
Transparent doors can be difficult to perceive in busy circulation routes.Etched or printed manifestation bands make the glass boundary visible without blocking supervision.
Bulky surface closers interrupt the clean appearance of the glass.A concealed frame-mounted closer option removes the operating mechanism from the leaf face.
تطبيقات نموذجية
Research laboratoriesPharmaceutical observation routesHealthcare clean corridorsMedical research suitesBright personnel airlocks
المعلمات الفنية
Representative dimensions for a frameless toughened-glass cleanroom door are listed below.
| المواد الأساسية | Monolithic toughened safety glass with no separate core |
|---|---|
| سمك اللوحة | 10 mm toughened glass leaf |
| العرض الفعال | Up to 1250 mm single-door structural opening |
| الحد الأقصى الطول | 2500 mm maximum structural opening height |
| الصلب يواجه سمك | 0 mm steel facing; 10 mm solid glass forms the leaf |
| الكثافة الأساسية | Approximately 2500 kg/m³ solid soda-lime safety glass |
| الموصلية الحرارية | Approximately 1.0 W/(m·K) for monolithic glass |
| إنهاء السطح | Clear, tinted, etched or film-finished toughened safety glass |
| نوع المشترك | Frameless glass leaf on stainless hinges within a sealed wrap-around frame |
| التخصيص | متاح بناءً على التطبيق المقصود وبيئة التشغيل |
الخيارات المتاحة
Tinted or etched glassPrinted manifestation filmFlush maglock for interlocksElectric or hydraulic opener
Planning a Toughened Glass Cleanroom Door specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
