معدات تهوية وتكييف ومعالجة الهواء في الغرف النظيفة
وحدات مناولة الهواء
A section-built double-skin air handler that combines filtration, thermal treatment, fan and humidity-control functions in a serviceable cleanroom HVAC platform.
- Configurable Treatment Sections
- Thermal-Break Double Skin
- Low-Leakage Panel Joints
- Service-Friendly Access
مقدمة المنتج

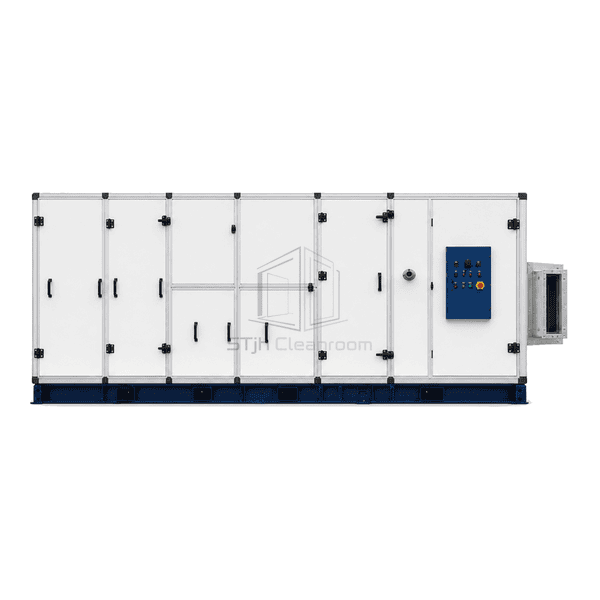

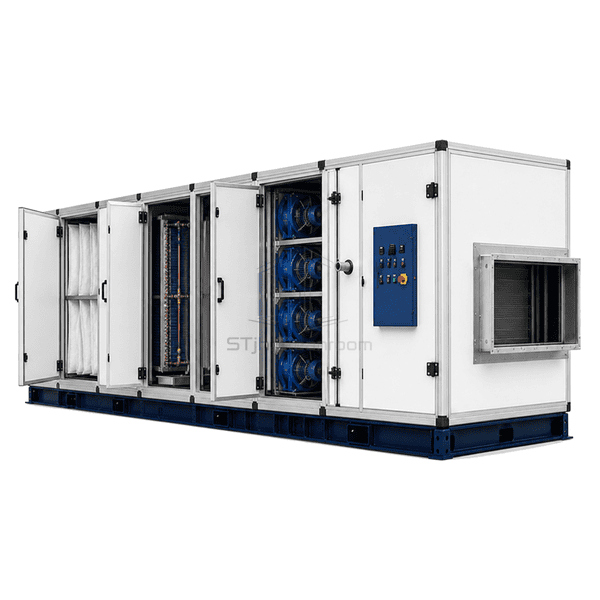

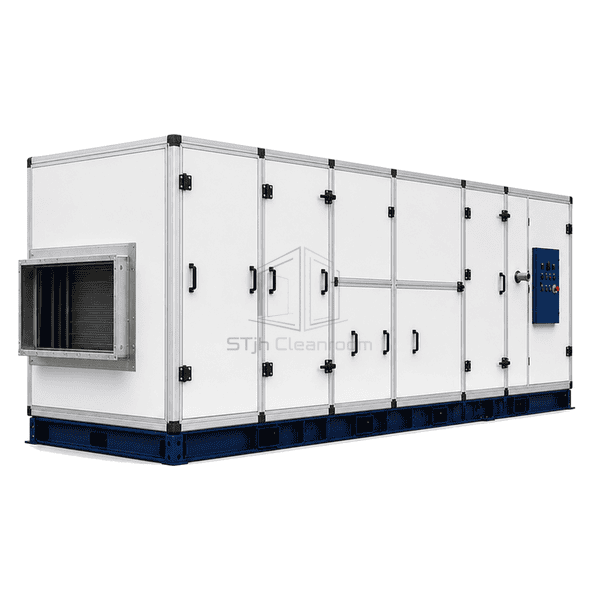

The modular air handling unit is assembled from matched casing sections around a rigid corrosion-protected frame. Filter banks, chilled-water or direct-expansion coils, heating coils, humidifiers, energy-recovery devices and plug-fan arrays can be placed in the required process order. Smooth internal panels and gasketed access doors support routine cleaning, while thermally separated skins limit condensation on the outer casing. Shipping splits allow large units to pass through plant-room access routes without sacrificing a continuous sealed air path after assembly.
الخصائص الرئيسية
Double-skin insulated panels reduce casing heat gain, radiated fan noise and surface condensation risk.

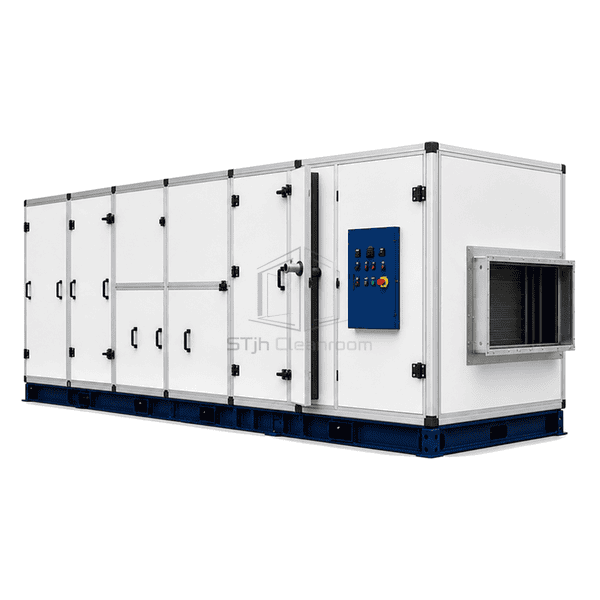

Gasketed block joints and access doors maintain a controlled air path while permitting component replacement.
Direct-drive plug fans or fan arrays provide stable airflow control without belts in the supply airstream.
مخاوف المنتج للعملاء
A cleanroom air handler must fit the building, deliver the scheduled treatment sequence and remain accessible without creating uncontrolled leakage paths.
A fixed factory package cannot accommodate the required filter, coil and humidifier sequence.Individual modules are arranged around the specified psychrometric process and pressure-drop budget.
Large equipment cannot pass through the available plant-room opening.Engineered shipping splits divide the casing into manageable sections with gasketed field block joints.
Cold casing bridges create condensation and staining around panel frames.Thermal-break profiles and continuous insulation separate the inner and outer metal skins.
Fan maintenance interrupts the entire cleanroom supply system.Multi-fan arrays can provide staged capacity and allow one fan position to be isolated for service.
تطبيقات نموذجية
Pharmaceutical cleanroom HVAC plantsBiotechnology production suitesMedical-device manufacturingElectronics cleanroomsLaboratory air-treatment systems
المعلمات الفنية
Typical construction ranges for a configurable cleanroom modular air-handling unit are listed below.
| المواد الأساسية | Rigid polyurethane foam or high-density mineral-wool insulation within double-skin casing panels |
|---|---|
| سمك اللوحة | 50–70 mm insulated double-skin casing |
| العرض الفعال | 1000–4000 mm nominal casing width |
| الحد الأقصى الطول | Up to 12000 mm assembled length using bolted shipping sections |
| الصلب يواجه سمك | 0.5–1.0 mm inner and outer sheet, selected by casing duty |
| الكثافة الأساسية | 40–45 kg/m³ polyurethane or 80–120 kg/m³ mineral wool |
| الموصلية الحرارية | 0.022–0.040 W/(m·K), depending on insulation material |
| إنهاء السطح | Powder-coated galvanized outer skin with galvanized or 304 stainless-steel cleanable inner skin |
| نوع المشترك | Thermal-break aluminum frame with compression-gasketed panel and block joints |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
Chilled-water, hot-water, steam or DX coilsPlug-fan array or single EC fan sectionBag, compact and terminal filter stagesHumidifier, dehumidifier and heat-recovery modules
Planning a Modular Air Handling Unit specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
