Z Fotômetro de Aerosol

A portable forward-light-scattering photometer for measuring aerosol concentration and locating penetration across installed HEPA and ULPA filtration systems.

Real-time aerosol penetration measurement for filter scans.
Controlled sample flow with automatic zeroing.
Portable interface for cleanroom validation teams.

Solicite um orçamento. Browse produtos

Introdução do produto

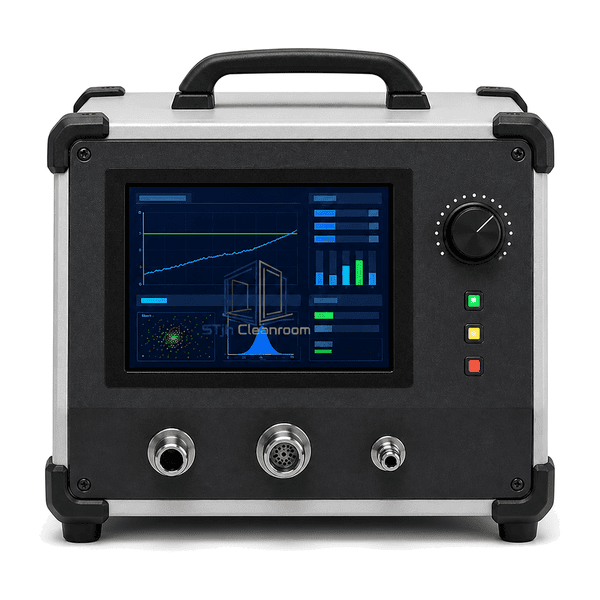

This aerosol photometer draws a controlled sample through a light-scattering chamber and reports challenge concentration or filter penetration in real time. Dedicated upstream, downstream and clear-flow connections support the complete integrity-test sequence, while a color interface presents the baseline, alarm threshold and live scan response. The rugged portable enclosure accommodates field validation work in cleanrooms, laboratories and containment facilities.

Características-chave

Forward light scattering provides continuous response across filter scan locations.

Automatic zero and upstream normalization reduce setup steps before scanning.

Regulated sample flow supports repeatable probe response and leak localization.

Selectable audible and visual alarms alert the operator at the chosen threshold.

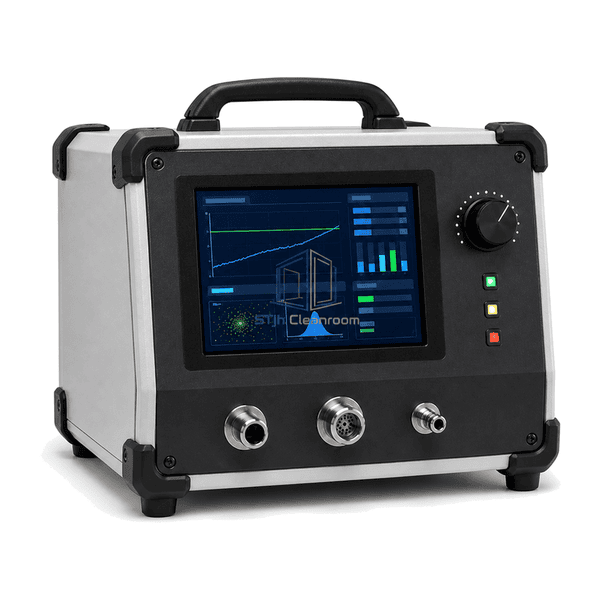

Dedicated upstream, downstream and clear ports organize the sampling sequence.

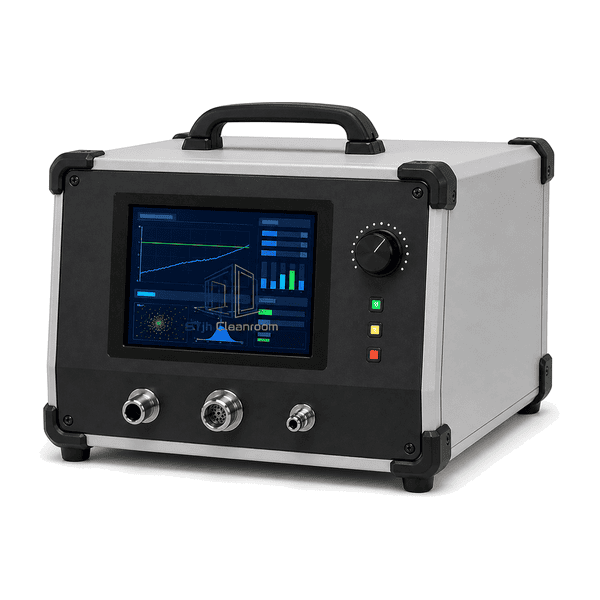

Portable enclosure and probe interface support room-to-room validation work.

Preocupações do produto do cliente

A dependable integrity scan requires stable sample flow, a clean zero reference and immediate indication of localized aerosol penetration.

Unstable sample flow can change response while the probe crosses the filter face.Closed-loop flow regulation maintains a defined sampling rate through the optical chamber.

Residual aerosol can delay zeroing between upstream and downstream measurements.A dedicated clear-air path purges the sample train and establishes the zero baseline.

Small penetration peaks may be missed during a long manual scan.A configurable alarm and peak indication draw attention to threshold excursions in real time.

Incorrect reagent response can bias concentration readings.Selectable response settings accommodate common PAO, DEHS, DOP and paraffin challenge liquids.

Aplicações típicas

Installed HEPA and ULPA filter integrity testingCleanroom and pharmaceutical HVAC qualificationCertificação do Gabinete de Segurança BiológicaContainment and nuclear ventilation filter testingLeak localization around filter media, frames and seals

Parâmetros técnicos

Common construction values for portable aerosol photometers are summarized below; optical range, flow control and data features vary with the selected configuration.

Material principal	Forward-scattering optical chamber, regulated sampling pump, reference filtration path and digital control electronics
Painel de espessura	Typically 1.0-2.0 mm for the protective enclosure panels
Largura efetiva	Approximately 240-320 mm depending on display and valve configuration
Comprimento máximo	Approximately 320-420 mm including sampling fittings and protective handle
Aço enfrentando espessura	Tipicamente 1,0 - 1,5 mm revestimento de aço inoxidável ou revestido em pó
Densidade Core	Approximately 7900-8000 kg/m³ for stainless sample-path and enclosure components
Condutividade térmica	Aproximadamente 14 - 17 W / (m · K) para componentes de caminho de amostra inoxidável
Superfície acabado	Light-gray powder-coated enclosure with dark bezel, color display and stainless sampling fittings

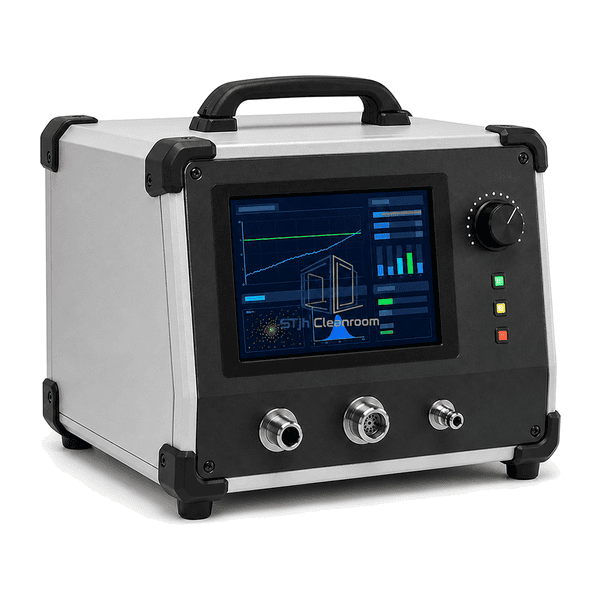

Tipo conjunto	Barbed or quick-connect upstream, downstream and clear sampling ports with locking probe connector
Customização	Disponível com base na aplicação pretendida e no ambiente operacional.

Opções disponíveis

Handheld isokinetic scanning probeProbe-mounted display and controlsSealed sample trainBattery or universal AC powerUSB data export and optional printerProtective transport case
