Cleanroom Cleaning, Disinfection and Sterilization

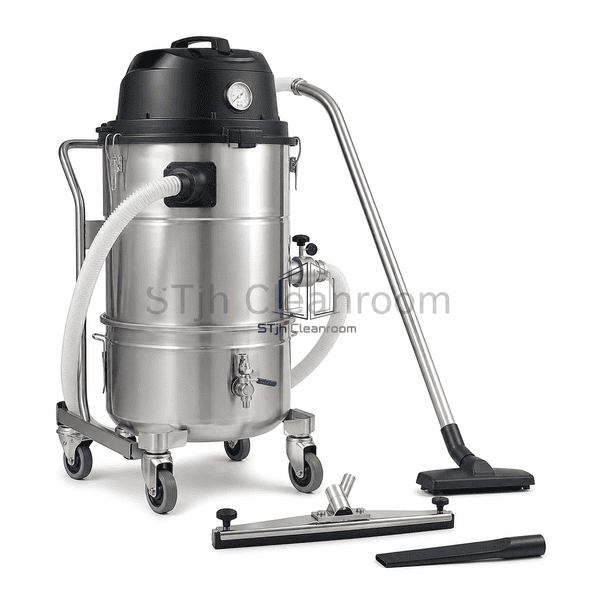

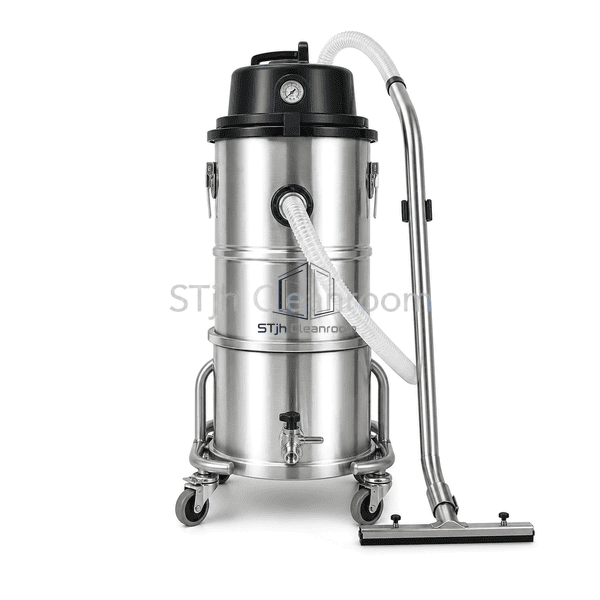

Wet and Dry Cleanroom Vacuum
Stainless-steel wet and dry cleanroom vacuum with liquid-overfill protection, removable recovery tank and sealed high-efficiency filtration.
- Combined wet and dry recovery
- Mechanical liquid-overfill protection
- Removable stainless-steel tank
Product Introduction
The Wet and Dry Cleanroom Vacuum recovers both dry particulate and nonflammable process liquids without changing the basic mobile platform. A smooth stainless-steel body and detachable tank support cleaning and controlled emptying. The wet pickup path incorporates a mechanical float to protect the motor, while upstream fine-dust filtration and a downstream HEPA or ULPA stage control particulate exhaust during dry use. A vacuum gauge allows operators to monitor filter loading.
Key Features

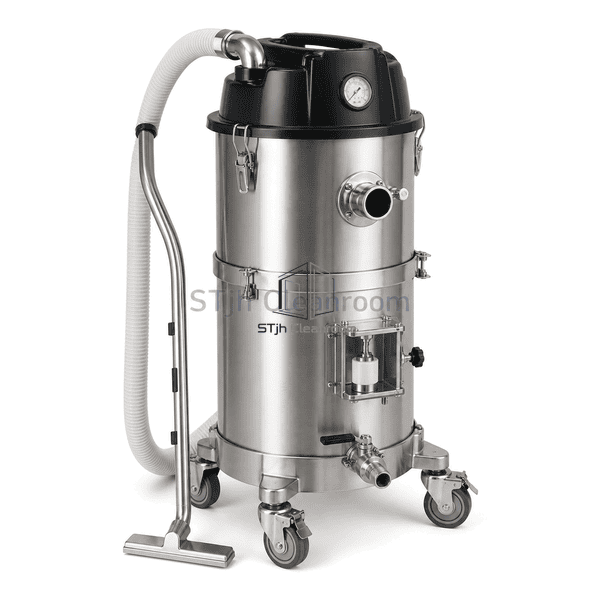

Mechanical float interrupts suction before liquid overfill.

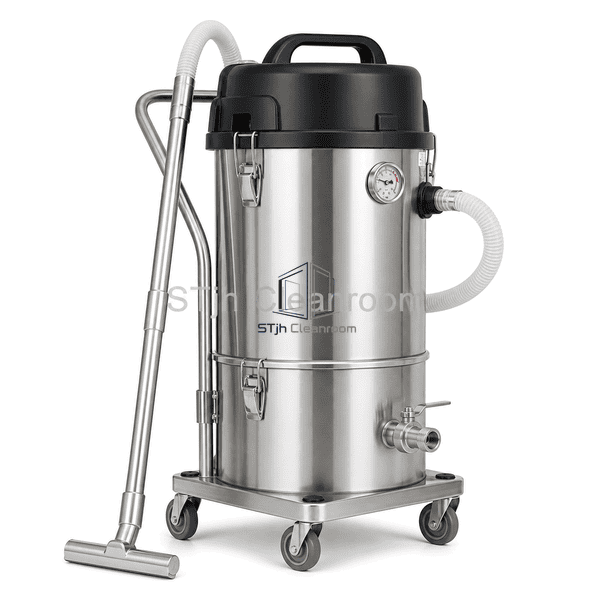

Removable stainless-steel tank simplifies draining and sanitation.
Upstream fine-dust and downstream high-efficiency filter stages.
Smooth cleanable exterior with compact mobile footprint.
Vacuum gauge indicates changing filter condition.
Customer Product Concerns
The unit addresses liquid overfill, tank sanitation, exhaust control and filter-condition visibility.
Liquid reaching the motorA mechanical float closes the suction path near the maximum liquid level.
Difficult tank cleaningThe removable stainless vessel can be drained, washed and inspected separately.
Fine dust in exhaustUpstream dust media and downstream high-efficiency filtration provide staged control.
Unexpected suction lossA vacuum gauge gives an immediate indication of filter restriction.
Typical Applications
Cleanroom liquid-spill responseDry housekeeping in pharmaceutical productionSemiconductor and microelectronics controlled areasEquipment washdown residue recoveryLaboratories requiring one mobile wet/dry unit
Technical Parameters
The following configuration supports controlled recovery of nonflammable liquids and dry particulate.
| Core Material | Type 304 stainless steel; Type 316L tank optional |
|---|---|
| Panel Thickness | 0.9–1.2 mm enclosure sheet thickness |
| Effective Width | 560 mm nominal body width |
| Maximum Length | 650 mm nominal body length, excluding hose |
| Steel Facing Thickness | 1.0 mm nominal recovery-tank wall |
| Core Density | 7900 kg/m³ nominal stainless-steel density |
| Thermal Conductivity | 15 W/(m·K) nominal for stainless-steel body material |
| Surface Finish | Brushed or electropolished stainless steel |
| Joint Type | Gasketed clamp closure with sealed hose coupling and drain valve |
| Customization | Available based on the intended application and operating environment. |
Available Options
H14 HEPA or U15 ULPA final filtrationType 304 or 316L recovery containerConductive or autoclavable hose and toolsDrain valve and disposable liner configurationsRegional voltage selection
