Water-Cooled Condensing Unit
A skid-mounted refrigeration package that transfers cleanroom DX cooling heat into a condenser-water circuit for quiet indoor mechanical-room installation.
- Compact Skid Package
- Water-Side Heat Rejection
- Low Indoor Sound
- Accessible Refrigerant Circuit
Product Introduction

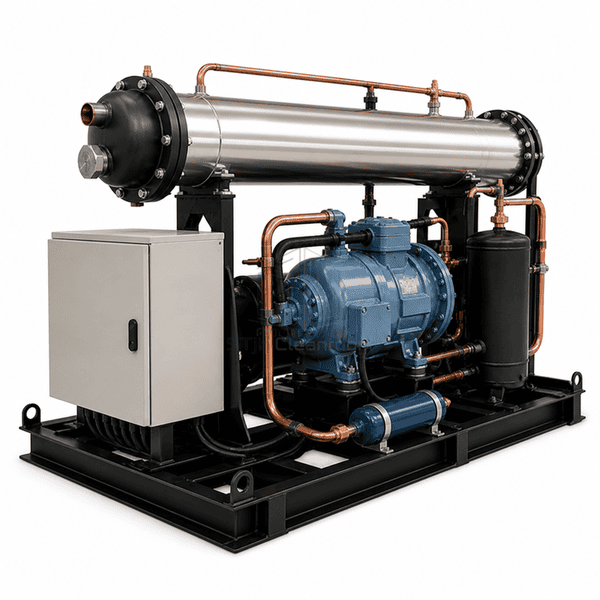

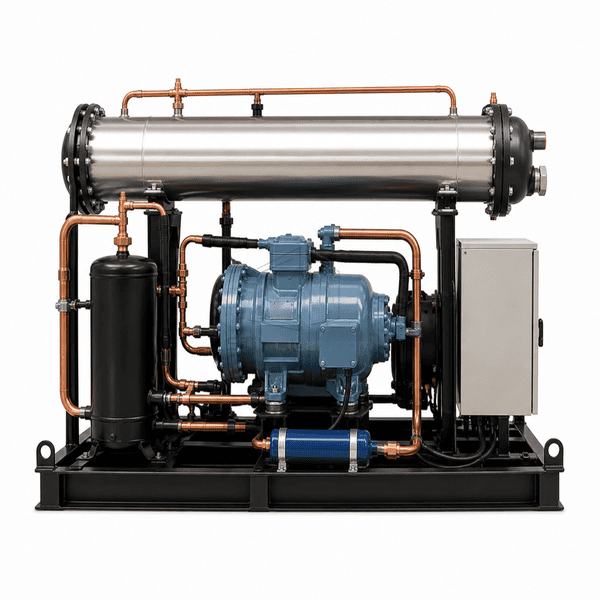

This water-cooled condensing package integrates a scroll compressor, shell-and-tube condenser, receiver, refrigerant accessories and electrical controls on one rigid base. Cooling water removes compressor heat through the condenser while liquid refrigerant feeds a remote DX air-handler coil. The absence of outdoor condenser fans reduces footprint and sound, making the format useful where a building condenser-water loop is already available.
Key Features

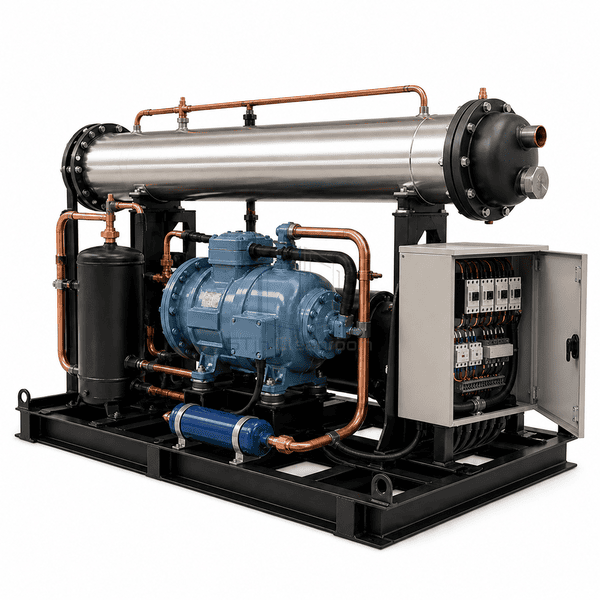

Skid piping includes receiver, filter-drier, sight glass and isolation points arranged for service access.
Compact compressor and control placement suits indoor plantrooms with restricted outdoor equipment space.

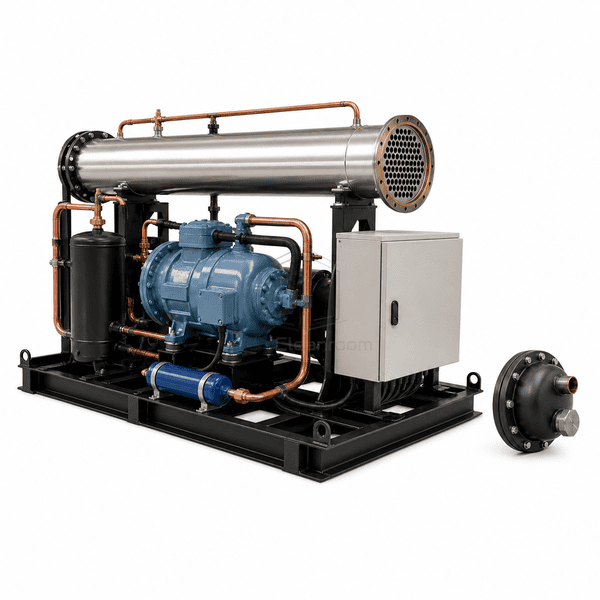

Removable water-box covers permit inspection of the condenser tube sheet and mechanical cleaning access.
Customer Product Concerns
An indoor condensing package must balance compactness, water-side serviceability and stable refrigerant delivery to a remote evaporator.
Outdoor equipment space or allowable sound is limited.The unit rejects heat to building water and operates without large condenser fans.
Condenser tubes gradually collect scale or suspended solids.A removable end cover provides direct tube-sheet access for inspection and cleaning.
Field-built refrigeration skids create inconsistent component layouts.Factory assembly places the compressor, receiver, controls and service valves on one tested structural base.
Variable condenser-water temperature can destabilize head pressure.Water-flow control and refrigerant safeties maintain an appropriate condensing range as the loop changes.
Typical Applications
Hospital cleanroom air handlersHigh-rise laboratory HVACPharmaceutical plants with central cooling towersIndoor process-cooling skidsNoise-sensitive clean manufacturing facilities
Technical Parameters
Typical construction data for a compact water-cooled cleanroom refrigeration skid are shown below.
| Core Material | Steel skid with scroll compressor and copper-tube steel-shell condenser |
|---|---|
| Panel Thickness | 1.0-1.5 mm electrical cabinet and equipment guard panels |
| Effective Width | 700-1600 mm typical skid width |
| Maximum Length | Up to 3200 mm for multi-circuit packages |
| Steel Facing Thickness | 1.2-2.0 mm control enclosure and removable guards |
| Core Density | Approximately 7800-7900 kg/m³ for carbon-steel skid and condenser-shell material |
| Thermal Conductivity | Approximately 45-55 W/(m·K) for carbon-steel condenser shell material |
| Surface Finish | Epoxy-painted steel base, coated cabinet and insulated suction piping |
| Joint Type | Welded skid, flanged water connections and brazed copper refrigerant joints |
| Customization | Available based on the intended application and operating environment. |
