Personnel and Material Decontamination Equipment

Walk-Through Shoe Sole Cleaner

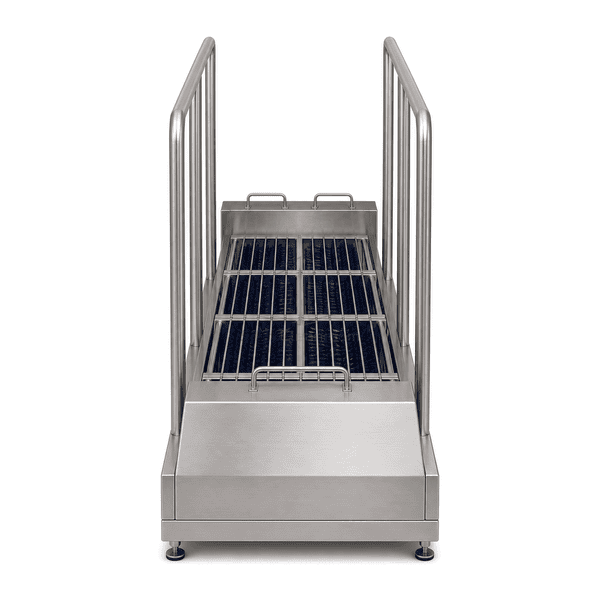

A walk-through stainless steel cleaner that uses rotating brush tracks to remove loose material from shoe soles during entry.

Full-sole brush track
Sensor-start drive
Controlled liquid application
Removable brush cassettes

Request a Quote Browse Products

Product Introduction

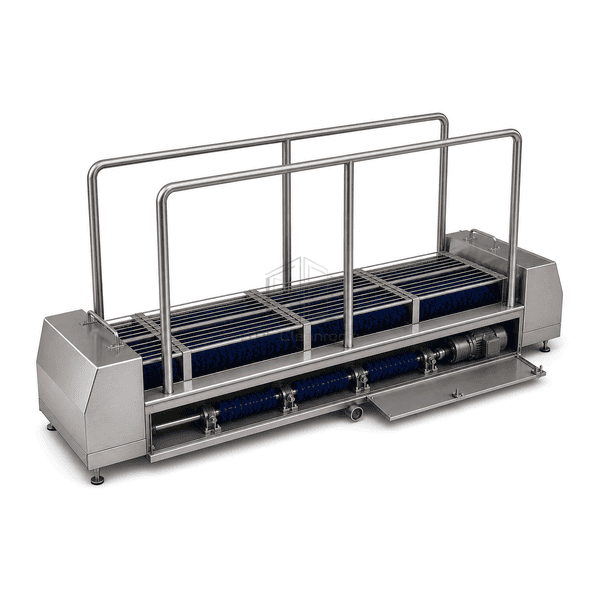

The Walk-Through Shoe Sole Cleaner places counter-rotating cylindrical brushes beneath a guarded entry track so users clean their soles while moving forward. A presence sensor can start the brush drive only for an occupied passage, and a regulated circuit can apply water or a compatible cleaning solution at the bristle zone. The stainless drip pan, brush cassettes and strainers are designed for routine access during cleaning.

Key Features

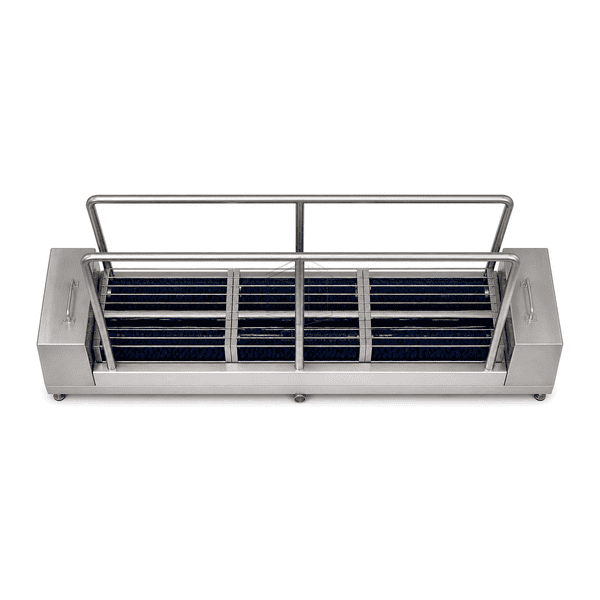

Brush rows contact heel, arch and toe areas as the user progresses through the track.

Presence sensing limits brush operation to occupied entry cycles.

A contained drip pan directs liquid and debris toward an accessible strainer.

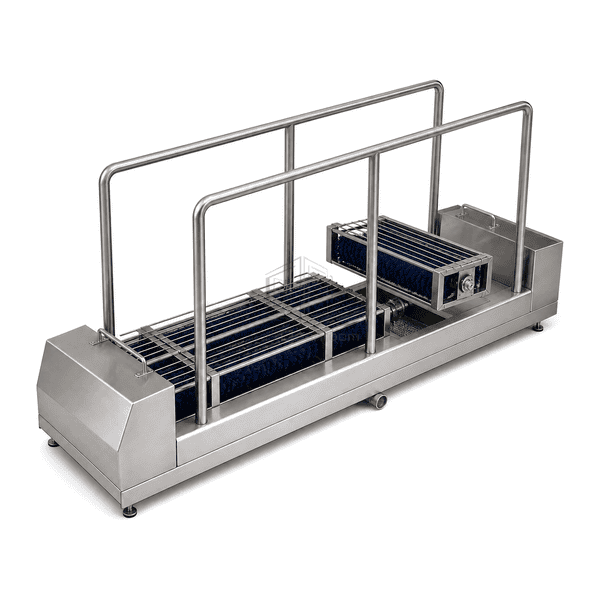

Quick-release cassettes let personnel remove brushes without dismantling the handrail.

Dry-brush configurations are available where liquid use is not required.

Customer Product Concerns

Shoe tread can retain loose debris in recessed patterns that a flat contact surface does not reach consistently.

Deep tread grooves remain dirty after contact with a flat mat.Rotating bristles mechanically reach into the tread pattern during the walk-through step.

Workers bypass a separate footwear station during busy entry periods.The brush track is positioned as part of the normal route to the controlled area.

Excess liquid makes the surrounding floor difficult to manage.Metered application and a contained drain pan keep liquid within the brush zone.

Fixed brushes make thorough sanitation of the wet zone time-consuming.Removable cassettes expose the pan and allow brushes to be cleaned separately.

Typical Applications

Cleanroom personnel entrancesFood production hygiene barriersPharmaceutical support areasMedical manufacturing changing roomsControlled packaging facilities

Technical Parameters

Brush-track length, liquid arrangement and handrail position can be chosen to suit the entry route and footwear type.

Core Material	Food-grade polypropylene brush cores in a welded SUS304 frame
Panel Thickness	1.5–2.0 mm stainless steel body panels
Effective Width	400–800 mm brush-track width
Maximum Length	1000–2200 mm overall track length
Steel Facing Thickness	1.5–2.0 mm SUS304
Core Density	900–1100 kg/m³ for polypropylene brush cores
Thermal Conductivity	0.10–0.22 W/(m·K) for polymer brush components
Surface Finish	Brushed SUS304 with hygienic welds and non-slip step surfaces
Joint Type	Continuous welded frame with removable sealed brush cassettes
Customization	Available based on the intended application and operating environment.

Available Options

Dry-brush configurationWater or compatible-solution applicationLeft or right handrailEntry-lane length extension
