Cleanroom Furniture and Stainless Steel Products
Stainless Steel Shelving
A four-level stationary shelving system with solid Type 316 stainless shelf pans, raised marine edges and adjustable Type 304 stainless posts for clean storage in demanding washdown areas.
- Four solid Type 316 shelf levels
- Raised marine-edge shelf pans
- 25 mm shelf-height adjustment
- Type 304 posts with leveling feet
Product Introduction

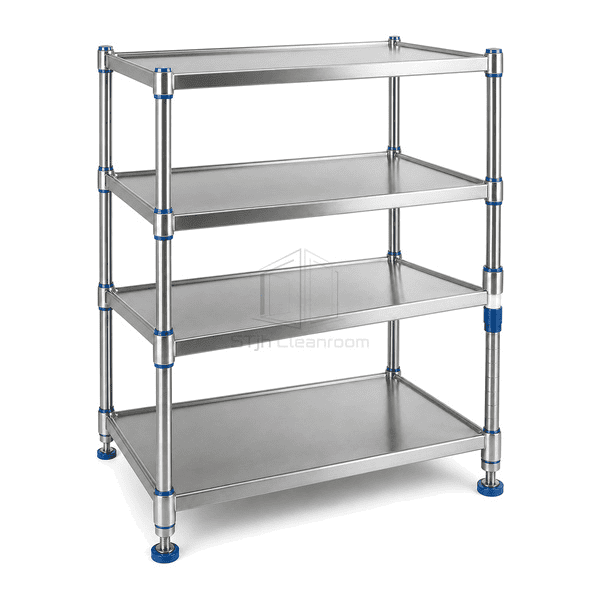

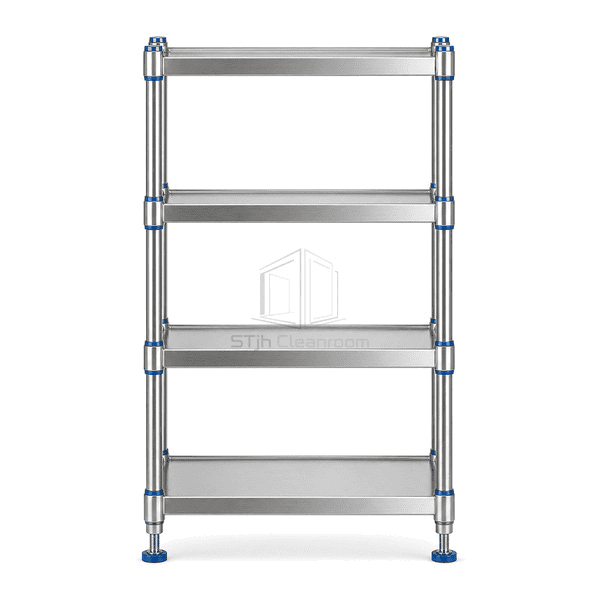

The stainless steel shelving unit combines four solid Type 316 shelf pans with Type 304 stainless tubular posts and adjustable leveling feet. Each shelf has a shallow raised marine edge that helps keep drips and small containers within the shelf footprint while leaving a broad uninterrupted surface for wipe-down. Tapered corner collars engage split sleeves on the posts, allowing each level to be repositioned in 25 mm increments without drilling the frame. Smooth formed corners, open sides and accessible undersides reduce concealed ledges and make every structural surface reachable during routine cleaning.
Key Features

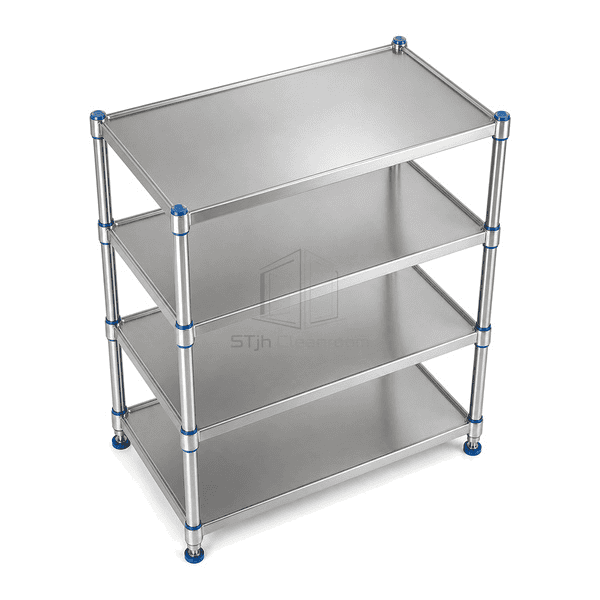

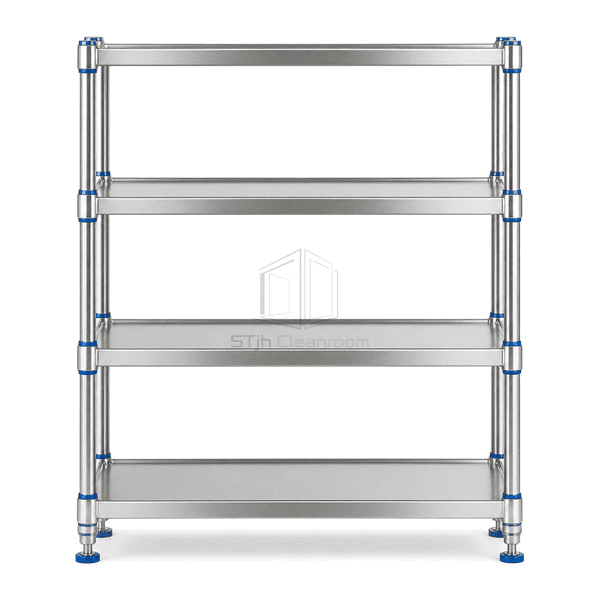

A shallow raised marine edge limits runoff without creating a tall front obstruction around boxes, trays or instruments.
Tapered corner collars lock onto post sleeves at 25 mm increments, so storage clearances can be changed without permanent fasteners.
Threaded stainless leveling feet stabilize the stationary rack while keeping the lowest shelf clear of the floor-cleaning zone.
Customer Product Concerns
Stationary clean storage needs smooth corrosion-resistant shelf surfaces, usable spill control and adjustable clearances without inaccessible cabinet cavities.
Wire shelves allow small vials, caps and drips to pass onto the level below.Four continuous solid pans provide uninterrupted support and shallow raised edges that keep small spills on the originating level.
Fixed shelf spacing wastes vertical capacity when stored containers change height.Split sleeves and tapered corner collars let each shelf move independently in 25 mm increments.
Harsh wet cleaning causes ordinary plated shelving to pit or shed finish.Type 316 shelf pans and stainless corners expose corrosion-resistant metal rather than a sacrificial coating.
Uneven floors leave tall storage units rocking during loading and cleaning.Four threaded leveling feet compensate individually while preserving an open, visible floor clearance.
Typical Applications
Cleanroom component and tray storageSterile-processing supply roomsWet laboratory consumable storagePharmaceutical support areasCorrosion-sensitive instrument holding
Technical Parameters
Typical configurable specifications for a four-level solid stainless cleanroom shelving unit are listed below.
| Core Material | Four solid Type 316 stainless shelf pans with raised marine edges, Type 304 stainless tubular posts, tapered corner collars and adjustable leveling feet |
|---|---|
| Panel Thickness | 1.2 mm formed solid shelf pans |
| Effective Width | 1220 mm overall shelving width |
| Maximum Length | 1830 mm maximum overall post height |
| Steel Facing Thickness | 1.2 mm Type 316 stainless shelf surfaces with 1.5 mm Type 304 stainless post walls |
| Core Density | 7980–8000 kg/m³ for Type 316 stainless shelf pans |
| Thermal Conductivity | 14–16 W/(m·K) for Type 316 stainless steel |
| Surface Finish | Uniform polished Type 316 shelf pans with brushed Type 304 posts and natural stainless corner collars |
| Joint Type | Tapered shelf corner collars locked to split post sleeves at 25 mm increments, with threaded stainless leveling feet |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 304 solid shelf packageTwo to six shelf levelsPerforated shelf pansStainless side and rear ledges
Planning a Stainless Steel Shelving specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
