Cleanroom Doors, Windows and Interlock Systems

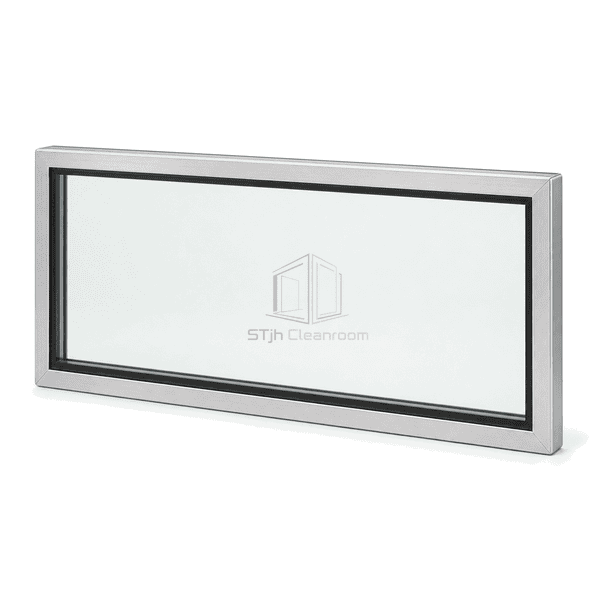

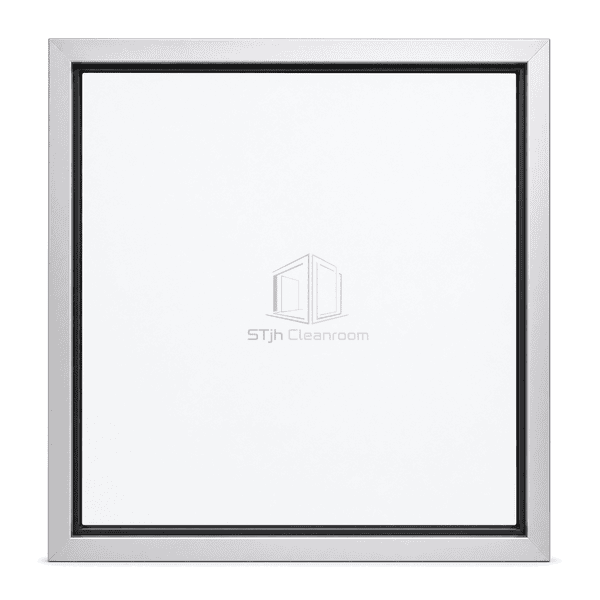

Single-Glazed Cleanroom Observation Window
A slim fixed observation window using one clear tempered safety-glass pane in a sealed aluminum or stainless-steel frame for interior cleanroom partitions.
- Single Tempered Pane
- Slim Hygienic Frame
- Clear Process Visibility
- Sealed Fixed Glazing
Product Introduction
This single-glazed observation window provides direct sightlines through an internal cleanroom wall without the deeper cavity of an insulated unit. The pane is retained in a rigid subframe with continuous glazing seals, and the exposed frame edges are kept smooth for routine wiping. Its shallow build suits low-thermal-load interior partitions, equipment observation points and retrofit openings where pressure separation is moderate and a simple fixed pane is preferred.
Key Features

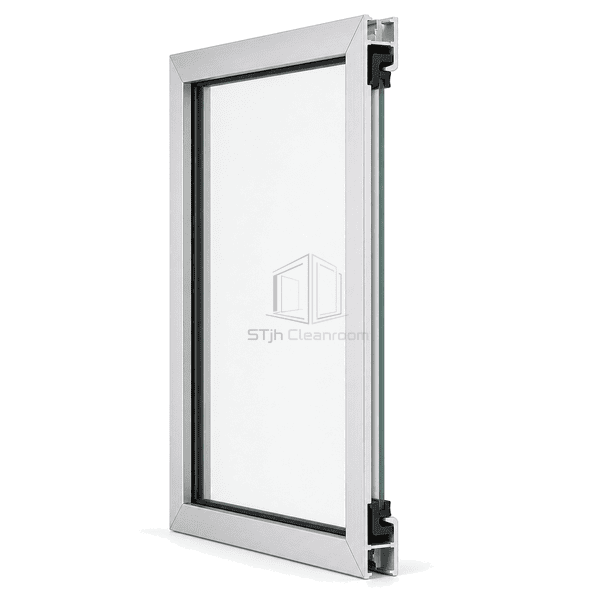

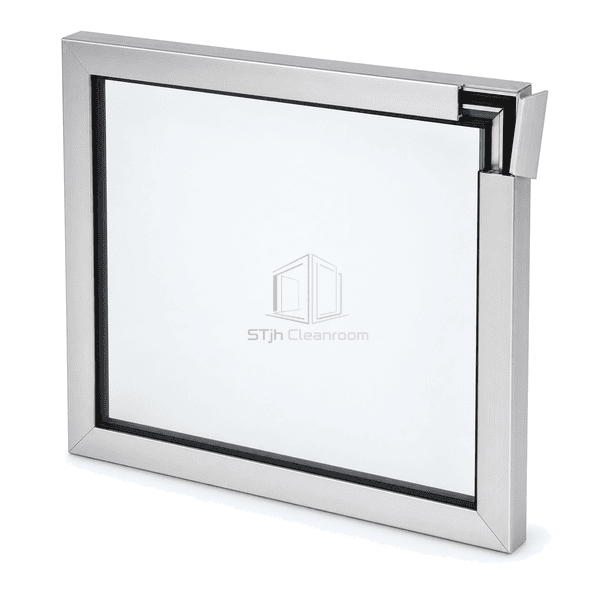

Continuous glazing tape or structural silicone closes the glass-to-frame perimeter against air and particle leakage.
A narrow anodized or powder-coated frame preserves a wide clear viewing area in compact wall openings.
Factory-cut glass and finished edges provide a stable fixed pane without exposed clips on the clean side.
Customer Product Concerns
A single-pane window must remain cleanable and mechanically secure while avoiding the ledges and exposed retainers found on general-purpose glazing.
Surface-mounted glazing beads create narrow ledges that retain cleaning residue.The pane sits within a purpose-built cleanroom frame with smooth sealed reveals and no loose exposed clips.
A thin pane can rattle when doors close or room pressure changes.Continuous resilient glazing seals support the pane on all sides and maintain controlled compression.
A bulky double-glazed frame consumes valuable clear opening in a small partition.The single-pane construction uses a shallower perimeter profile and leaves more usable sight area.
Typical Applications
Interior cleanroom corridorsLaboratory observation partitionsEquipment enclosure viewing pointsLow-pressure personnel airlocks
Technical Parameters
Typical construction ranges for an interior single-glazed cleanroom observation window are listed below.
| Core Material | Single clear tempered safety-glass pane in an aluminum or stainless-steel subframe |
|---|---|
| Panel Thickness | 6–12 mm glass thickness; typically 25–60 mm overall frame depth |
| Effective Width | 300–1500 mm clear viewing width |
| Maximum Length | 2400 mm overall window height |
| Steel Facing Thickness | 1.0–1.5 mm for stainless-steel frame skins; 0 mm for all-aluminum frames |
| Core Density | Approximately 2500 kg/m³ for soda-lime safety glass |
| Thermal Conductivity | Approximately 1.0 W/(m·K) for clear soda-lime glass |
| Surface Finish | Clear anodized or powder-coated aluminum; brushed 304/316 stainless steel optional |
| Joint Type | Fixed single glazing with continuous EPDM glazing tape or neutral-cure structural silicone |
| Customization | Available based on the intended application and operating environment |
Available Options
6, 8, 10 or 12 mm tempered glassLow-iron or laminated safety glassAnodized aluminum or stainless-steel frameRectangular and narrow vertical formats
Planning a Single-Glazed Cleanroom Observation Window specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
