Cleanroom Flooring Systems
Seamless Epoxy Terrazzo Flooring
A thin-set epoxy terrazzo system combining a coloured resin binder with selected mineral aggregates before grinding and polishing into a dense continuous surface.
- Joint-Free Terrazzo Field
- Custom Aggregate Blend
- Ground and Polished Finish
- Heavy-Traffic Surface
Product Introduction

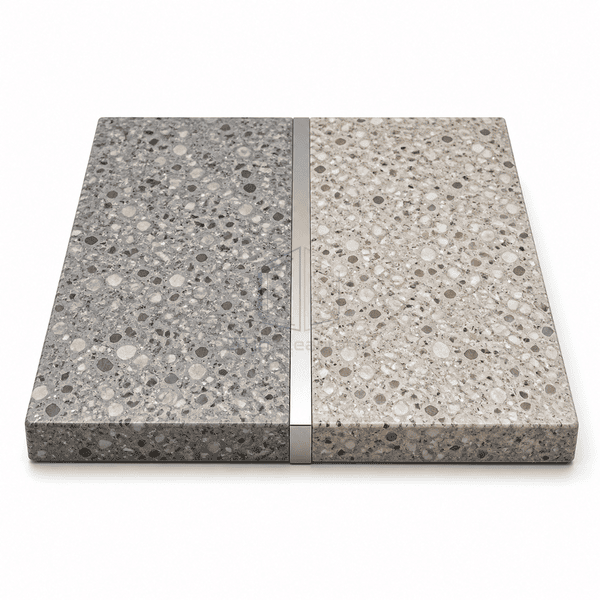

Seamless epoxy terrazzo flooring is installed as a thin resin-and-aggregate mortar over a prepared substrate. Pigmented epoxy binds marble, granite or selected decorative chips into a uniform layer that is mechanically ground, pore-filled and polished after curing. Divider strips can separate colours or define manageable placement fields without introducing open tile joints. The resulting floor is suited to controlled interiors that require a durable, low-maintenance finish with more visual depth than a single-colour resin coating.
Key Features
Grinding and pore filling close the trowelled surface and produce a consistent matt, satin or gloss presentation.
Colour, chip size and divider layout can identify routes or room boundaries without applied floor graphics.
The 6–11 mm thin-set build-up reduces transition height compared with traditional thick cement terrazzo.
Customer Product Concerns
A decorative controlled-area floor must remain continuous and serviceable while accommodating heavy traffic, colour zoning and cleaning routines.
Grouted tile grids create repeated lines that collect soil and complicate machine cleaning.The epoxy and aggregate are placed as a continuous mortar field with only planned divider and movement lines.
A plain monochrome coating does not support wayfinding or public-facing cleanroom areas.Pigmented binder, selected chips and metal divider strips create durable colour zones within the floor body.
Soft decorative finishes lose clarity under concentrated pedestrian and trolley traffic.A dense mineral-filled wearing layer is ground and sealed to withstand routine abrasion.
Inconsistent site mixes cause shade and aggregate distribution to vary between pours.Defined resin-to-aggregate ratios and controlled placement fields keep adjacent batches visually coordinated.
Typical Applications
Pharmaceutical research corridorsHealthcare controlled-area lobbiesCleanroom reception and gowning zonesLaboratory circulation areasHigh-traffic technical facility entrances
Technical Parameters

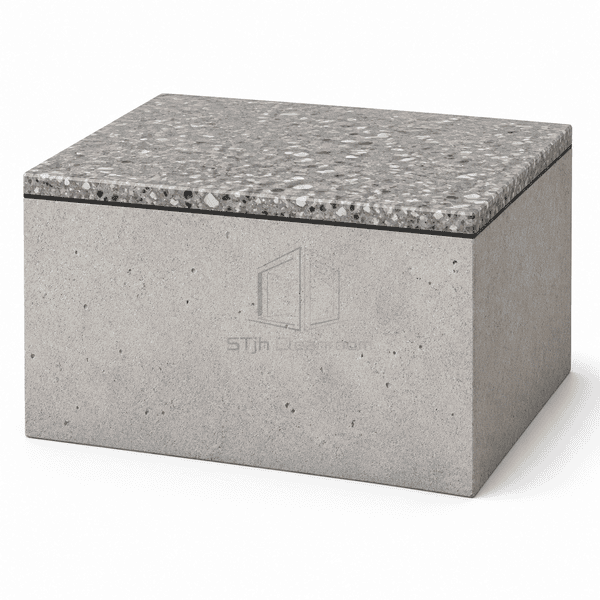

Typical build-up data for a thin-set epoxy terrazzo floor with a mineral aggregate wearing layer are shown below.
| Core Material | Pigmented two-component epoxy binder with marble, granite or selected decorative aggregate |
|---|---|
| Panel Thickness | 6–11 mm nominal installed terrazzo system thickness |
| Effective Width | 1000–3000 mm typical working-bay width during placement |
| Maximum Length | Up to 8000 mm typical decorative field length between movement joints |
| Steel Facing Thickness | 0 mm; the terrazzo wearing layer does not use a steel facing |
| Core Density | Approximately 2400–3200 kg/m³ for the cured epoxy-mineral composite |
| Thermal Conductivity | Approximately 0.32–0.39 W/(m·K) for a 9–11 mm epoxy terrazzo build-up |

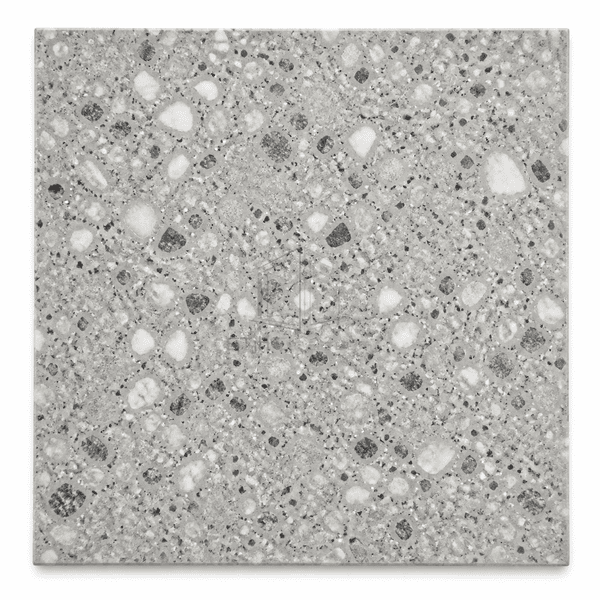

| Surface Finish | Mechanically ground and polished matt, satin or gloss finish with sealed pores |

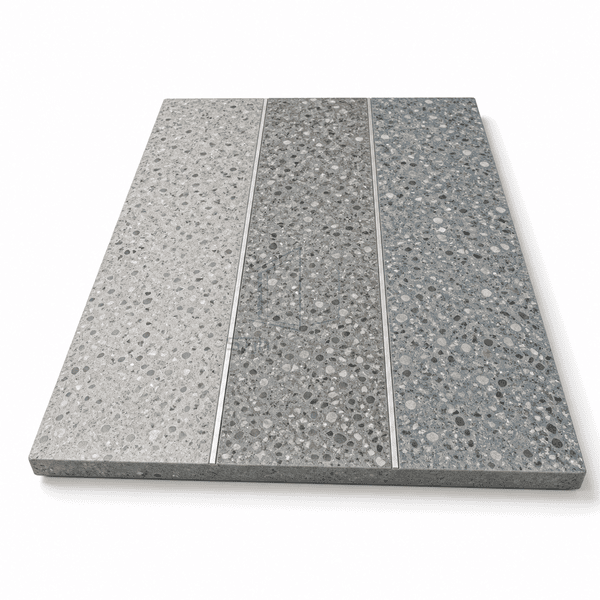

| Joint Type | Continuous trowel-applied field with optional metal divider strips and substrate movement joints carried through |
| Customization | Available based on the intended application and operating environment. |
Available Options
Custom epoxy binder coloursMarble, granite or recycled glass aggregate blendsAluminum, brass, zinc or coloured divider stripsMatt, satin or high-gloss polishing schedule
Planning a Seamless Epoxy Terrazzo Flooring specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
