Cleanroom Drainage, Hygiene and Safety Equipment
Sanitary Floor Drain

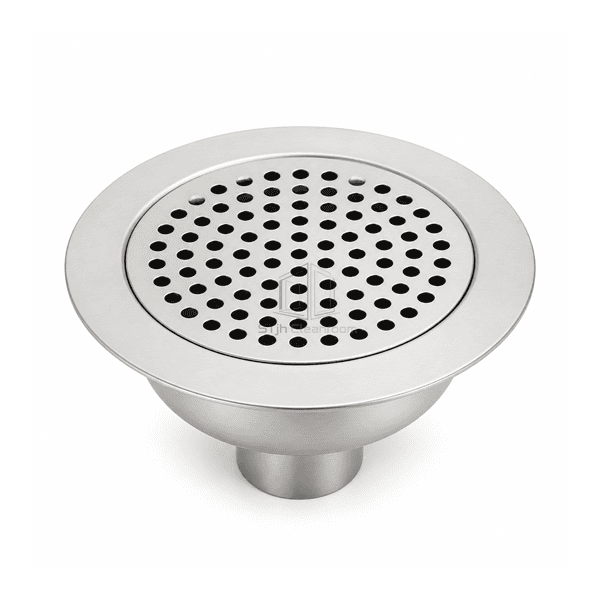

Smooth-bore sanitary drain with a hygienic grate, radiused bowl and removable waste basket for frequent wet cleaning.
- Smooth Radiused Sump
- Tool-Free Service Access
- Removable Waste Basket
- Optional Odor Trap
Product Introduction

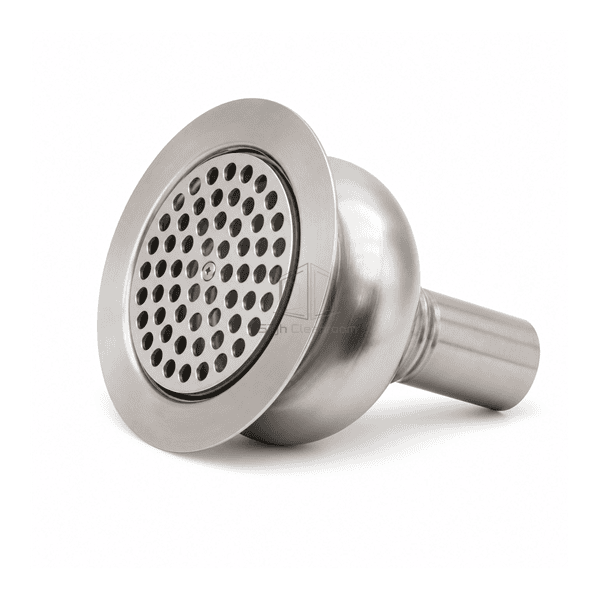

The sanitary floor drain combines a formed stainless bowl, welded floor flange and removable top assembly for hygiene-controlled wet areas. Openable internals expose the sump and basket for inspection, while a sloped bowl directs water toward the selected outlet. Top dimensions, outlet orientation and flange profile can be matched to the finished floor without adding unnecessary exposed fasteners.
Key Features

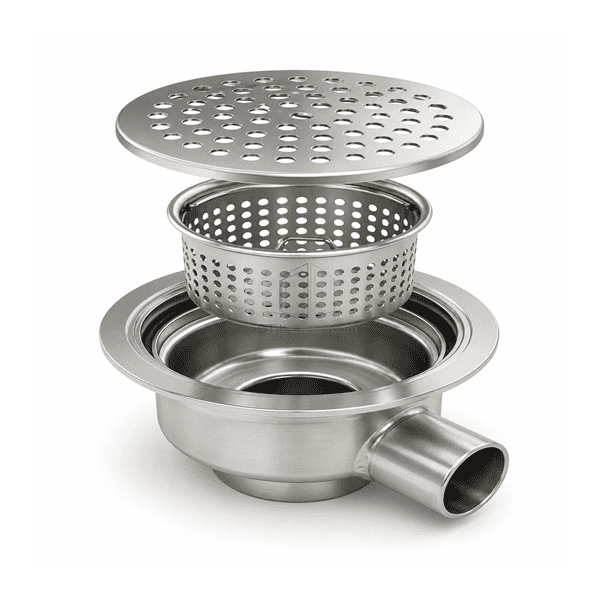

The grate and basket lift out without disturbing the embedded drain body.
A welded flange provides a continuous interface to resin, vinyl or tiled floor systems.
Optional trapping and load-rated grates adapt the drain to room use and traffic.
Customer Product Concerns
Frequent-wash areas require fast drainage, accessible internals and a floor interface that does not create difficult-to-clean crevices.

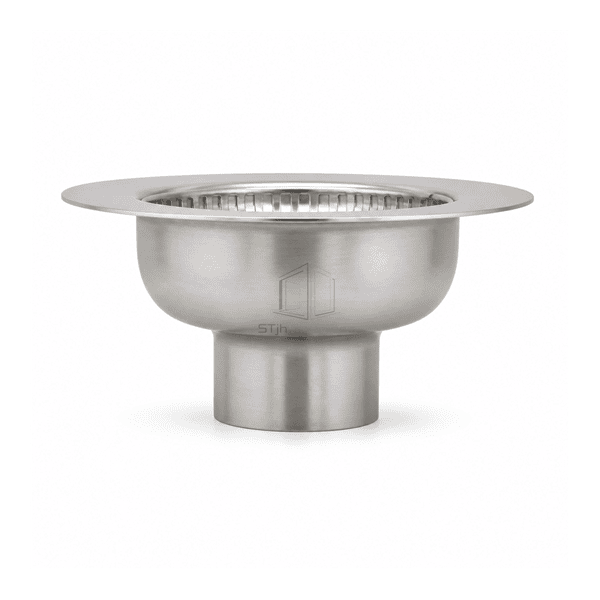

Flat-bottomed sumps can retain standing water after cleaning.A formed sloped bowl directs liquid toward the matched outlet.
Fixed top assemblies make strainers difficult to inspect and clean.The grate and waste basket remove from above without tools.
Drain-to-floor junctions may become crevices or leak paths.A floor-specific welded flange creates a broad continuous finishing interface.
Traffic and wash practices vary between controlled rooms.Selectable grate load rating, top size, outlet and trap configuration match the operating area.
Typical Applications
Hygienic corridorsPersonnel change roomsWash stationsProcess support rooms
Technical Parameters
The following ranges describe common stainless sanitary floor-drain construction; final top, outlet and grate selection depend on floor build-up, flow and wheel loading.
| Core Material | AISI 304 or 316L stainless steel drain bowl |
|---|---|
| Panel Thickness | 1.2-2.0 mm formed body wall |
| Effective Width | 150-300 mm top width |
| Maximum Length | Up to 400 mm overall body length |
| Steel Facing Thickness | 1.5-2.0 mm exposed stainless top and flange |
| Core Density | 7900-8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14-16 W/(m·K) for stainless steel |
| Surface Finish | Satin-finished or electropolished cleanable stainless steel |
| Joint Type | Continuously welded bowl with sanitary spigot outlet |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L grade150-300 mm topDN50-DN110 outletLoad-rated grate and removable trap
Planning a Sanitary Floor Drain specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
