Cleanroom Utility Systems
Reverse Osmosis Water System

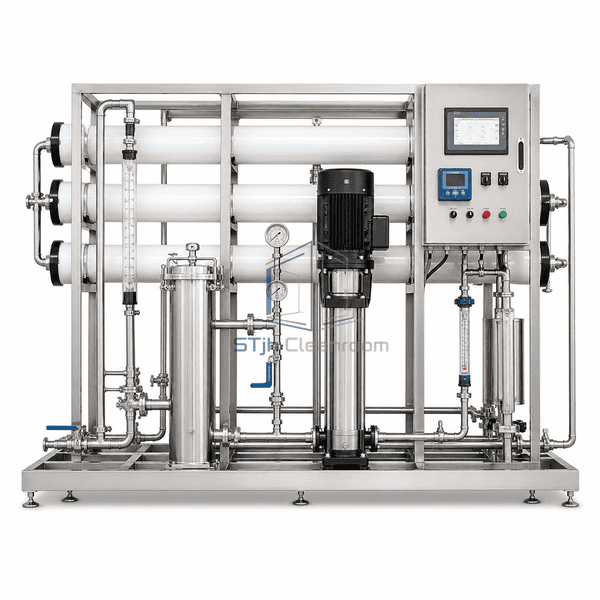

A skid-mounted reverse osmosis system configured around feed-water quality, target permeate conductivity and required production capacity.
- Single-pass or double-pass configuration
- Online permeate quality monitoring
- Hygienic stainless process piping
Product Introduction

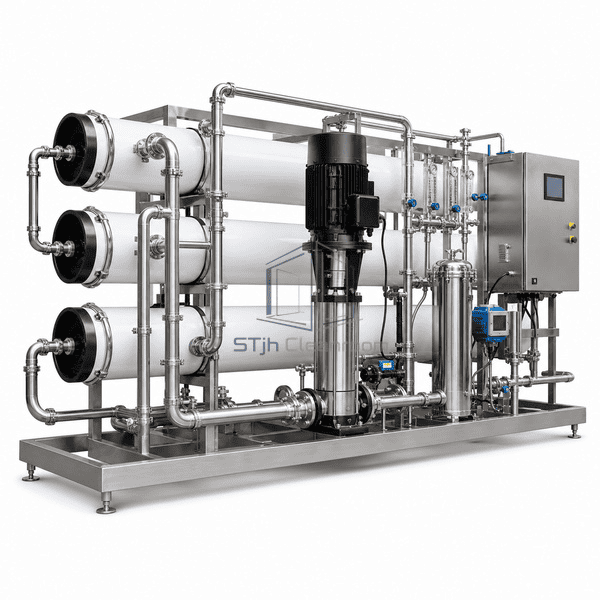

The packaged system combines cartridge prefiltration, high-pressure pumping, spiral-wound membrane vessels, hygienic process piping and automated controls on a compact structural skid.
Key Features
Conductivity, pressure, flow and temperature monitoring
Automatic flush and quality diversion
Accessible sampling and cleaning connections
Optional plant communication
Customer Product Concerns
Feed variability, startup quality and membrane maintenance are addressed through application-specific pretreatment and control logic.
Variable feed-water qualitySelect pretreatment, conditioning and the membrane array from a current feed-water analysis.
Unstable permeate conductivityUse continuous conductivity monitoring, startup diversion and an optional second pass.
High water and energy useApply low-energy membranes, variable-frequency pumping and suitable concentrate recycle.
Difficult cleaningProvide front-access instruments, isolation valves, removable elements and dedicated cleaning connections.
Typical Applications
Pharmaceutical purified-water trainsBiotechnology and laboratory central waterCosmetic process waterElectronics rinsingBoiler and sterilizer utility water
Technical Parameters
All performance settings remain configurable to the feed-water analysis, capacity and intended downstream process.
| Core Material | Thin-film composite polyamide reverse osmosis membrane elements |
|---|---|
| Panel Thickness | Membrane element diameter and pressure-vessel configuration selected in mm to suit capacity |

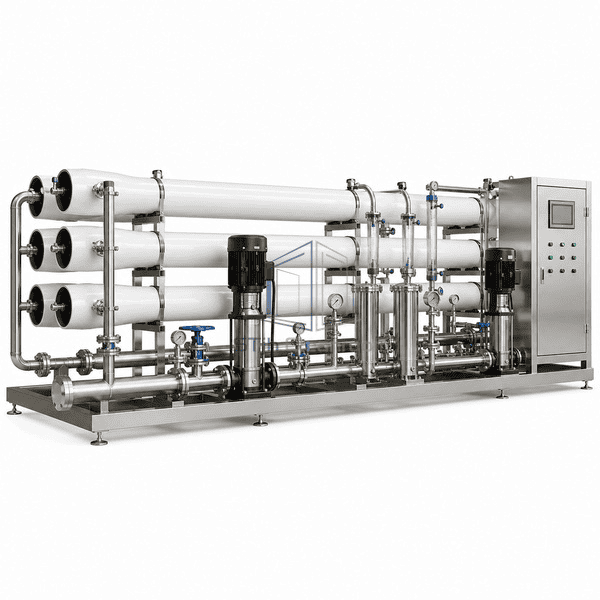

| Effective Width | Skid width typically 800–2200 mm, configuration dependent |
| Maximum Length | Skid length typically up to 6000 mm, configuration dependent |
| Steel Facing Thickness | Stainless-steel skid and enclosure sheet typically 1.5–3.0 mm where used |
| Core Density | Structural material density approximately 7930 kg/m³ for 304 stainless steel |
| Thermal Conductivity | Stainless-steel structural components approximately 16.2 W/(m·K) at ambient temperature |
| Surface Finish | Brushed or bead-blasted stainless steel with controlled hygienic tubing finish |

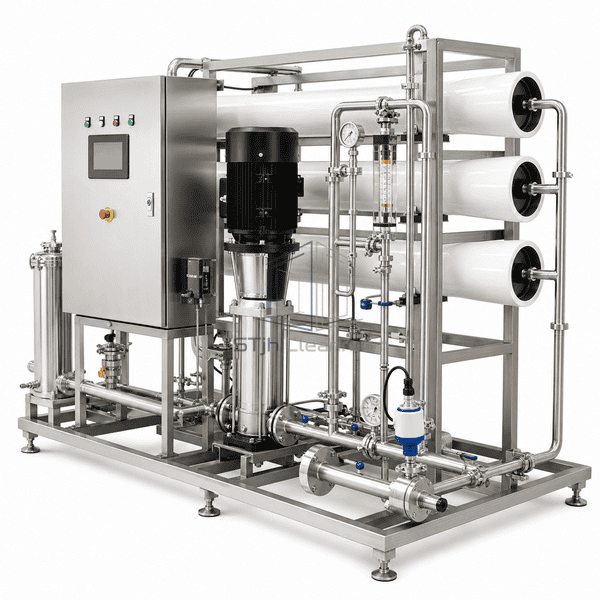

| Joint Type | Orbital-welded hygienic tubing with sanitary clamp service connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single-pass or double-pass RO304 or 316L pipingIntegrated pretreatmentDosing modulesEDI or UV polishing interfaceClean-in-place connectionsRemote data communication
Planning a Reverse Osmosis Water System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
