Microbiological Environmental Monitoring Products
Remote Viable Air Sampler

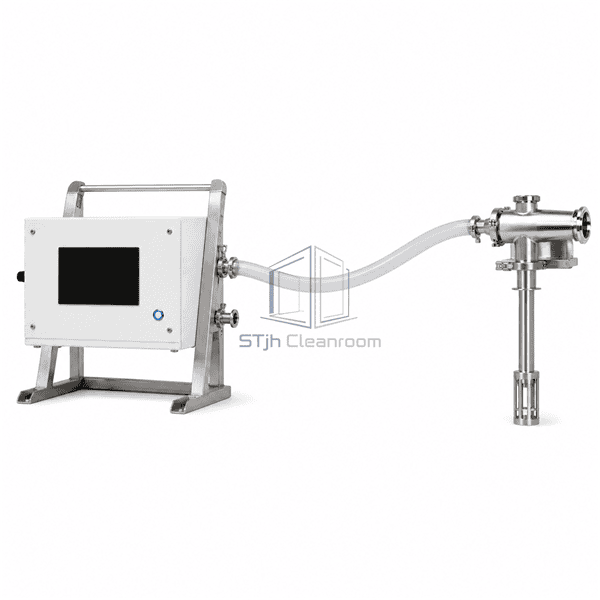

A fixed remote impaction system that keeps its blower and electronics outside containment while sampling viable organisms at one critical internal point.
- Remote Containment Sampling
- External Blower and Electronics
- VHP-Compatible Air Path
- Regulated 100 L/min Flow
Product Introduction

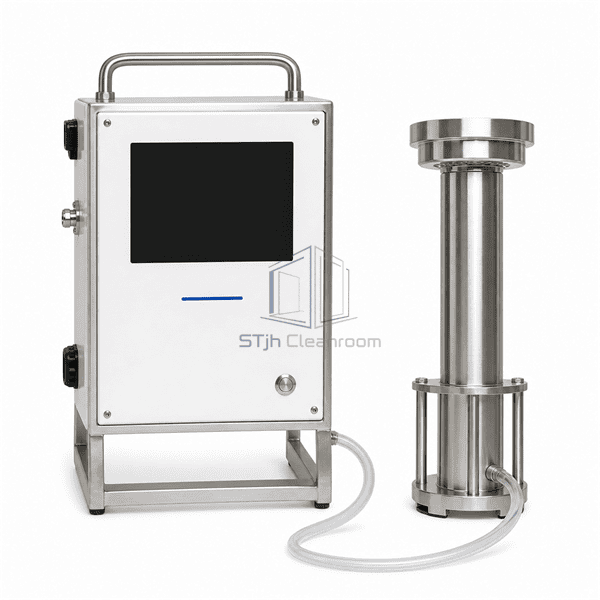

The Remote Viable Air Sampler separates the electropolished stainless sampling head from the control and blower enclosure. Only the cleanable head and process tubing enter the isolator or RABS, while moving parts and interfaces remain accessible outside the critical zone. Air drawn through the perforated lid impacts microorganisms onto a culture plate, then passes through a sealed hose and controlled valve path. Flow regulation, pressure checks and optional decontamination circulation support repeatable fixed-point monitoring without placing serviceable electronics inside containment.
Key Features
Closed-loop mass-flow regulation controls sample volume through the installed tubing path.

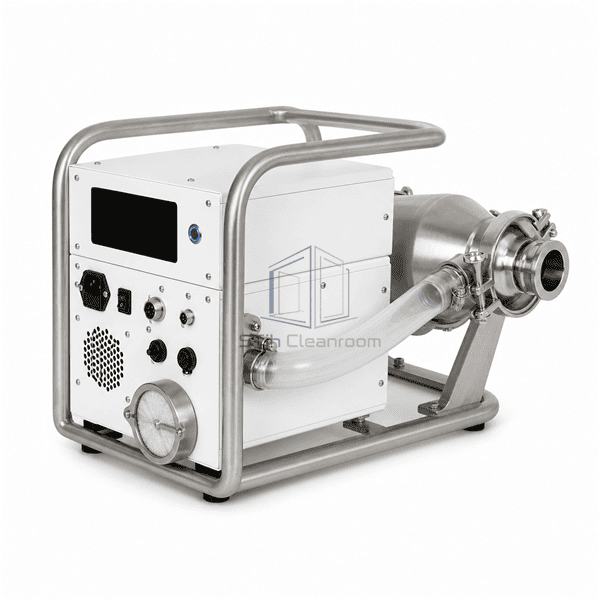

Tri-clamp joints and a double-valve arrangement support leak testing, cleaning and VHP-cycle integration.
Digital and industrial communication options allow operation from the isolator HMI or monitoring system.
Customer Product Concerns
Remote sampling must preserve microbial recovery through tubing while preventing leakage, backflow and inaccessible contamination traps.
Electronics placed inside an isolator complicate cleaning and qualification.The blower, display and communication hardware remain outside while only a smooth stainless head enters containment.
Long tubing can alter the regulated flow and sampling efficiency.A mass-flow loop compensates for installed resistance within the validated tubing configuration.
The sample path may be excluded from routine VHP decontamination.Dedicated valves and a sterilization circulation path expose the head and tubing to the configured cycle.
A loose tri-clamp or hose leak causes an unrepresentative sample.Sealed sanitary joints and a pressure-test provision verify air-path integrity before monitoring.
Typical Applications
Sterile filling isolatorsRestricted access barrier systemsGlovebox aseptic processesFixed critical-point viable monitoring
Technical Parameters
Typical construction values for a single-point remote viable air sampling system are listed below.
| Core Material | 316L electropolished stainless sampling head with anodized aluminum and stainless external controller |
|---|---|

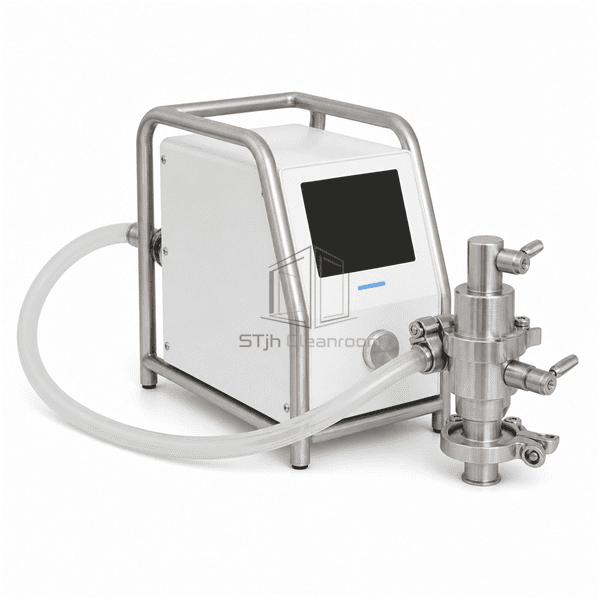

| Panel Thickness | 160-230 mm controller depth |
| Effective Width | 160-300 mm controller width |
| Maximum Length | Up to 10000 mm validated sampling tube length for VHP-compatible installations |
| Steel Facing Thickness | 1.0-2.0 mm stainless controller and sampling-head wall |
| Core Density | 2650-8000 kg/m³ across aluminum and stainless structural components |
| Thermal Conductivity | 14-220 W/(m·K) across stainless steel and aluminum components |
| Surface Finish | Electropolished pharmaceutical-grade stainless head with smooth white and natural-metal controller surfaces |
| Joint Type | Sanitary tri-clamp sample head, sealed silicone tubing and double-valve air-decontamination manifold |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single or multi-head control unit90 mm or alternative culture-plate baseEthernet, Profinet, Profibus or digital I/OIn-line and exhaust filtration
Planning a Remote Viable Air Sampler specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
