Cleanroom Utility Systems
Purified Water Generation System

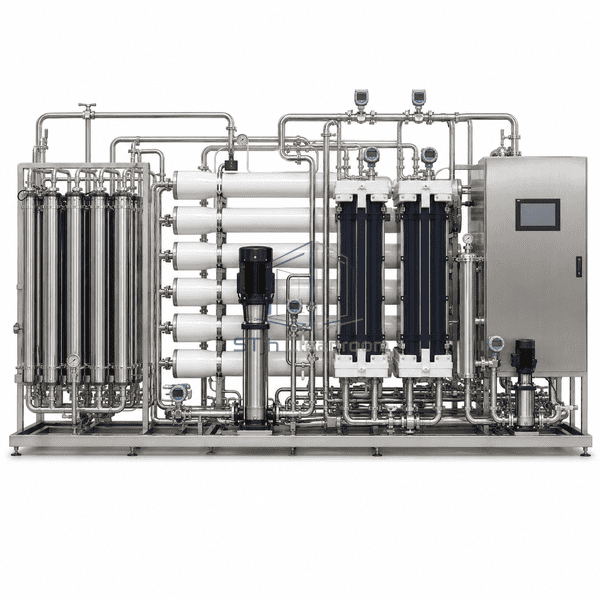

An integrated hygienic generation skid combining selected pretreatment, reverse osmosis and optional continuous electrodeionization for dependable purified process water.

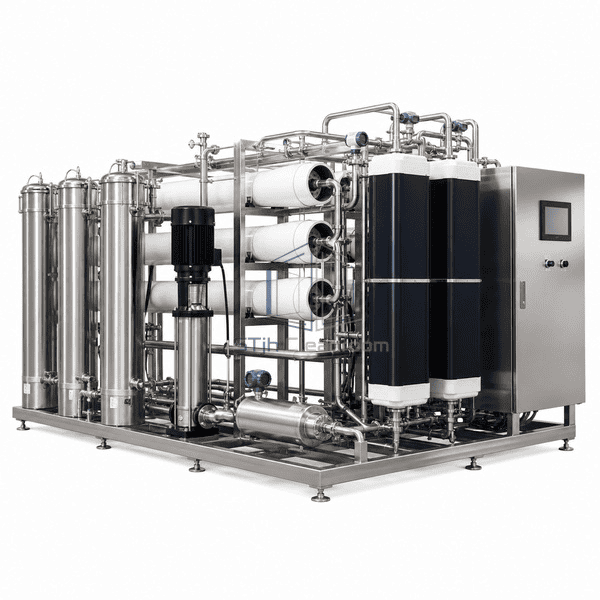

- Integrated RO and polishing train
- Hygienic drainable process path

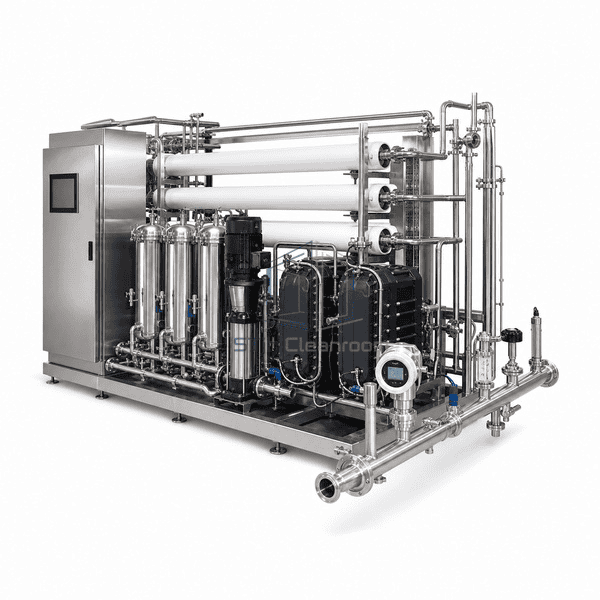

- Online water-quality monitoring
Product Introduction

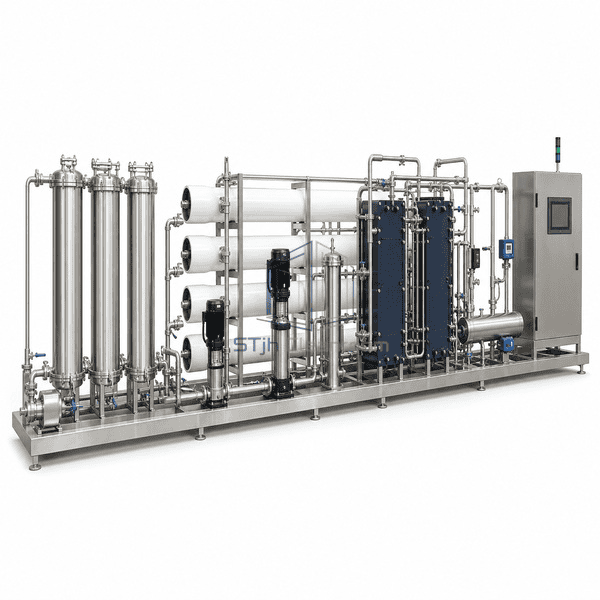

The system packages feed conditioning, membrane purification, optional EDI or UF polishing, instrumentation and automated controls into a coordinated generation train with interfaces for the storage and distribution loop.
Key Features
Drainable hygienic piping
Conductivity and temperature monitoring
Startup quality diversion
Sanitization-ready options
PLC/HMI supervision
Customer Product Concerns
A stable purified-water supply requires coordinated pretreatment, microbial control and generation-to-storage automation.
Feed changes upset final qualitySelect pretreatment and membrane stages from feed analysis and monitor critical quality signals online.
Microbial growth during idle periodsUse drainable geometry, controlled recirculation and a suitable thermal or chemical sanitization arrangement.
Off-quality startup water reaches storageApply automatic quality diversion until monitored parameters enter the accepted operating window.
Generation and loop controls conflictInterlock production, tank level, return quality and distribution demand through coordinated PLC logic.
Typical Applications
Pharmaceutical ingredient and formulation waterBiotechnology process utilitiesHealthcare productionCosmetic manufacturingValidated cleaning and rinsing supply
Technical Parameters
The system is engineered around source-water analysis, required production rate, target water quality and selected sanitization strategy.
| Core Material | Thin-film composite RO membranes with optional EDI resin/membrane polishing modules |
|---|---|
| Panel Thickness | Membrane, module and process component dimensions selected in mm by system capacity |
| Effective Width | Integrated skid width typically 1200–2800 mm, configuration dependent |
| Maximum Length | Integrated skid length typically up to 8000 mm, configuration dependent |
| Steel Facing Thickness | Stainless-steel frame and enclosure sheet typically 1.5–3.0 mm |
| Core Density | Structural material density approximately 7930 kg/m³ for 304 stainless steel |
| Thermal Conductivity | Stainless-steel structural components approximately 16.2 W/(m·K) at ambient temperature |
| Surface Finish | Brushed exterior stainless steel with controlled hygienic wetted-surface finish |
| Joint Type | Orbital-welded hygienic tubing with sanitary clamp service connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single-pass or double-pass ROContinuous EDI polishingUF final barrierHot-water sanitizationIntegrated dosingTOC monitoring interfaceRemote data historian communication
Planning a Purified Water Generation System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
