Cleanroom Testing and Validation Instruments

Portable Particle Counter

A high-flow portable airborne particle counter for efficient cleanroom classification, qualification and routine environmental monitoring.

High-flow sampling reduces large-volume collection time.
Guided recipes keep field rounds consistent.
Wipe-clean steel body with HEPA-filtered exhaust.

Request a Quote Browse Products

Product Introduction

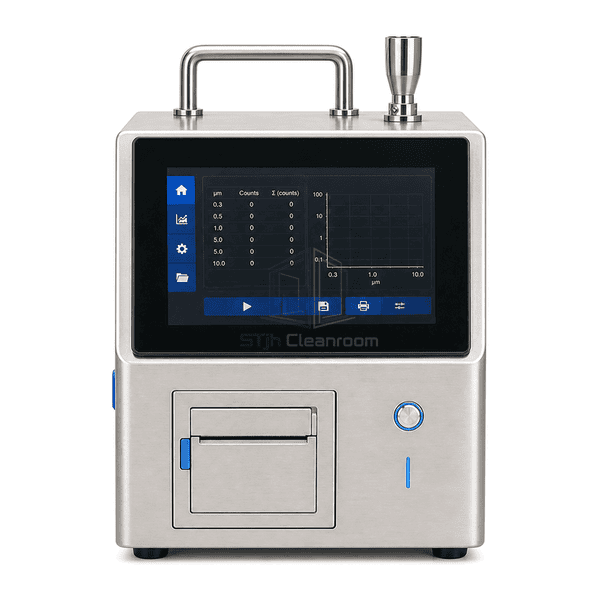

This portable particle counter uses laser light scattering and a controlled internal pump to sample substantially larger air volumes than a handheld spot-check instrument. Its stainless-steel, wipe-clean housing, large touchscreen and removable battery arrangement are suited to room-to-room qualification work. Configurable sampling plans, location records and electronic data transfer help validation teams execute repeatable surveys while preserving the context of every result.

Key Features

High-flow sampling shortens the time required to collect representative cleanroom air volumes.

Multiple particle-size channels support simultaneous classification and contamination diagnosis.

Chemical-resistant stainless-steel exterior tolerates common controlled-area cleaning agents.

Guided sampling locations and stored recipes reduce operator variation during qualification rounds.

Internal HEPA-filtered exhaust prevents sampled particles from being released back into the test area.

USB, Ethernet and configurable wireless connectivity support paperless result transfer.

Customer Product Concerns

Large-volume classification rounds demand faster collection, repeatable recipes at every inspection point, and records that remain traceable when results are archived.

Low-flow instruments can make one-cubic-metre sampling rounds excessively slow.Select 28.3, 50 or 100 L/min configurations to match the required sample volume and available qualification time.

Paper printouts and manual transcription can weaken data integrity.Electronic recipes, user controls, audit-ready records and direct data transfer keep results associated with the original run.

Cleaning chemicals may damage instruments repeatedly moved through classified rooms.A smooth stainless-steel exterior is compatible with routine wipe-down using commonly specified cleanroom disinfectants.

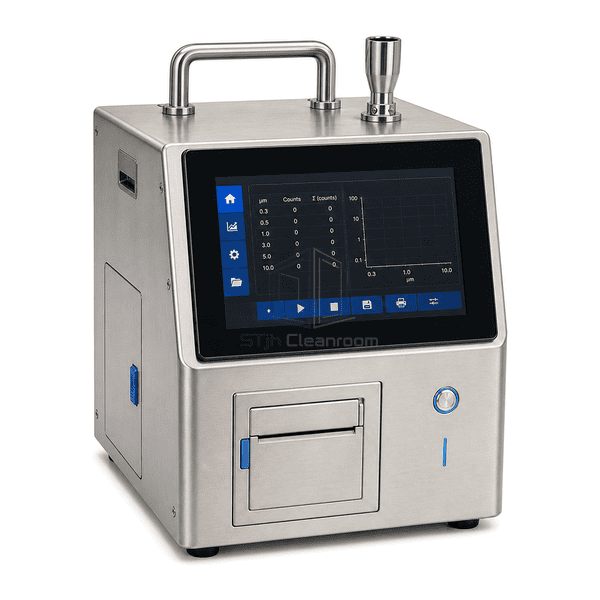

Variable inlet tubing can create particle losses and inconsistent readings.Defined isokinetic probes and controlled tubing lengths provide a repeatable sampling path for each survey.

Typical Applications

ISO cleanroom classification and periodic requalificationRoutine pharmaceutical environmental monitoringLarge-volume sampling in aseptic processing areasHEPA-filtered room recovery and contamination investigationsSemiconductor and precision-manufacturing clean-zone surveys

Technical Parameters

The table defines representative body dimensions, sampling and data interfaces, and enclosure materials for a high-flow portable cabinet counter, with the model selected to match the sampling plan.

Core Material	Stainless-steel outer enclosure with an internal laser optical block, regulated sampling pump and HEPA exhaust filter
Panel Thickness	Approximately 1.0–1.5 mm for the fabricated enclosure panels
Effective Width	Approximately 230–267 mm according to flow-rate configuration
Maximum Length	Approximately 230–270 mm excluding the isokinetic inlet
Steel Facing Thickness	Typically 1.0–1.5 mm stainless steel
Core Density	Not applicable; the instrument enclosure has no insulation core (0 kg/m³)
Thermal Conductivity	Approximately 14–16 W/(m·K) for the stainless-steel enclosure material
Surface Finish	Smooth passivated or fine-brushed stainless steel with a sealed dark touchscreen bezel
Joint Type	Isokinetic or barbed sampling inlet, HEPA-filtered exhaust and configurable USB/Ethernet data interfaces
Customization	Available based on the intended application and operating environment.

Available Options

28.3, 50 or 100 L/min sampling flow configurations0.3 µm or 0.5 µm minimum sensitivity configurationsBuilt-in thermal printer or paperless configurationTemperature and relative-humidity probeElectronic filter-scanning probeAdditional batteries, charger and transport case
