Cleanroom Installation Accessories

Pipe Support and Hanger

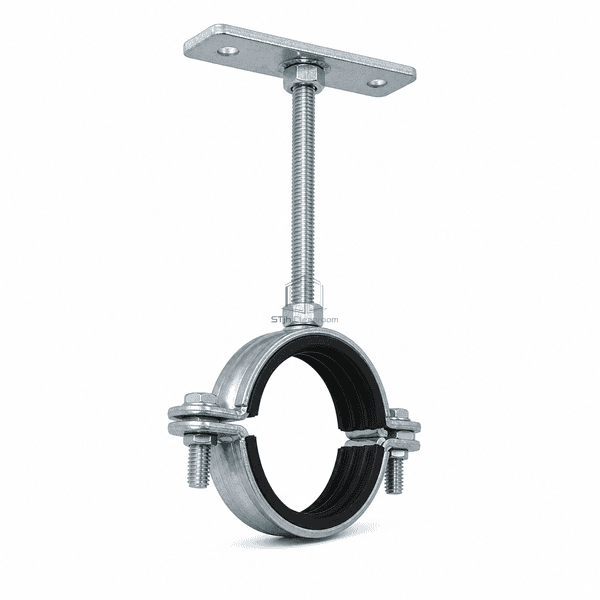

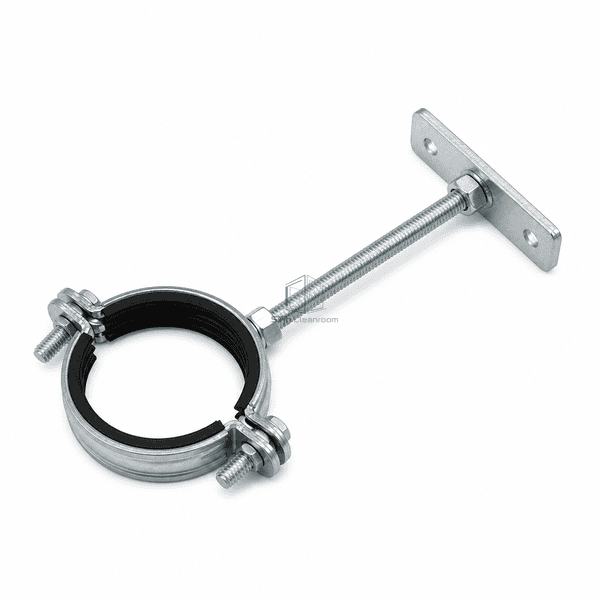

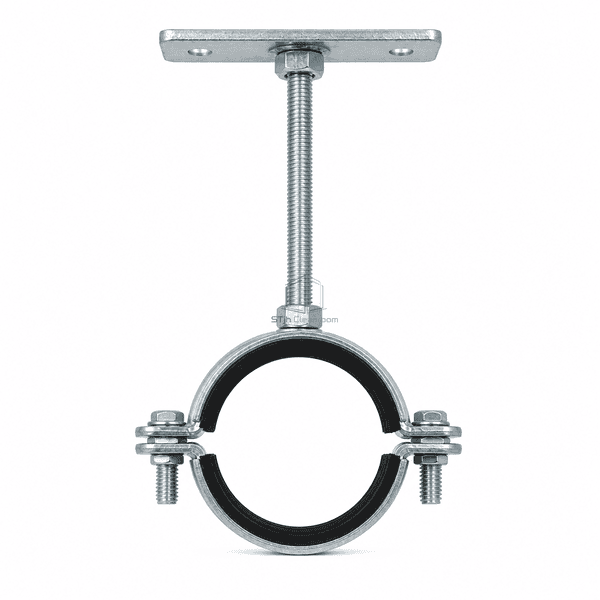

A galvanized split-ring pipe hanger with an EPDM liner, threaded suspension rod and ceiling plate for supporting cleanroom utility pipework.

EPDM-Lined Split Ring
Threaded Drop Adjustment
Two-Bolt Clamp Closure
Galvanized Steel Hardware

Request a Quote Browse Products

Product Introduction

This suspended support combines a two-piece circular clamp, resilient liner and adjustable threaded drop in one compact assembly. The liner separates the pipe from the steel band and cushions minor vibration, while the two side fasteners open the ring for installation around completed pipe runs. A locknut secures the selected drop height beneath the two-hole ceiling plate.

Key Features

The split-ring construction opens around installed pipe without feeding the pipe through a closed loop.

A continuous black EPDM liner cushions the pipe surface and limits direct metal-to-pipe contact.

The centered threaded rod provides practical vertical adjustment during utility alignment.

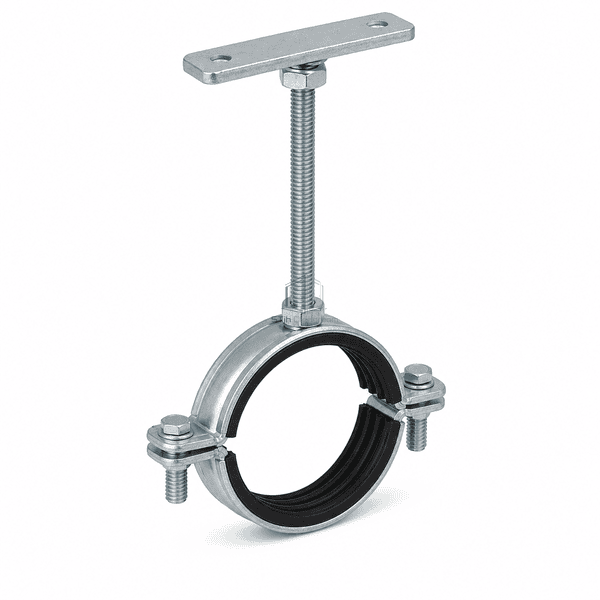

Two opposed closing bolts distribute clamping force around the circular band.

The compact top plate provides two clearly separated structural attachment points.

Customer Product Concerns

Cleanroom utility lines need adjustable overhead support that protects the pipe surface, avoids unstable point contact and remains accessible during alignment.

Rigid bare-metal bands can mark coated pipe and transmit vibration into the support structure.The continuous EPDM liner creates a resilient separation layer between the pipe and galvanized clamp.

A fixed suspension length makes it difficult to maintain pipe slope beneath uneven structure.The threaded rod and locknut allow the clamp elevation to be adjusted before final tightening.

Closed-loop hangers are awkward to add after a utility run has been assembled.The two-piece ring opens at its side fasteners so it can be fitted around an existing line.

Single-point ceiling attachments can rotate while installers align the pipe run.The two-hole anchor plate provides a stable structural interface above the centered hanger rod.

Typical Applications

Cleanroom process-water pipe suspensionCompressed-air and inert-gas utility linesLow-temperature drain and condensate pipingService-plenum tubing supportPharmaceutical and electronics facility utility routing

Technical Parameters

Typical material and dimensional ranges for an adjustable lined cleanroom pipe support and hanger are listed below.

Core Material	Zinc-plated carbon-steel split ring, threaded rod and ceiling plate with black EPDM liner
Panel Thickness	2.0-3.0 mm nominal split-ring band thickness
Effective Width	15-200 mm nominal supported pipe outside diameter
Maximum Length	Up to 1500 mm adjustable threaded suspension drop
Steel Facing Thickness	3.0-5.0 mm nominal ceiling plate thickness
Core Density	Approximately 7850 kg/m³ for carbon-steel components
Thermal Conductivity	Approximately 45-60 W/(m·K) for carbon steel
Surface Finish	Silver electro-galvanized steel with matte black EPDM contact lining
Joint Type	Two-bolt lined split ring connected to a locknut-adjusted threaded suspension rod
Customization	Available based on the intended application and operating environment.

Available Options

M8, M10 or M12 suspension rodElectro-galvanized, hot-dip galvanized or stainless-steel hardwareEPDM or silicone liner selectionClamp diameters matched to the utility pipe outside diameterCustom ceiling plate and suspension drop length
