Cleanroom Cleaning, Disinfection and Sterilization

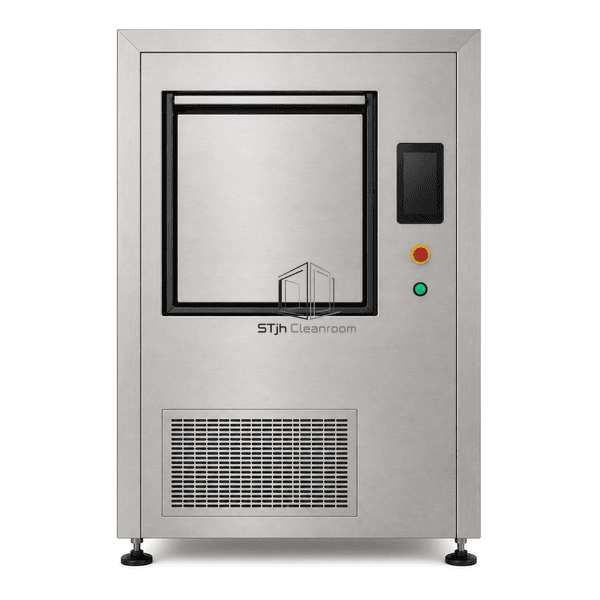

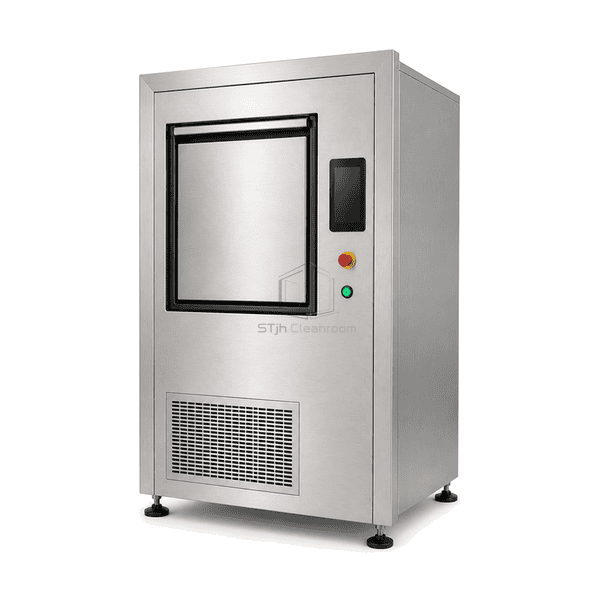

Pass-Through Autoclave
A double-door barrier steam sterilizer that transfers heat- and moisture-stable loads between separated cleanroom zones while maintaining controlled workflow.
- Opposed interlocked doors support one-way material transfer
- Barrier-wall sealing helps separate loading and unloading environments
- Programmable vacuum-steam cycles provide monitored processing
Product Introduction
This pass-through autoclave is designed for pharmaceutical facilities, laboratories, and sterile-processing layouts requiring a defined dirty-to-clean workflow. Automatic vertical sliding or hinged doors reduce handling effort, while recipe controls coordinate conditioning, exposure, exhaust, and drying. Chamber dimensions, utilities, barrier trim, and unloading-side controls are adapted to the facility layout.
Key Features
Mechanical and control-system door interlocks
Stainless barrier frame and sealed wall trim
Pre-vacuum, gravity, leak-test, and drying programs
Load-side touchscreen and unload-side status panel
Cycle data logging and alarm history
Automatic sliding-door option
Loading carts and transfer trolleys
Customer Product Concerns
Material transfer between cleanliness zones can undermine segregation if door logic, wall sealing, load flow, or cycle status is ambiguous. The system must also remove air reliably and prevent clean-side access to an incomplete or faulted load.
How is cross-zone access controlled?Independent door interlocks permit only the appropriate door to open according to cycle status and configured workflow.

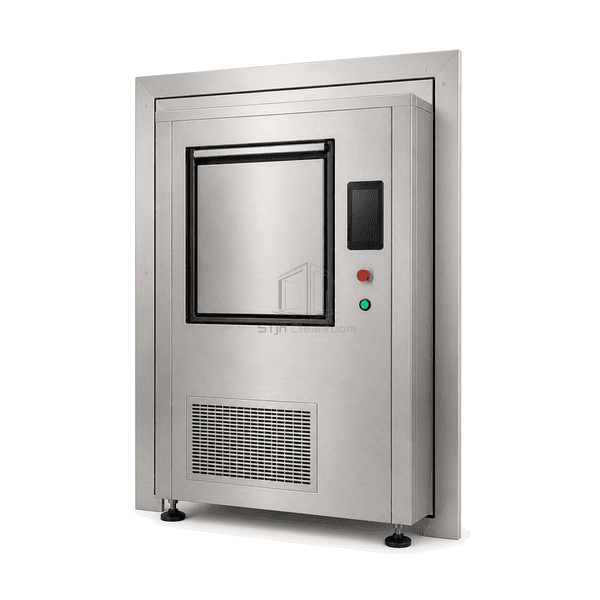

How is the wall penetration sealed?A stainless barrier frame and custom trim interface with the partition to form a cleanable perimeter seal.

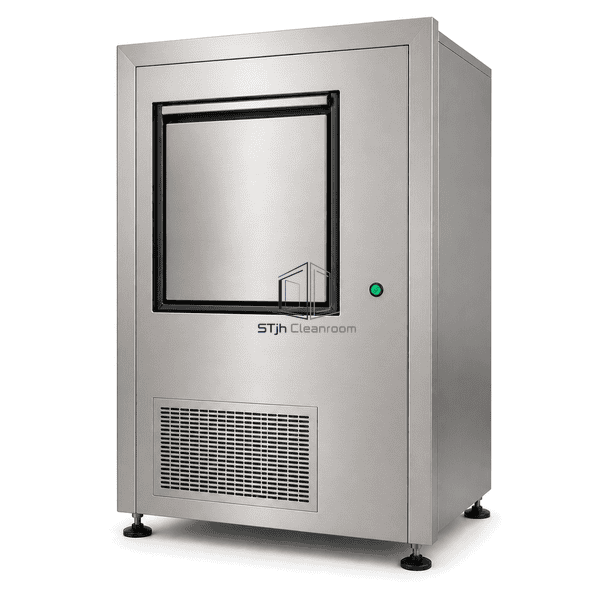

Can both sides see cycle status?The load side provides full control, while the unload side can display locked, cycle-complete, alarm, and door-ready states.
How are loads moved safely?Matched chamber racks, loading carts, and transfer trolleys support ergonomic and repeatable loading.
Typical Applications
Pharmaceutical component transferSterile manufacturing supportCleanroom garment processingLaboratory containment workflowsHealthcare sterile-processing departmentsBiotechnology production facilities
Technical Parameters
The pass-through autoclave integrates a jacketed stainless pressure vessel across a sealed partition. Independent load- and unload-side doors are interlocked so the clean-side door remains closed until a successful cycle is complete. Both sides receive appropriate status indication and operator controls.
| Core Material | 316L or 304 stainless-steel pressure chamber and barrier frame |
|---|---|
| Panel Thickness | 40–80 mm insulated barrier cabinet panels |
| Effective Width | 700–1200 mm equipment width |
| Maximum Length | 1600–3000 mm maximum external depth or height |
| Steel Facing Thickness | 1.0–1.5 mm stainless-steel facing |
| Core Density | 60–100 kg/m³ high-temperature mineral insulation |
| Thermal Conductivity | 0.035–0.050 W/(m·K) |
| Surface Finish | Brushed external stainless steel with polished chamber and flush barrier trim |
| Joint Type | Welded chamber seams with gasketed interlocked doors and sealed barrier-wall flange |
| Customization | Available based on the intended application and operating environment. |
Available Options
Hinged or vertical sliding doorsChamber sizes and loading systemsIntegral clean-steam generatorClean-side status display or touchscreenPrinter, USB, and network recordsBioseal or flush barrier trimAutomated loading interface
Planning a Pass-Through Autoclave specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
