Cleanroom Material Handling and Storage
Nitrogen-Purged Transport Cabinet

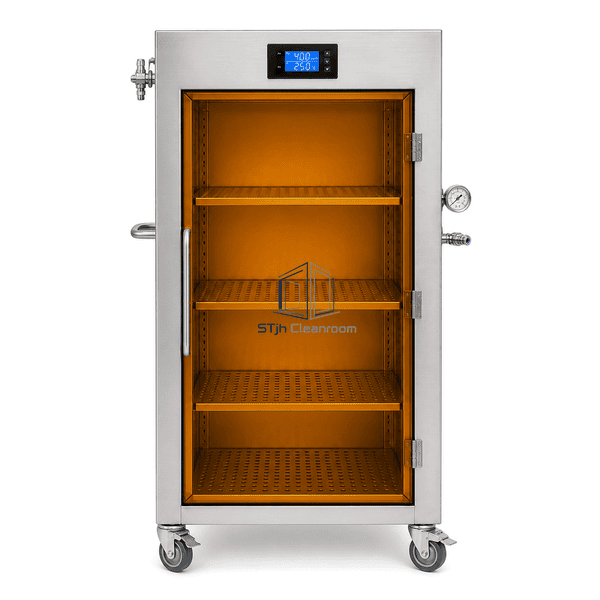

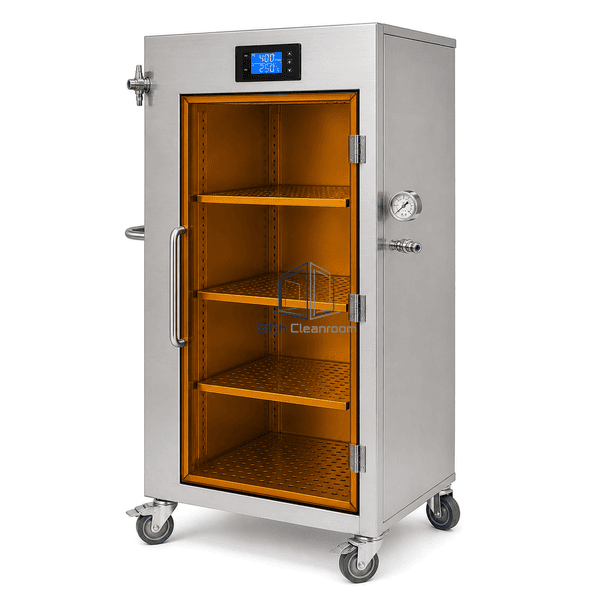

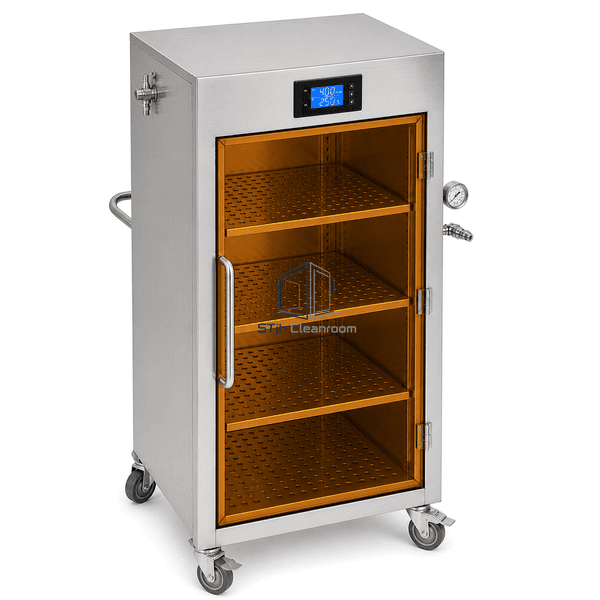

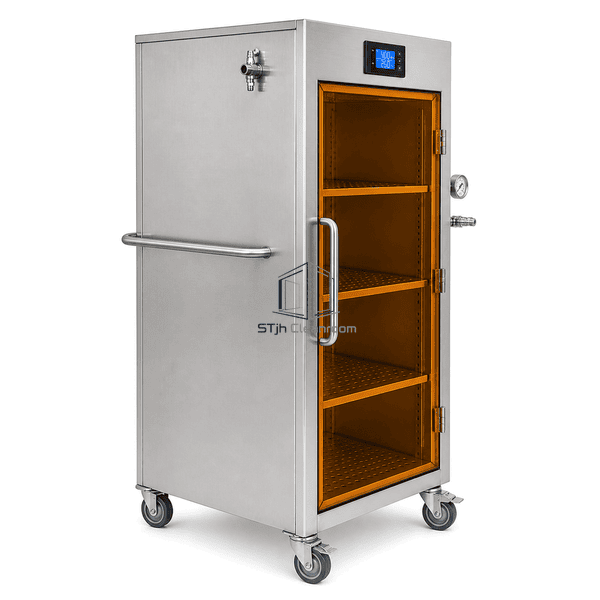

A mobile 304 stainless steel nitrogen-purged cabinet with a gasketed amber viewing door, four perforated shelves, digital environmental display, pressure gauge, gas connections and lockable cleanroom casters.
- Mobile low-humidity storage protects moisture-sensitive materials between cleanroom process points
- Controlled nitrogen inlet, pressure indication and relief hardware support a stable purge environment
- Gasketed amber viewing door and perforated shelves combine visibility with distributed gas flow
Product Introduction
The nitrogen-purged transport cabinet maintains a clean, dry storage volume while moisture-sensitive materials move between controlled work areas. Its welded stainless steel enclosure supports repeated wipe-down, and the amber viewing door allows contents to be checked without opening the cabinet. Nitrogen enters through a regulated side connection and passes around the perforated shelves before leaving through a controlled relief path. A digital environmental display and analog pressure gauge help operators verify the selected cabinet configuration, while the push handle and swivel casters provide practical in-facility mobility.
Key Features
Four adjustable perforated shelves promote gas circulation around trays, carriers and sealed material packs.
Amber transparent door provides visual inspection while static-dissipative glazing is available for charge-sensitive loads.
External gas connection, pressure gauge and relief arrangement support controlled low-pressure nitrogen purging.
Smooth stainless surfaces, accessible shelf supports and mobile hardware simplify routine cleanroom cleaning.
Customer Product Concerns
Ordinary mobile cabinets expose sensitive loads to humid room air, consume excessive purge gas through poorly sealed doors and provide no clear indication that a low-pressure dry environment is being maintained during transport.
Humidity recovery after door openingA regulated purge connection and optional automatic high-flow recovery mode restore the selected dry-storage condition more efficiently.
Uneven nitrogen distributionPerforated shelves and an optional internal plenum allow dry gas to circulate through the full storage height.
Excessive gas consumptionA compressed door gasket and configurable low-flow control reduce leakage during closed-door holding periods.
Unintended cabinet pressurizationA dedicated relief or bleed path limits pressure while the external gauge provides a visible operating check.
Safe movement through clean areasA rigid push handle, swivel casters and parking brakes support controlled routing and stable staging.
Typical Applications
Controlled movement and short-term storage of moisture-sensitive semiconductor materials, wafer carriers, optical components, electronic assemblies, precision parts, laboratory samples and sealed process consumables in cleanrooms and dry production areas.
Technical Parameters
This cabinet is intended for low-pressure purge service rather than vacuum operation. The nitrogen supply is regulated upstream, introduced through a clean gas fitting and distributed through the shelf openings. A gasketed door reduces leakage, while a relief or bleed device prevents unintended pressure buildup. Cabinet size, shelf loading, target relative humidity, door-opening frequency and allowable nitrogen consumption determine the required flow-control package. The mobile base transfers the loaded cabinet mass through four cleanroom-compatible swivel casters, with brakes specified according to the intended route and parking conditions.
| Core Material | 304 stainless steel enclosure with optional 316L stainless clean surfaces and amber acrylic or static-dissipative PVC viewing panel |
|---|---|
| Panel Thickness | 20-40 mm fabricated door and enclosure frame section |
| Effective Width | 470-900 mm usable shelf width |
| Maximum Length | Up to 1200 mm overall horizontal cabinet length |
| Steel Facing Thickness | 1.0-1.5 mm stainless enclosure sheet |
| Core Density | 7900-8000 kg/m³ nominal austenitic stainless steel density |
| Thermal Conductivity | Approximately 14-15 W/(m·K) at 20 °C |
| Surface Finish | Fine-brushed or electropolished exterior with passivated interior and smooth cleanable edges |
| Joint Type | Continuously welded stainless enclosure with gasketed hinged door, compression hardware and sealed gas-port connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, amber acrylic or static-dissipative PVC viewing door, manual 2-20 SCFH flowmeter, automatic relative-humidity purge controller, temperature/RH data display, dual-flow purge recovery, pressure relief valve, internal gas-distribution plenum, adjustable perforated shelves, keyed latch, grounding point, conductive casters and custom gas-port locations.
Planning a Nitrogen-Purged Transport Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
