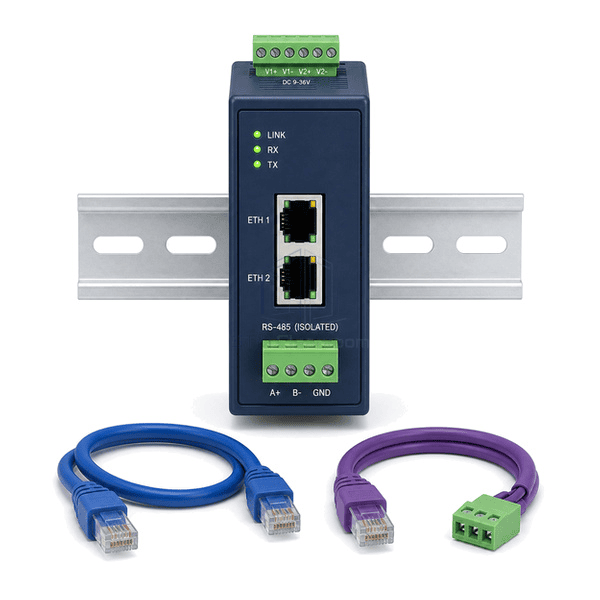

Complete dark-blue Modbus gateway with RJ45 Ethernet and green serial status LEDs

Cleanroom Control and Environmental Monitoring Systems

Modbus Communication Gateway

An industrial gateway that connects serial Modbus cleanroom instruments to Ethernet-based Modbus TCP supervisory and monitoring systems.

Modbus RTU to TCP Conversion
Isolated Serial Ports
Multi-Client Ethernet Access
Traffic and Error Diagnostics

Request a Quote Browse Products

Product Introduction

The Modbus protocol gateway converts Modbus RTU or ASCII frames on RS-485 or RS-232 links into Modbus TCP transactions on Ethernet. Serial-port isolation protects communication branches from ground-potential differences, while configurable timeouts and retry behavior suit sensors with different response speeds. Multiple TCP clients can access mapped serial devices within controlled connection limits. Web configuration, traffic counters and exception diagnostics help engineers locate duplicate addresses, framing errors and offline instruments without probing each cleanroom device individually.

Key Features

Modbus RTU, ASCII and TCP conversion links legacy field devices to Ethernet systems.

Isolated serial ports reduce ground-loop and surge effects across long RS-485 trunks.

Per-port baud rate, parity and timeout settings match existing cleanroom instruments.

Diagnostic counters identify CRC errors, timeouts and unreachable slave addresses.

Customer Product Concerns

A Modbus gateway must manage timing, addressing and electrical differences between serial field buses and multiple Ethernet clients.

Serial devices use different baud rate or parity settings on separate branches.Independent serial-port configuration preserves each trunk's communication format.

Two devices share the same slave address and respond unpredictably.Traffic diagnostics expose repeated responses and address conflicts for correction.

A long RS-485 trunk introduces ground and surge disturbances.Galvanic isolation separates field serial wiring from Ethernet and power electronics.

Several software clients overload a slow serial device.Connection limits, polling control and response timeout settings manage request traffic.

Typical Applications

FFU network integrationCleanroom sensor gatewaysEnergy meter collectionLegacy controller modernization

Technical Parameters

Typical construction values for an industrial Modbus serial-to-Ethernet gateway are shown below.

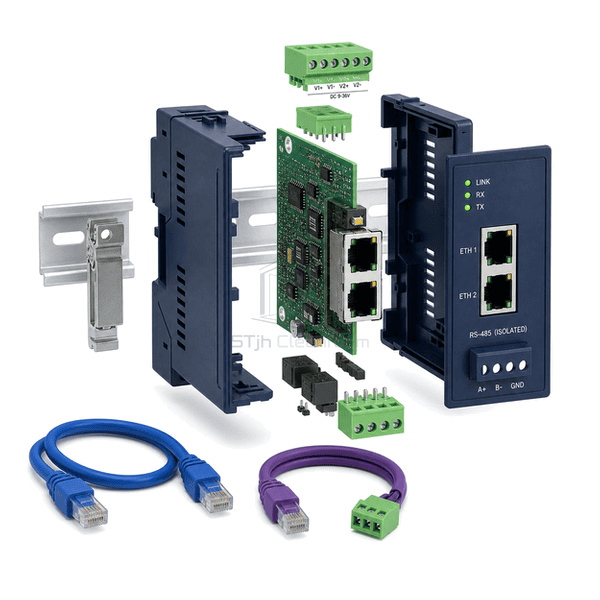

Core Material	FR-4 communication board with isolated transceivers in glass-filled flame-retardant polymer DIN-rail enclosure
Panel Thickness	85-130 mm gateway depth
Effective Width	25-80 mm DIN-rail width
Maximum Length	Up to 150 mm housing height
Steel Facing Thickness	0 mm; non-metallic enclosure
Core Density	1180-1550 kg/m³ for reinforced-polymer enclosure parts
Thermal Conductivity	0.19-0.40 W/(m·K) for polymer enclosure material
Surface Finish	Dark-blue reinforced-polymer housing with green serial and Ethernet status LEDs

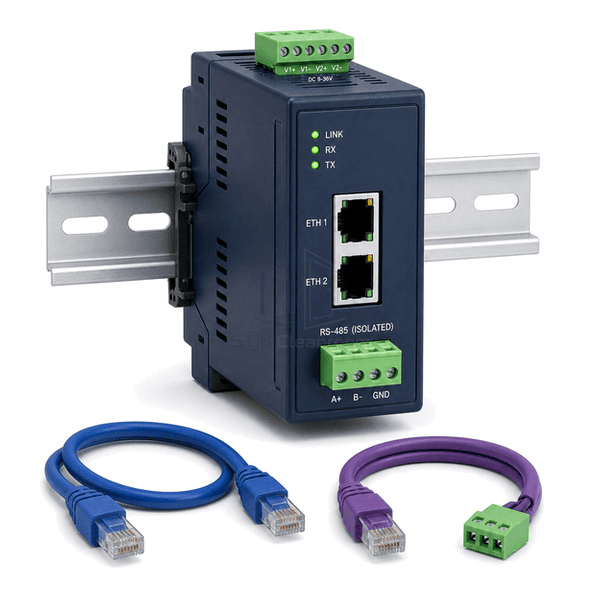

Joint Type	DIN-rail clip with RJ45 Ethernet, removable RS-485 terminals and redundant DC power input
Customization	Available based on the intended application and operating environment.

Available Options

One to four serial portsRS-232, RS-422 or RS-485Dual Ethernet portsOptional metal enclosure
