Personnel and Material Decontamination Equipment

Low-Flow Suit Wet-Down Shower

A low-consumption protective-suit rinse chamber using zoned water spray to suppress surface dust before removal.

Zoned Low-Flow Sprays
Full-Suit Wetting
Programmed Drip Stage
Serviceable Drain Screen

Request a Quote Browse Products

Product Introduction

The low-flow wet-down shower provides more surface wetting than a mist shower without the water demand of a full body wash. Independent upper, middle and boot-level spray bars let the sequence address the whole suit. A removable strainer, flushable branches and a stainless drain pan simplify routine operation in containment change areas.

Key Features

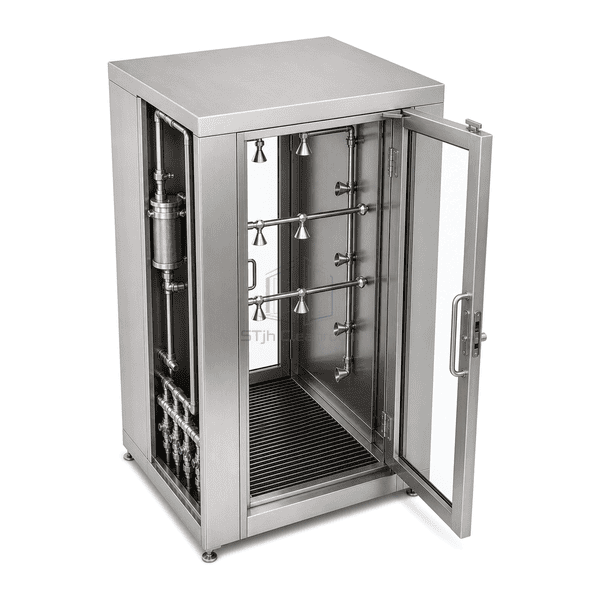

Three valved spray levels can be timed separately for hood, body and boots.

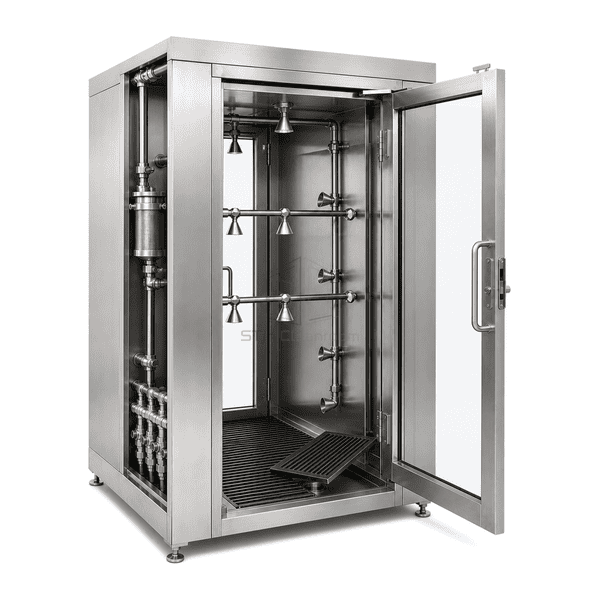

Full-cone nozzles deposit a controlled water layer without a hard cleaning jet.

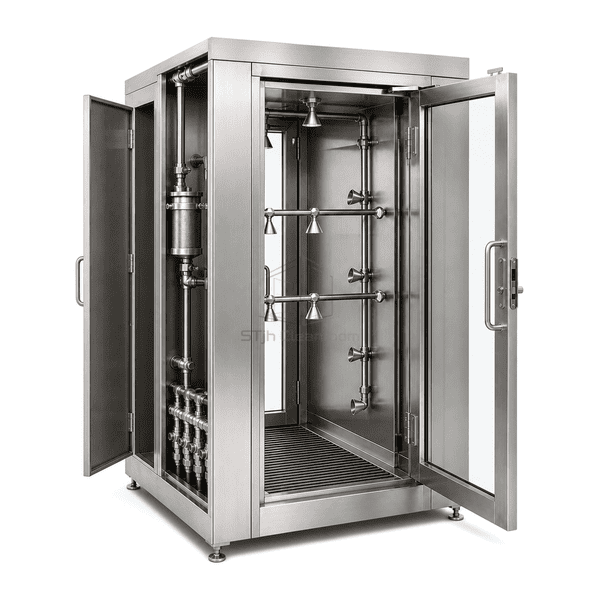

An inline strainer protects small nozzle passages from supply debris.

Branch-end flush points help clear sediment after a campaign.

A drip-delay stage reduces water tracking into the clean changing room.

Customer Product Concerns

A wet-down stage must immobilise dust without flooding the exit route or wasting treated water.

A full drench shower uses more water than routine garment wetting needs.Low-flow nozzles apply water only around the occupied suit zone.

One overhead spray misses cuffs and footwear.Upper, middle and lower circuits create height-specific coverage.

Scale blocks the fine nozzles.A cleanable strainer and line-flush connections protect the spray circuit.

Wet suits drip into the dry corridor.The programmed hold period allows drain-down before the exit lock releases.

Typical Applications

Cytotoxic processing exitsFine-chemical pilot plantsNanomaterial suitesControlled waste-transfer rooms

Technical Parameters

Representative dimensions for a zoned suit wet-down shower are shown below.

Core Material	PIR-insulated SUS 304 or SUS 316L chamber with low-flow spray bars, strainer and sanitary drain
Panel Thickness	60-75 mm insulated enclosure panels
Effective Width	900-1300 mm clear spray-zone width
Maximum Length	Up to 2000 mm chamber length
Steel Facing Thickness	1.2-1.5 mm stainless-steel internal skin
Core Density	40-45 kg/m³ rigid PIR insulation
Thermal Conductivity	0.021-0.026 W/(m·K) for the panel insulation
Surface Finish	Brushed stainless steel with coved welds, cleanable spray bars and textured floor
Joint Type	Liquid-tight panel seams with sanitary clamp pipe joints and compression-gasketed doors
Customization	Available based on the intended application and operating environment.

Available Options

Heated rinse-water loopAutomatic line flushingBoot-level auxiliary ringConductivity-monitored supply
