Laminar Flow and Containment Equipment
Isolator Glove Integrity Tester

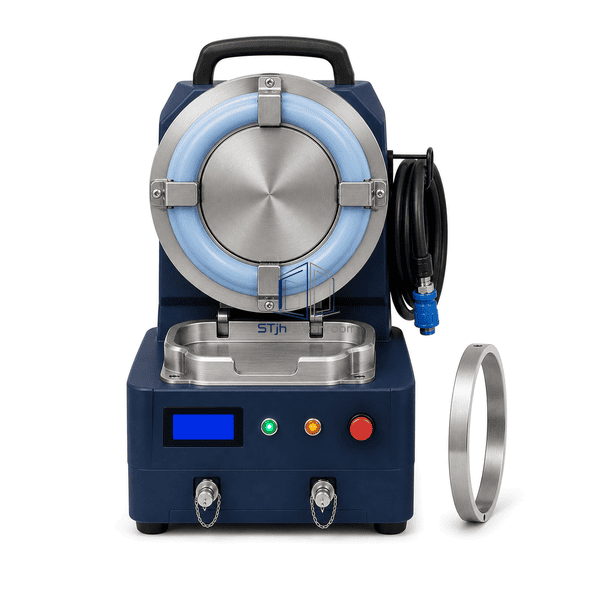

A portable pressure-decay test head that seals inside an isolator glove port, inflates the glove and measures pressure loss without removing the sleeve assembly.
- In-Situ Pressure-Decay Test
- Inflatable Port Seal
- Wireless Portable Test Head
- Multiple Port Adapter Options
Product Introduction

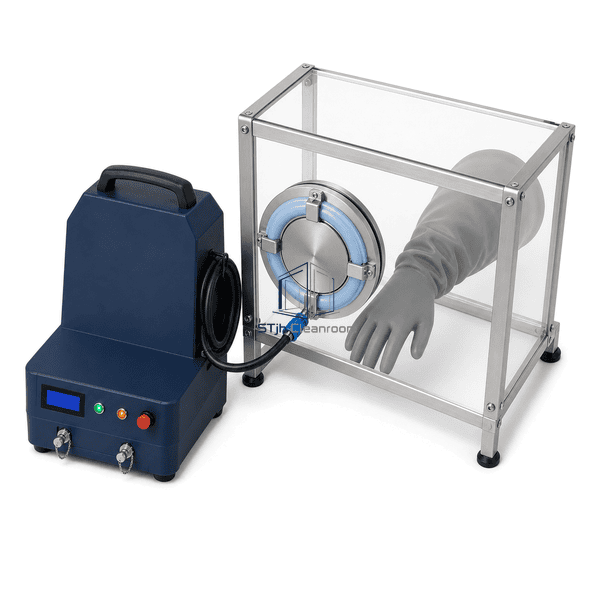

The glove integrity tester attaches to the isolator or RABS glove ring from inside the chamber. An inflatable circumferential seal fixes the lightweight test head in the port, then the instrument fills the glove and sleeve to the selected test pressure and records the decay over time. Battery power and wireless communication reduce hoses and cables across the barrier. Adapter sizes, test pressure and acceptance settings are matched to the actual glove material and port geometry.
Key Features
Pressure-decay measurement checks the glove and sleeve while installed in the port.

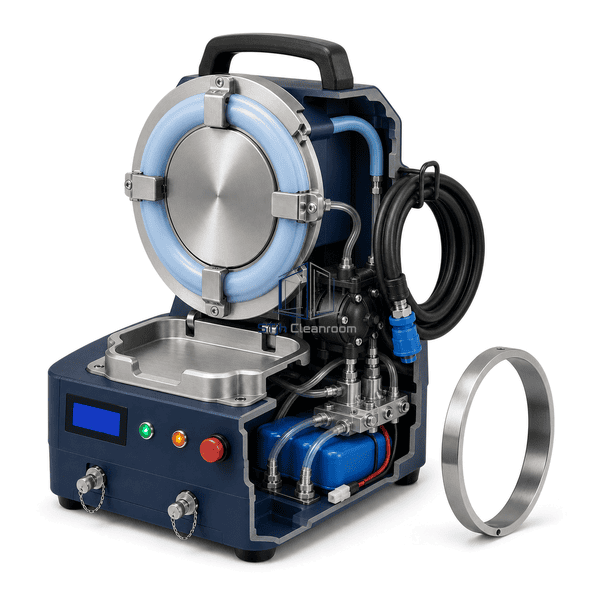

Battery power removes an external pneumatic hose from the chamber.
Wireless control can manage one or several test heads from a tablet or workstation.
Interchangeable adapters support different glove-ring diameters.
Customer Product Concerns
Gloves are flexible barrier components that must be checked in their installed condition without creating a new leak around the test connection.

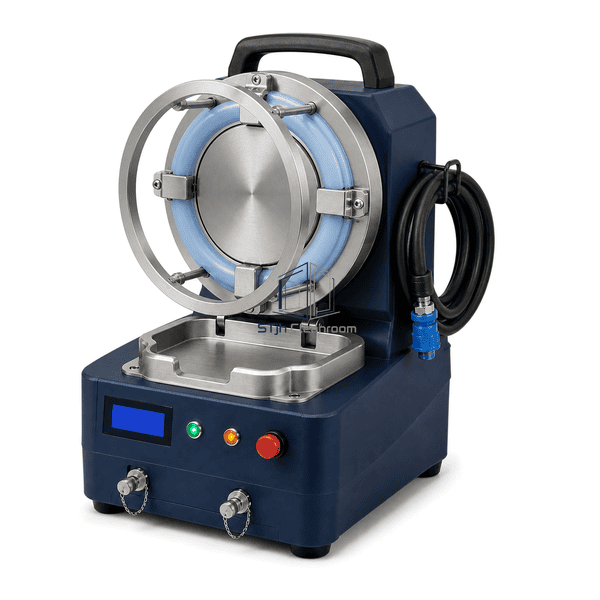

A rigid test plug damages or misaligns the glove ring.A lightweight head with an inflatable seal adapts to the port circumference.
External hoses obstruct adjacent glove positions.Battery power and wireless control keep the installed test head self-contained.
Different glove materials behave differently under pressure.Test pressure, stabilization and measurement time are configured for each glove type.
One adapter does not fit all barrier systems.Interchangeable port adapters cover the selected glove-ring dimensions.
Typical Applications
Aseptic isolator glove checksContainment isolator maintenanceRABS glove managementRoutine barrier inspection
Technical Parameters
Typical configurable construction ranges for an isolator glove integrity tester are listed below.
| Core Material | Anodized aluminum or SUS316L test head with engineering-polymer housing and inflatable silicone sealing ring |
|---|---|
| Panel Thickness | 3-8 mm instrument housing and adapter wall sections |
| Effective Width | 200-400 mm compatible glove-port diameter |
| Maximum Length | Up to 450 mm overall portable test-head length |
| Steel Facing Thickness | 1.5-3.0 mm SUS316L adapter and protective components |
| Core Density | 1150-1300 kg/m³ for engineering-polymer housing components |
| Thermal Conductivity | 0.20-0.35 W/(m·K) for the engineering-polymer housing |
| Surface Finish | Smooth cleanroom-compatible polymer with anodized or electropolished metal adapters |
| Joint Type | Tool-free inflatable circumferential port seal with interchangeable adapter ring and integrated pressure connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
Standalone or integrated controllerSingle-head or multi-head charging trolleyPort-specific adapter setsWireless data and report interface
Planning a Isolator Glove Integrity Tester specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
