Personnel and Material Decontamination Equipment

Integrated Personnel Hygiene Station

A guided personnel lane combining two-hand sanitizing, footwear sole cleaning and optional controlled exit equipment.

Hand and sole hygiene in one lane
Guided personnel passage
Occupied-cycle controls
Removable wet-zone modules

Request a Quote Browse Products

Product Introduction

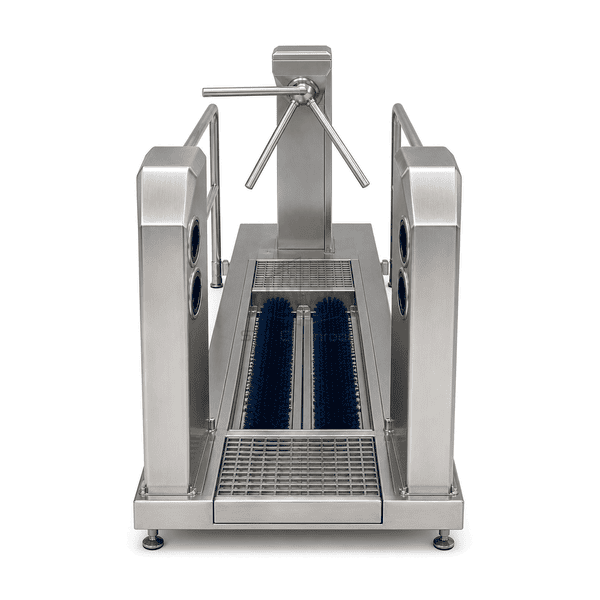

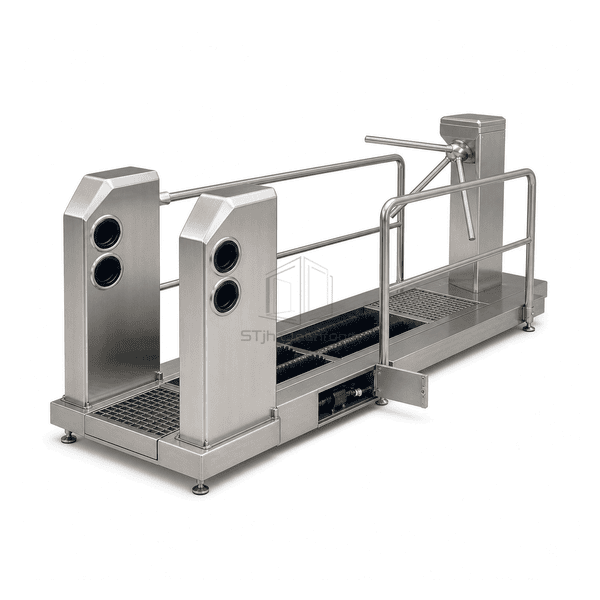

The Integrated Personnel Hygiene Station combines two-hand sanitizing and a rotating sole-cleaning track within one stainless steel entry lane. Personnel follow the fixed passage while hand ports and footwear modules operate according to the selected cycle logic. Brushes, drip trays and service panels are removable or accessible for routine sanitation, and compatible exit-control equipment can receive the station's configured completion output.

Key Features

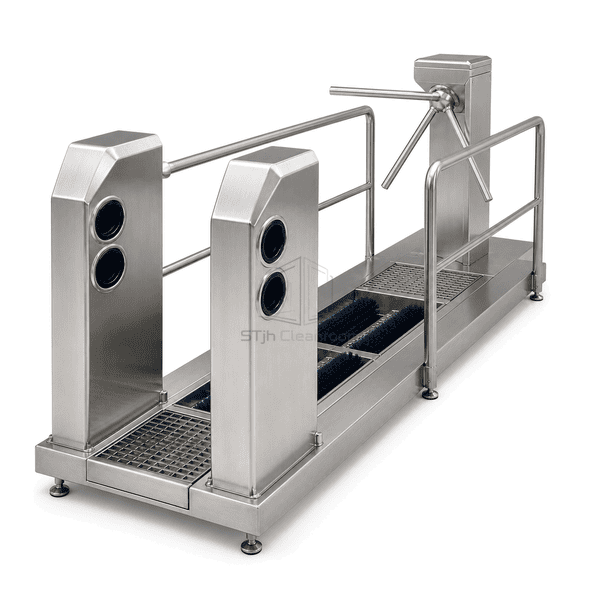

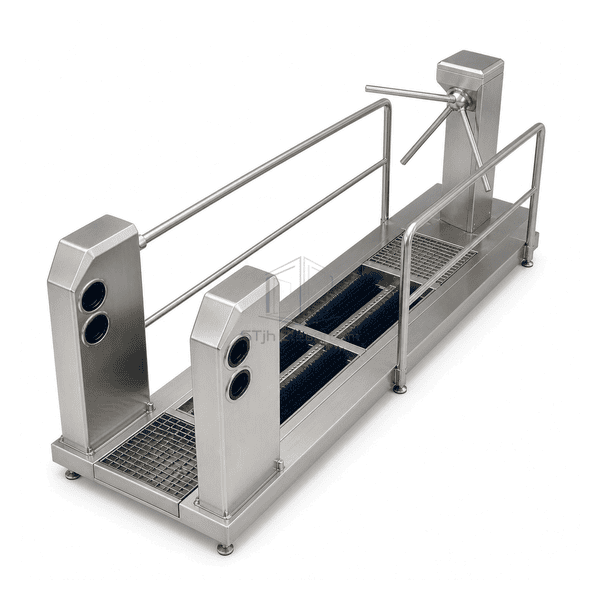

The hand ports and sole-cleaning track are arranged within one guided entry passage.

Presence sensors can limit brushes and liquid feeds to occupied cycles.

Two-hand positioning and sole cleaning can be configured as linked station stages.

Removable brush and drip-tray modules expose the wet zone for routine care.

The unit can be paired with compatible external exit-control equipment.

Customer Product Concerns

Separate footwear and hand devices take up space and can leave staff uncertain about the intended sequence at a busy personnel entry.

Personnel use hand sanitizer but bypass the footwear-cleaning device.The guided lane places the sole-cleaning track within the same route as the hand ports.

Several standalone units create overlapping queues and fragmented service access.One coordinated stainless frame brings the main hygiene stages into a single passage.

Brushes and liquid hardware are difficult to clean when built into separate machines.Removable cassettes, drip trays and service panels give access to the station modules.

Continuous liquid flow increases unnecessary utility use when no one is entering.Presence sensing can activate the relevant circuits only during an occupied cycle.

Typical Applications

Food processing production entrancesPharmaceutical support areasMedical consumables facilitiesCosmetic manufacturing hygiene barriersControlled ingredient preparation

Technical Parameters

Lane direction, brush type, hand-port arrangement and connected exit equipment can be selected for the facility entry workflow.

Core Material	Polypropylene brush and fluid components in a welded SUS304 hygiene frame
Panel Thickness	1.5–2.0 mm stainless steel enclosure panels
Effective Width	500–750 mm clear guided passage
Maximum Length	1800–3200 mm overall station length
Steel Facing Thickness	1.5–2.0 mm SUS304
Core Density	900–1100 kg/m³ for polypropylene brush cores
Thermal Conductivity	0.10–0.22 W/(m·K) for polymer process components
Surface Finish	Brushed SUS304 with non-slip grating and hygienic open-frame construction
Joint Type	Continuous welded frame with removable brush and hygiene-service modules
Customization	Available based on the intended application and operating environment.

Available Options

Dry or wet sole-cleaning trackHand-wash module before sanitizingOne-way or return laneCompatible exit-control interface
