Air Filters and Chemical Filtration
HEPA Filter Gel Seal Channel
A continuous aluminum channel filled with soft silicone gel that accepts a housing knife edge to form a conformable HEPA or ULPA perimeter seal.
- Resealable Silicone Gel
- Continuous Perimeter Channel
- Knife-Edge Interface
- Low Compression Force
Product Introduction

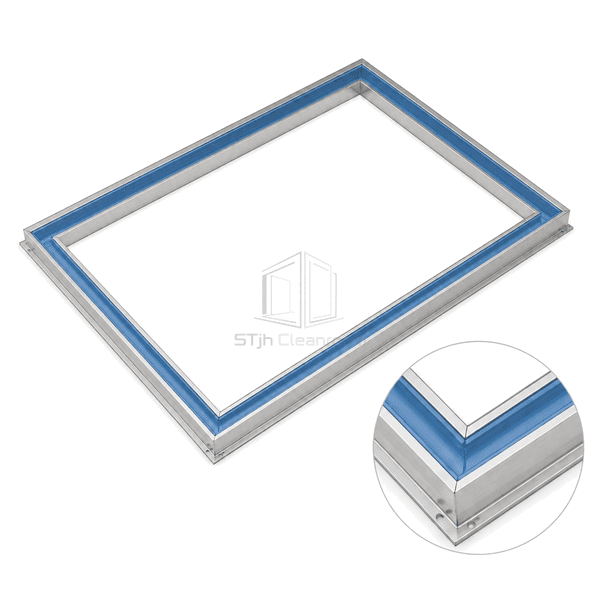

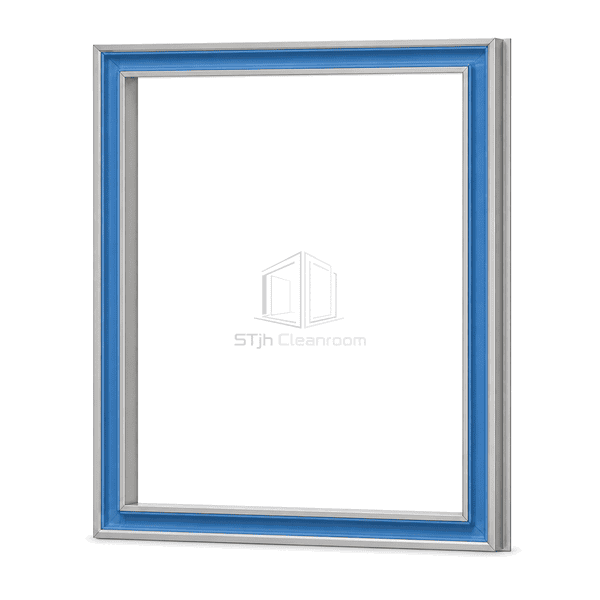

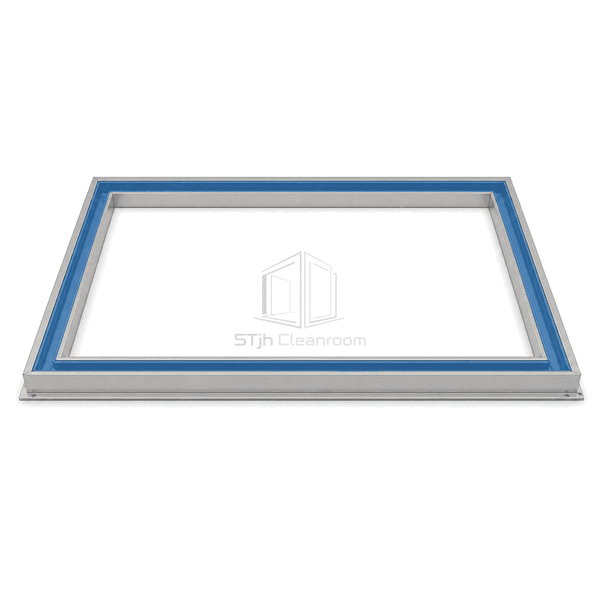

The gel seal is a U-shaped channel integrated into the downstream face of a HEPA or ULPA frame. A non-flowing silicone compound fills the channel and surrounds the terminal or holding-frame knife edge when the filter is clamped into place. Unlike a flat foam gasket, the gel conforms around small surface irregularities with limited compression travel. The channel is closed at the corners to keep gel depth continuous across the full perimeter.
Key Features
A rigid aluminum channel controls gel depth and prevents edge spread.
The seal can accept repeated knife-edge insertion when the gel surface remains clean and intact.
Corner joints are sealed to maintain one continuous perimeter reservoir.
Customer Product Concerns
A terminal filter needs a low-bypass seal within limited clamp travel and around small knife-edge irregularities.
A flat gasket does not conform to a slightly uneven knife edge.Soft gel displaces around the edge and maintains contact along both sides.
Excess gel escapes when the filter is inverted for installation.A thixotropic non-flowing formulation remains inside the enclosed channel.
An open corner creates a direct bypass route.Mitered and sealed channel corners preserve the continuous gel reservoir.
Deep knife-edge insertion bottoms against the aluminum channel.Specified gel depth and clamp stop keep the metal edge within the soft sealing zone.
Typical Applications
Cleanroom terminal HEPA filtersULPA ceiling modulesGel-seal holding framesFan filter unitsLow-bypass final filter banks
Technical Parameters
Representative construction ranges for a HEPA gel-seal channel are listed below.
| Core Material | Non-flowing two-component silicone gel in an extruded aluminum U-channel |
|---|---|
| Panel Thickness | 10–18 mm filled channel depth |
| Effective Width | 12–25 mm gel channel width |
| Maximum Length | Up to 1220 mm per continuous filter-frame side |
| Steel Facing Thickness | 0.8–1.5 mm equivalent aluminum channel wall thickness |
| Core Density | 850–1050 kg/m³ cured silicone gel density |
| Thermal Conductivity | 0.15–0.25 W/(m·K) for cured silicone gel |
| Surface Finish | Natural anodized aluminum channel with translucent blue silicone gel |
| Joint Type | Continuous closed-corner gel channel mating with a stainless or coated-steel knife edge |
| Customization | Available based on the intended application and operating environment. |
Available Options
Blue or clear silicone gelDifferent channel depthsAluminum or stainless perimeter channelFactory-filled replacement frame
Planning a HEPA Filter Gel Seal Channel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
