Flush-Mounted Cleanroom Utility Wall Panel

A factory-prepared wall module that presents electrical, data and process-utility connections on one flush, cleanable interface while concealing protected service routes behind the room face.

Flush Utility Interface
Organized Point-of-Use Services
Stainless Cleanable Face
Factory-Prepared Connections

Request a Quote Browse Products

Product Introduction

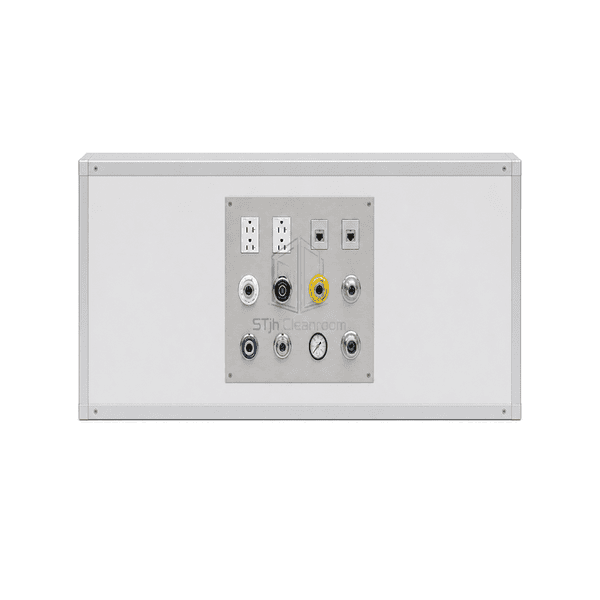

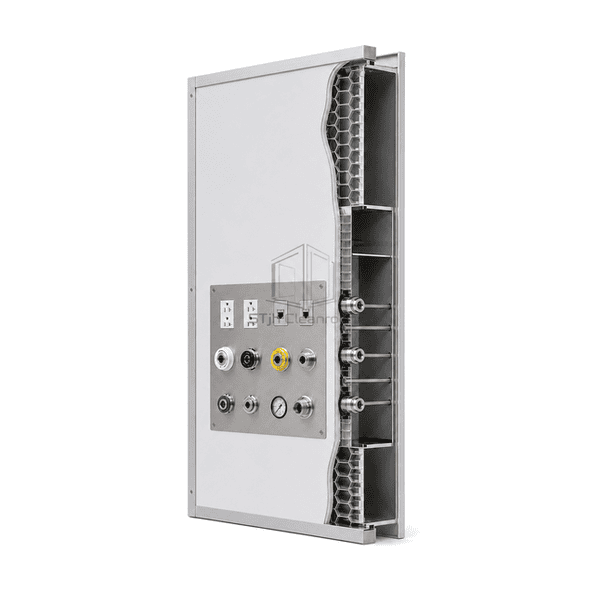

The Flush-Mounted Cleanroom Utility Wall Panel brings frequently used services to an orderly point-of-use station without surface-mounted boxes or exposed conduit. A reinforced stainless steel interface plate sits level with the surrounding partition and carries labeled electrical, data, gas, vacuum or purified-water connections. Aluminum honeycomb infill stabilizes the panel around the service zone, while internal bushings separate and protect each route through the wall. The compact arrangement improves access for operators and leaves the room surface easy to wipe around every outlet.

Key Features

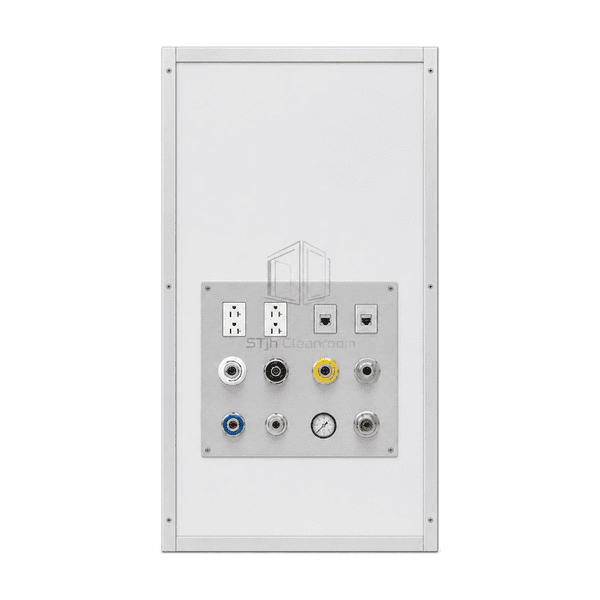

A single recessed interface consolidates multiple utilities in a predictable operator location.

Reinforced stainless steel supports connectors without distorting the surrounding wall skin.

Guided penetrations protect tubes and cables as they pass through the panel thickness.

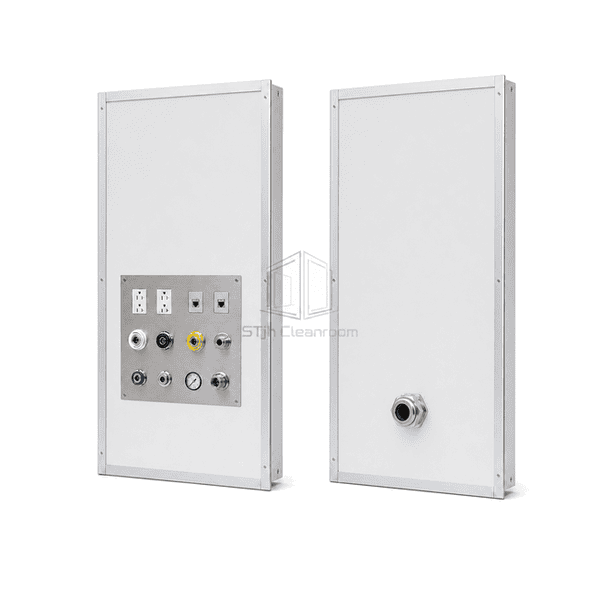

Flush bezels and sealed boundaries avoid dust shelves behind conventional surface boxes.

Separate service zones can distinguish electrical, data and fluid connections at a glance.

Customer Product Concerns

Utility-panel users need orderly service grouping, robust connector support, wipeable transitions and clear separation between different media.

Scattered wall outlets create long exposed cable and hose runs around process equipment.A consolidated point-of-use panel positions the required services beside the workstation.

Repeated connector use can loosen thin wall skins and damage sealant around fittings.A rigid stainless plate and internal frame absorb insertion and withdrawal forces.

Mixed electrical and fluid services are difficult to identify on an unstructured wall.Dedicated connector zones and durable labels separate each utility family clearly.

Proud boxes and conduit traps are awkward to wipe after production.Flush hardware and sealed edges maintain a continuous, accessible cleaning path.

Typical Applications

Biopharmaceutical process suitesLaboratory point-of-use service stationsAseptic filling support areasMedical-device test roomsClean manufacturing equipment interfaces

Technical Parameters

The dimensions below describe a reinforced honeycomb utility module with a flush stainless steel service interface.

Core Material	Aluminum honeycomb with reinforced stainless steel utility interface zone
Panel Thickness	50 or 100 mm
Effective Width	600, 980 or 1180 mm
Maximum Length	3000 mm
Steel Facing Thickness	0.80–1.00 mm
Core Density	Approximately 27 kg/m³
Thermal Conductivity	0.11–0.15 W/(m·K)
Surface Finish	Brushed 304 or 316L stainless utility face with coated-steel surround
Joint Type	Flush framed perimeter with continuous hygienic gasket or sealant recess
Customization	Connector type, layout and panel dimensions can be configured for the intended operating station

Available Options

Electrical, data and control connectionsCompressed air, nitrogen and vacuum outletsPurified-water or clean-steam user pointsPressure display and monitoring-device apertures
