ESD Shelving

ESD Shelving is a modular grounded storage rack for organized handling of sensitive electronics, conductive containers and packaged assemblies inside an ESD protected area.

Groundable steel frame bonds all conductive levels into one controlled storage structure.

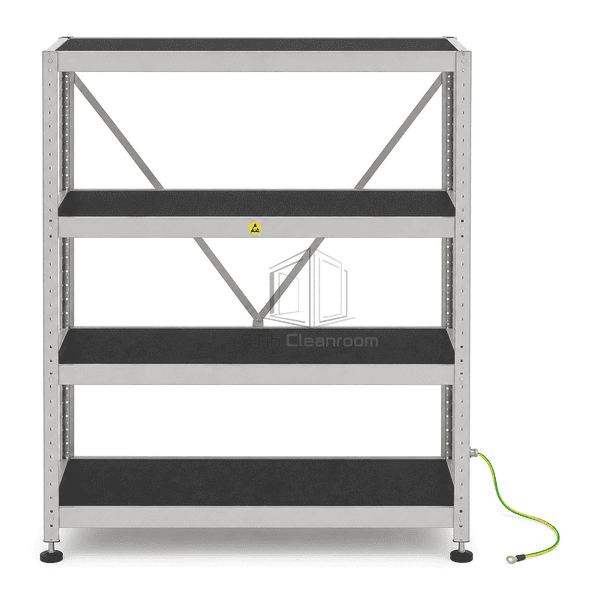

Adjustable shelves accommodate totes, trays and component bins of different heights.

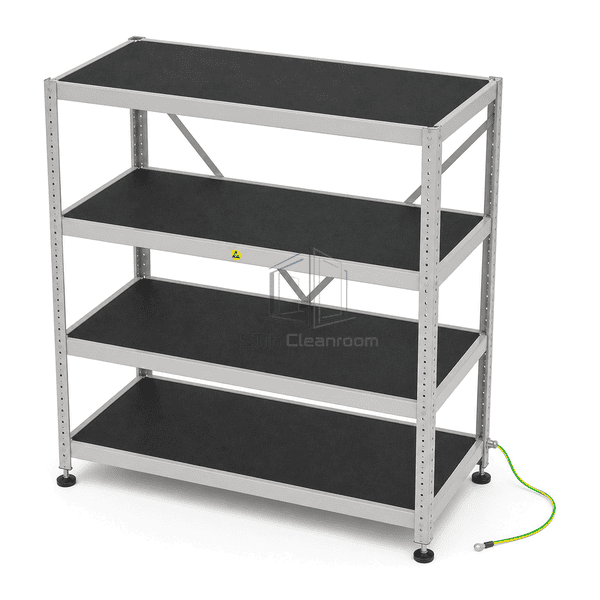

Dissipative shelf liners protect sensitive packages from direct contact with bare metal.

Request a Quote Browse Products

Product Introduction

The system combines powder-coated steel uprights with adjustable steel shelf panels and static-dissipative liners. Metal-to-metal hardware maintains continuity between structural members, while a clearly identified ground lead bonds the rack to the facility ESD grounding network. Perimeter shelf lips retain containers without creating inaccessible cavities. Level spacing, bay width and reinforcement can be selected around the stored load and material-flow plan.

Key Features

Conductive steel frame creates a robust common bonding structure.

Adjustable shelf positions suit changing container and carton sizes.

Dissipative liners provide a controlled contact surface for ESDS packaging.

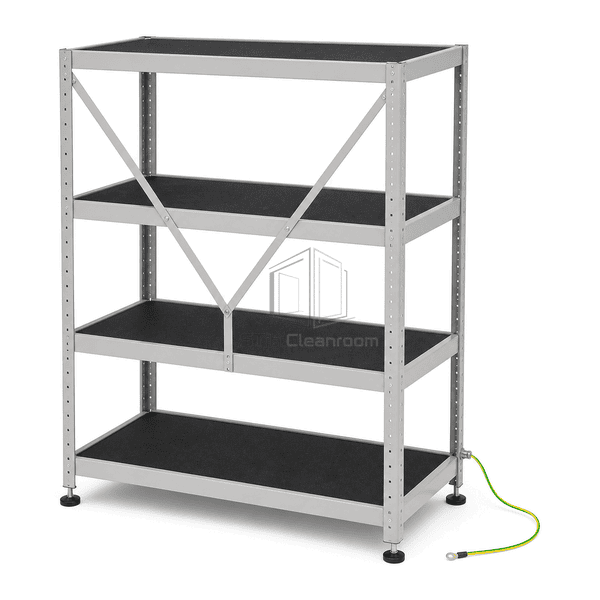

Dedicated ground lug gives a visible, serviceable connection point.

Light-gray semiconductive powder coat supports visual cleanliness inspection.

Bolted modular construction permits bay extension and replacement of individual parts.

Level lips and optional dividers improve stock retention and organization.

Customer Product Concerns

Storage racks must carry practical loads while ensuring conductive structures and contact surfaces remain at a controlled potential.

Isolated metal shelves can develop different potentials.Bonded steel members and a dedicated lug connect all levels to a common ground path.

Bare painted steel may provide inconsistent package contact.Dissipative shelf liners create a repeatable contact surface.

Fixed shelf spacing wastes vertical capacity.Adjustable level positions match the actual container height.

Ground cords are hidden and difficult to inspect.The external labeled connection remains visible for routine verification.

A complete rack is costly to replace after local damage.Bolted modular components allow targeted shelf, brace or upright replacement.

Typical Applications

ESD-protected electronics stockrooms.Line-side storage for trays, bins and totes.Semiconductor and PCB work-in-process areas.Sensitive spare-parts and test-equipment stores.Medical-electronics and aerospace assembly support.Controlled returnable-packaging staging.

Technical Parameters

The representative specification describes a five-level freestanding rack. Bay dimensions, shelf load, liner material, resistance, bracing and grounding accessories are chosen for the storage environment.

Core Material	Powder-coated carbon-steel uprights, braces and formed steel shelf panels
Panel Thickness	0.8–2.0 mm formed shelf and upright material thickness
Effective Width	600–1500 mm clear shelf width per bay
Maximum Length	Up to 2400 mm overall rack height
Steel Facing Thickness	0.8–1.5 mm exposed formed-steel shelf thickness
Core Density	Approximately 7850 kg/m³ carbon-steel density
Thermal Conductivity	45–60 W/(m·K) for the steel structure
Surface Finish	Light-gray semiconductive powder coat with removable dark dissipative shelf liners
Joint Type	Bolted modular frame with adjustable shelf clips and dedicated ground lug
Customization	Available based on the intended application and operating environment.

Available Options

Two to seven shelf levels.Single bay or linked multi-bay installation.Dissipative rubber, vinyl or conductive shelf liner.Rear and side cross-bracing.Shelf dividers, label rails and bin fronts.Leveling feet or conductive castor base.Alternative width, depth, height and load rating.

Planning a ESD Shelving specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
