ESD and Antistatic Products
Conductive Flooring
Homogeneous conductive vinyl flooring forms a durable, cleanable surface that is installed over conductive adhesive and a planned copper grounding network.
- Through-body conductive vinyl maintains function beyond the surface layer.

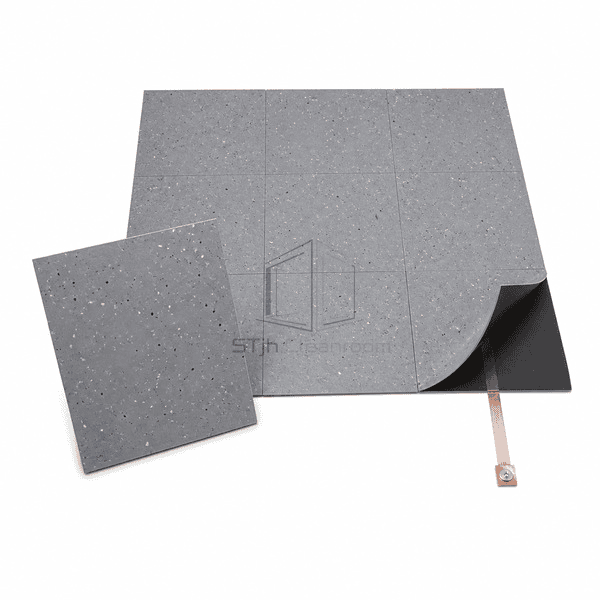

- Conductive adhesive and copper strips create a planned route to earth.

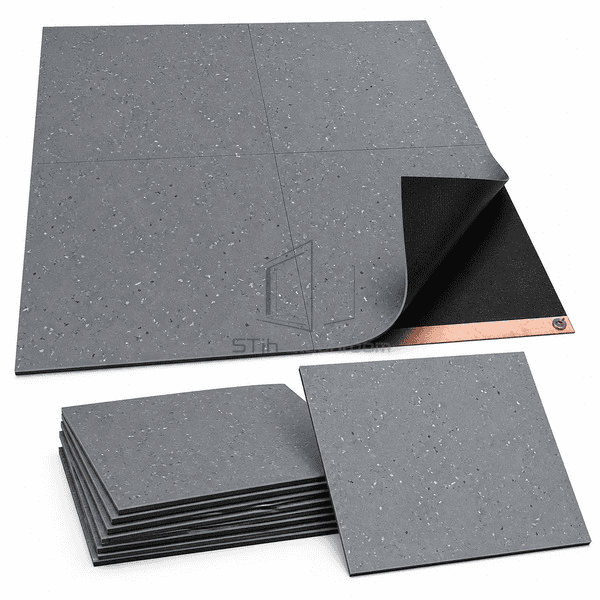

- Tile or sheet formats provide a smooth cleanable finish for controlled interiors.
Product Introduction

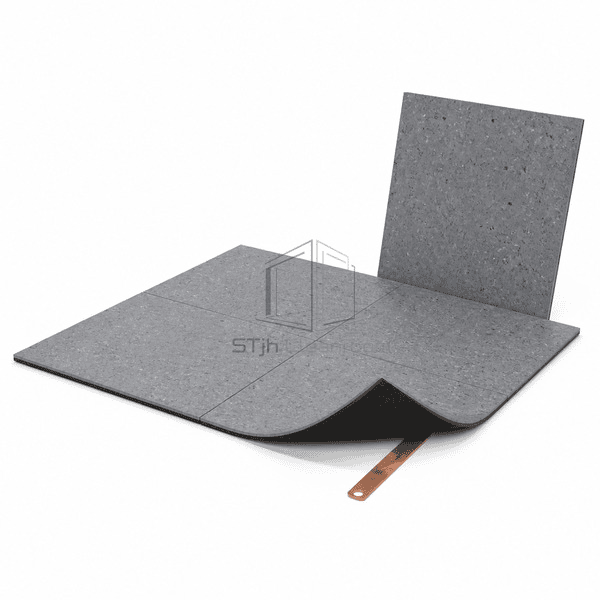

Conductive Flooring is a compact homogeneous vinyl covering with electrically active material distributed through its thickness. It is available as precision-cut tiles or sheet material for installation over a prepared substrate. Conductive adhesive couples the covering to copper strips connected to the building's designated grounding system. Heat-welded sheet seams or accurately fitted tile joints create a smooth surface suited to sensitive electronics, laboratories and controlled manufacturing areas.
Key Features

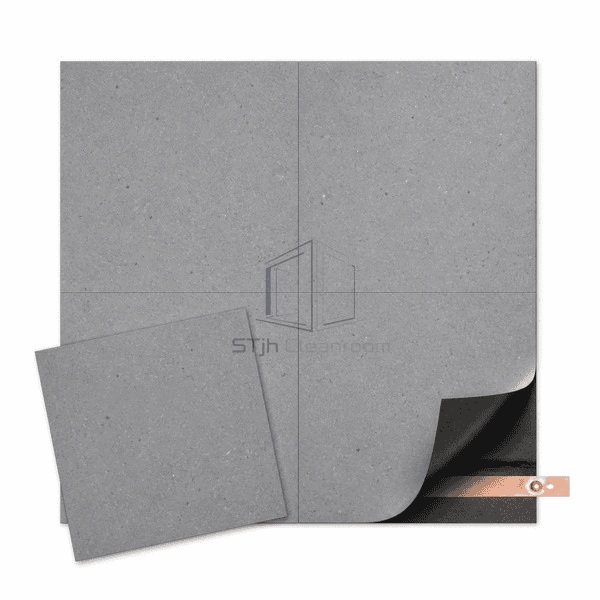

Conductive adhesive and copper-strip network create a planned route to ground.
Dense, low-glare surface supports routine cleaning and decontamination.
Tile and sheet formats allow different room geometries and repair strategies.
Low residual indentation supports rolling chairs and light equipment traffic.
Neutral speckled colors help conceal minor service marks without decorative clutter.
Customer Product Concerns
Conductive flooring performs as an installed electrical system, so substrate preparation, adhesive coverage, copper-strip continuity, joint execution and maintenance must be coordinated rather than evaluated separately.
Challenges IntroductionConductive flooring performs as an installed electrical system, so substrate preparation, adhesive coverage, copper-strip continuity, joint execution and maintenance must be coordinated rather than evaluated separately.
Electrical performance varies across the roomA designed conductive-adhesive and copper-strip network creates repeatable ground connections beneath the covering.
Surface properties decline after wearHomogeneous construction carries the functional material through the full floor thickness rather than relying on a thin coating.
Joints collect contaminationPrecisely fitted tiles or heat-welded sheet seams create a smooth, accessible cleaning surface.
Rolling loads leave permanent marksCompact vinyl construction is selected for low residual indentation under chairs and light technical equipment.
Future localized repairs are difficultTile formats allow damaged units to be replaced locally while sheet formats minimize joint count in larger zones.
Typical Applications
Electronics and semiconductor production rooms.Cleanrooms and controlled laboratories.Server, telecom and equipment spaces.Medical-device and precision assembly areas.Test facilities handling electrostatic-sensitive components.
Technical Parameters
The specifications below reflect common homogeneous conductive vinyl systems. Format, joint treatment, adhesive and copper-strip layout are finalized together for the substrate, room geometry and grounding design.
| Core Material | Homogeneous electrically conductive polyvinyl chloride with carbon-based conductive components |
|---|---|
| Panel Thickness | 2.0 mm |
| Effective Width | 610 mm tile width or 2000 mm sheet width |
| Maximum Length | Up to 23000 mm sheet roll length |
| Steel Facing Thickness | 0.1 mm nominal copper grounding-strip thickness |
| Core Density | 1450–1550 kg/m³ |
| Thermal Conductivity | 0.20–0.25 W/(m·K) |
| Surface Finish | Matte low-glare homogeneous vinyl with fine non-directional chip pattern |
| Joint Type | Butt-jointed tiles or heat-welded sheet seams over conductive adhesive and copper strips |
| Customization | Available based on the intended application and operating environment. |
Available Options
Conductive or static-dissipative electrical ranges.Tile or sheet format.Neutral gray, blue, green and beige color families.Alternative tile dimensions.Matching welding rod for sheet seams.Conductive adhesive and copper grounding-strip package.
Planning a Conductive Flooring specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
