Cleanroom Doors, Windows and Interlock Systems

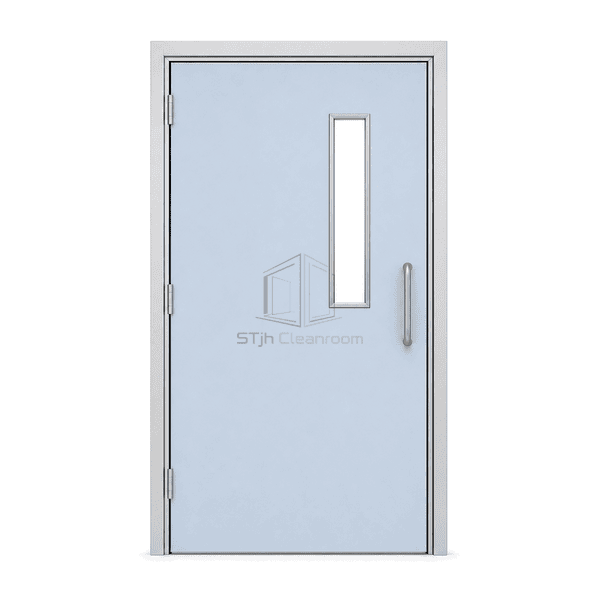

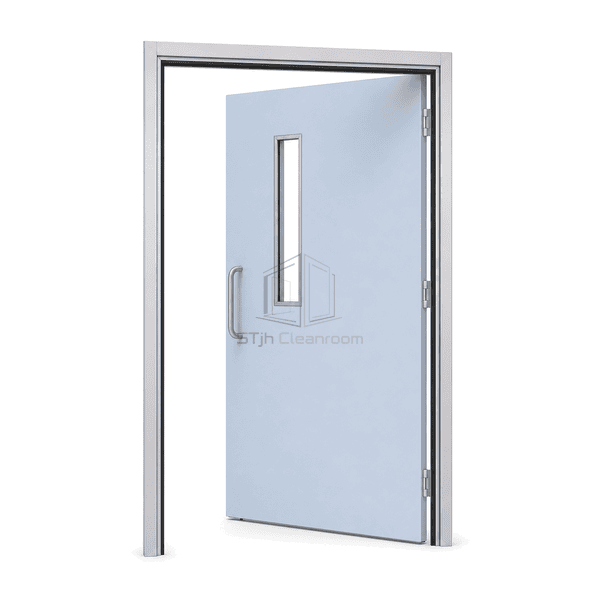

Compact HPL Cleanroom Door

A reinforced 50 mm hygienic leaf clad with compact high-pressure laminate, offering a hard, colour-stable surface for laboratories, healthcare corridors and busy change areas.

5 mm Compact HPL Faces
Hard Impact-Tolerant Surface
Wide Colour Selection
Sealed Molded Edge Detail

Request a Quote Browse Products

Product Introduction

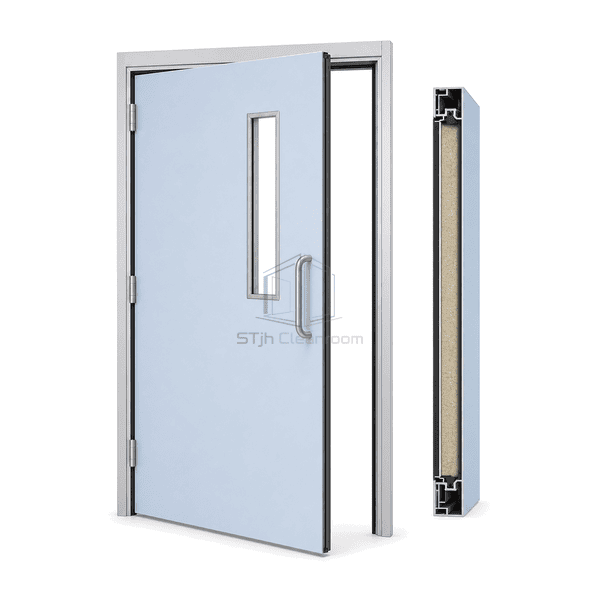

The Compact HPL Cleanroom Door uses dense laminate faces over a reinforced internal sheet and lightweight honeycomb. HPL supplies the visible colour and wear surface, while the concealed reinforcement supports locks, hinges and closers. Sealed edge profiles prevent the layered construction from being exposed at the perimeter. This format is useful where interior designers need stronger colour differentiation or a warm non-metal appearance without using porous timber faces.

Key Features

Dense compact laminate resists routine abrasion and many common cleaning agents.

Pigmented decorative faces provide wayfinding colours without a site-applied paint layer.

Concealed sheet reinforcement spreads hinge and lock loads through the leaf.

Closed edge profiles isolate the honeycomb and laminate cut edges from cleaning moisture.

Smooth faces can be machined precisely for flush glazing and integrated hardware.

Customer Product Concerns

HPL door buyers want a durable coloured surface without exposed substrate edges, weak hardware fixings or difficult-to-clean trim.

Painted colour coding becomes scratched and uneven after repeated contact.Factory laminate provides a consistent hard colour surface across the complete leaf.

Raw laminate edges reveal layered material and absorb moisture.Molded or extruded perimeter caps close every machined edge.

Honeycomb alone does not hold heavy closer and lock screws reliably.Galvanized reinforcement inserts are bonded behind every hardware zone.

Projecting glazing beads interrupt the otherwise flat laminate face.Flush-set glass and slim sealed trims maintain an even cleaning plane.

Typical Applications

Hospital clean corridorsLaboratory suitesGowning and changing roomsMedical-device facilitiesPharmaceutical support areas

Technical Parameters

Representative dimensions for a reinforced compact HPL cleanroom door leaf are listed below.

Core Material	Flame-retardant paper honeycomb with galvanized reinforcement inserts
Panel Thickness	45-50 mm door leaf
Effective Width	800-1200 mm single-leaf clear opening
Maximum Length	2400 mm maximum leaf height
Steel Facing Thickness	0 mm steel facing; 1.2 mm concealed galvanized reinforcement beneath 5 mm compact HPL faces
Core Density	30-50 kg/m³ paper honeycomb
Thermal Conductivity	0.07-0.10 W/(m·K) typical paper honeycomb range
Surface Finish	Smooth compact high-pressure laminate in selected solid colour

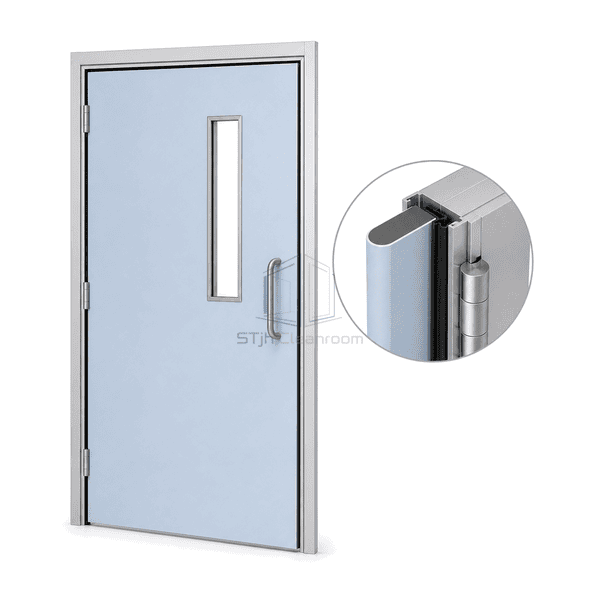

Joint Type	Sealed molded leaf edge within an aluminum or stainless steel gasketed frame
Customization	Available based on the intended application and operating environment

Available Options

Contrasting two-side coloursFlush observation windowStainless kick protectionAntimicrobial laminate selection

Planning a Compact HPL Cleanroom Door specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
