Cleanroom Wipe Dispenser

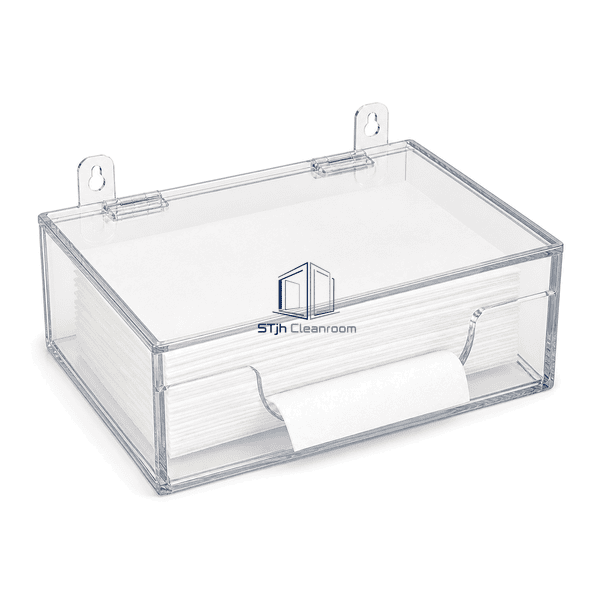

Clear high-impact PETG cleanroom wipe dispenser with an enclosed single compartment, hinged refill lid, slanted feed floor and wall-mount keyhole tabs.

Clear enclosed bin keeps the remaining wipe supply visible

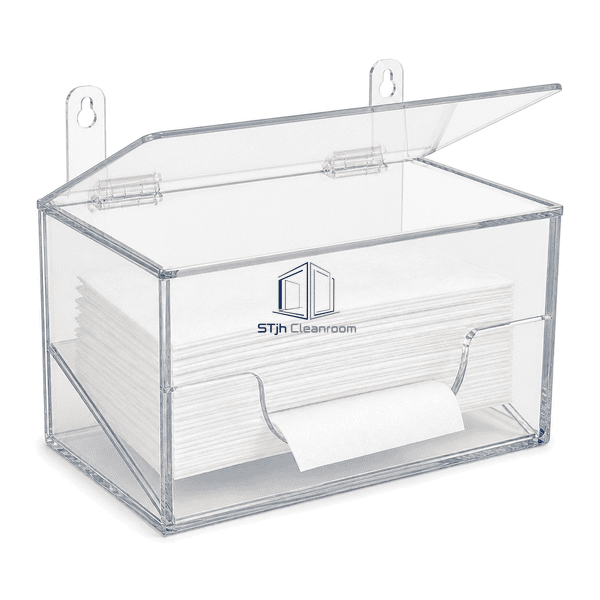

Hinged refill lid limits open handling during replenishment

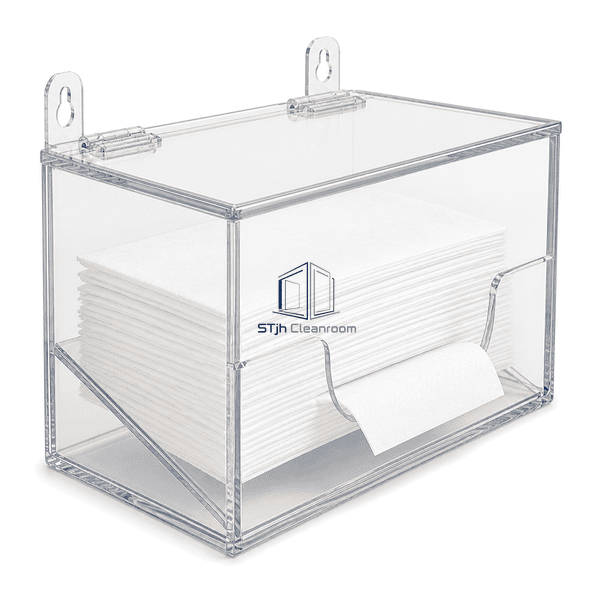

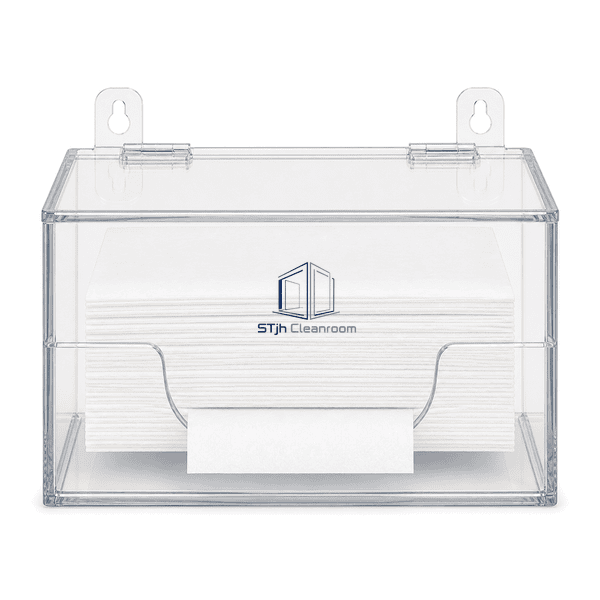

Slanted interior floor guides folded wipes toward the front access cutout

Request a Quote Browse Products

Product Introduction

The Cleanroom Wipe Dispenser provides a defined location for folded dry wipers at a gowning bench, cleaning station or controlled-area entry. Its transparent PETG housing allows a quick stock check without opening the bin, while the top lid gives refill access and closes over the stored stack. A sloped internal floor advances wipes toward the broad front cutout, where gloved users can remove one sheet without reaching deeply into the supply.

Key Features

Transparent housing supports visual inventory checks from the aisle

Enclosed top shields folded wipes from casual splash and settling debris

Wide radiused opening accommodates gloved single-sheet retrieval

Rear keyhole tabs permit compact wall placement above a work surface

Smooth bonded panels and polished edges simplify routine wipe-down

Customer Product Concerns

A wipe dispenser must balance quick access with protection of the unused stack. Incorrect wipe size, an overfilled bin or an incompatible cleaner can impair feeding or damage a clear thermoplastic housing.

Folded wipes may bind instead of moving toward the access opening.Match the compartment footprint to the folded wipe and retain clearance around the stack.

The remaining supply can be exposed when the lid is left open after loading.Use the hinged lid for replenishment and close it before returning the station to service.

Strong solvents may haze or stress-crack transparent sheet material.Confirm cleaning-agent compatibility with the selected PETG grade and use a low-residue method.

An overloaded wall bracket can distort the housing or loosen the mounting point.Select fasteners for the wall construction and verify secure engagement of both keyhole tabs.

Typical Applications

For cleanroom gowning areas, semiconductor wet-clean stations, pharmaceutical support rooms, medical-device assembly spaces, optics laboratories and controlled manufacturing cells that use folded dry wipers.

Technical Parameters

The following ranges describe a single-compartment transparent PETG dispenser for folded cleanroom wipers. Housing dimensions, access geometry and mounting details can be adapted to the wipe format and available wall or benchtop space.

Core Material	Clear high-impact PETG sheet with a slanted PETG feed floor
Panel Thickness	3.0 mm nominal PETG sheet
Effective Width	267-305 mm nominal dispenser width
Maximum Length	305 mm maximum standard longest dimension
Steel Facing Thickness	0 mm; no steel facing on the transparent dispenser
Core Density	Approximately 1270 kg/m³ for clear PETG sheet
Thermal Conductivity	Approximately 0.22 W/(m·K) for PETG sheet
Surface Finish	Crystal-clear smooth faces with polished transparent edges
Joint Type	Line-bent and bonded PETG seams with dual-hinge lid and keyhole wall tabs
Customization	Available based on the intended application and operating environment.

Available Options

Enclosed-lid or open-bin access configurationWall-mounted or benchtop placementCompartment size for 9 x 9 inch or 12 x 12 inch folded wipesClear PETG, clear acrylic or static-dissipative transparent PVC constructionCustom front cutout width and internal floor angleSingle or multiple dispensing compartments
