Personnel and Material Decontamination Equipment
Cleanroom Waste Pass-Through Box

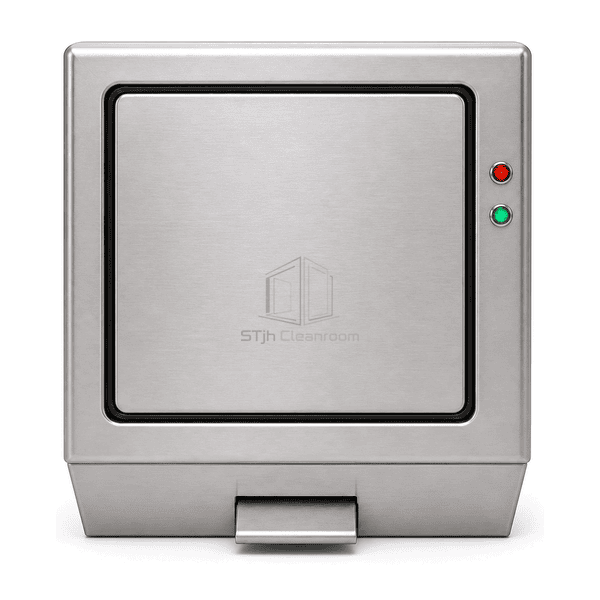

A dedicated stainless steel pass-through for moving bagged waste out of a clean area without sharing the incoming-material route.
- Dedicated outbound waste route
- Removable liner support
- One-way interlocked doors
- Sloped cleanable base
Product Introduction
The Cleanroom Waste Pass-Through Box separates dirty outbound material from the route used for clean incoming supplies. A removable liner frame supports closed waste bags away from the chamber walls, and the stainless base can be formed with a slope toward the collection side. Door interlocking guides the transfer sequence so that loading and collection occur from separate sides of the cleanroom boundary.
Key Features

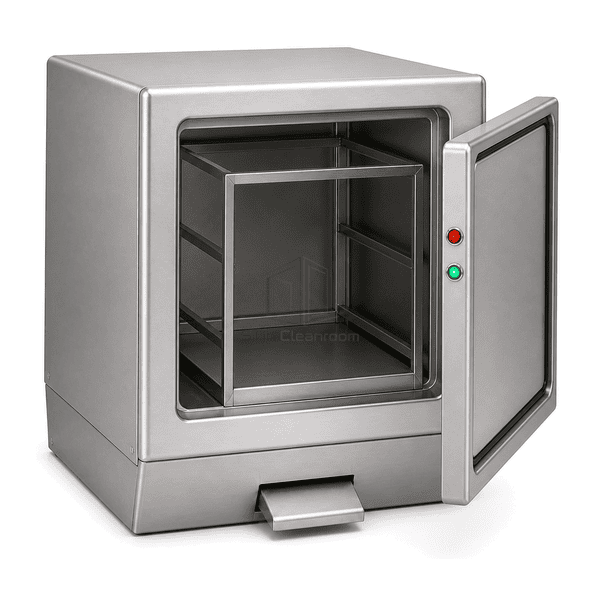

The removable liner frame reduces direct contact between bags and chamber surfaces.

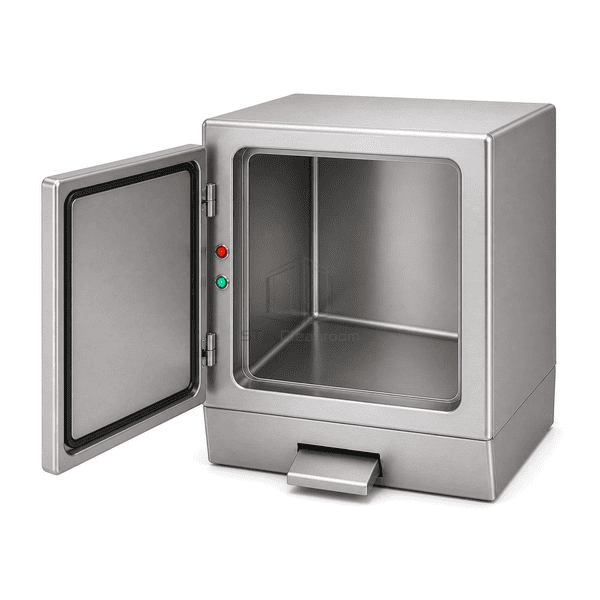

A sloped stainless base directs liquid residue toward an accessible collection edge.
Coved internal corners make post-transfer wipe-down more practical.

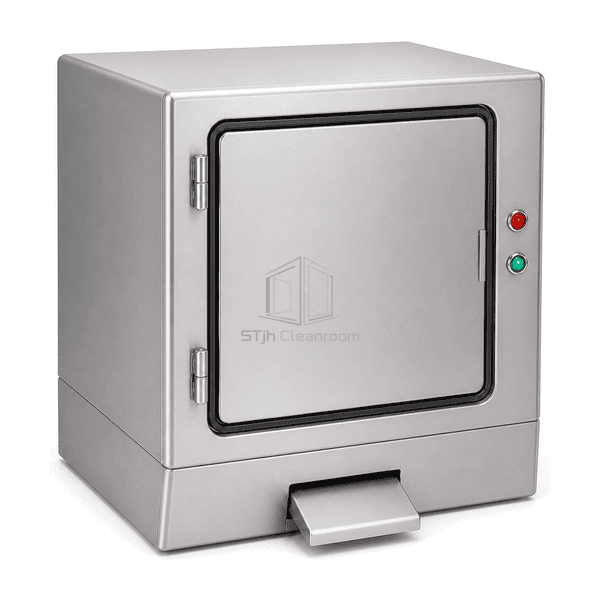

Foot, elbow or touch-free release arrangements can reduce handle contact.
Customer Product Concerns
Waste bags and clean supplies should not depend on the same chamber, surfaces or handling sequence.
Incoming materials and bagged waste share one standard pass box.A dedicated outbound waste unit creates a separate transfer route.
Waste bags snag on latches or hard internal edges.A smooth removable carrier supports the bag within the chamber.
Liquid residue remains in the rear of a flat transfer base.The sloped, sealed base directs residue toward a reachable collection side.
Staff touch door handles immediately after waste handling.Hands-free release options can be selected for the relevant transfer side.
Typical Applications
Pharmaceutical production waste removalLaboratory consumable disposalMedical cleanroom waste transferFood clean-zone packaging wasteBattery-process material disposal
Technical Parameters
Dimensions and door arrangement are selected around bag size, bin handling method and the desired outbound flow.
| Core Material | SUS304 or SUS316L stainless steel chamber with removable waste liner frame |
|---|---|
| Panel Thickness | 1.2–1.5 mm stainless steel chamber and door panels |
| Effective Width | 500–900 mm clear chamber width |
| Maximum Length | 600–1200 mm chamber depth |
| Steel Facing Thickness | 1.2–1.5 mm SUS304 or SUS316L |
| Core Density | 7900–8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for stainless steel |
| Surface Finish | Brushed stainless steel with coved interior and sloped base |
| Joint Type | Sealed chamber with one-way interlocked gasketed doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Foot-operated clean-side releaseFloor-level bin transferWash-down drain connectionBag-presence indication
Planning a Cleanroom Waste Pass-Through Box specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
