Cleanroom Material Handling and Storage

Cleanroom Vacuum Lifter

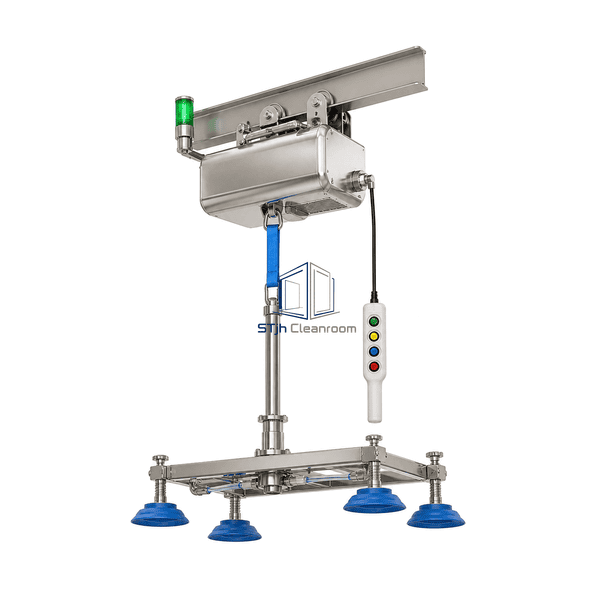

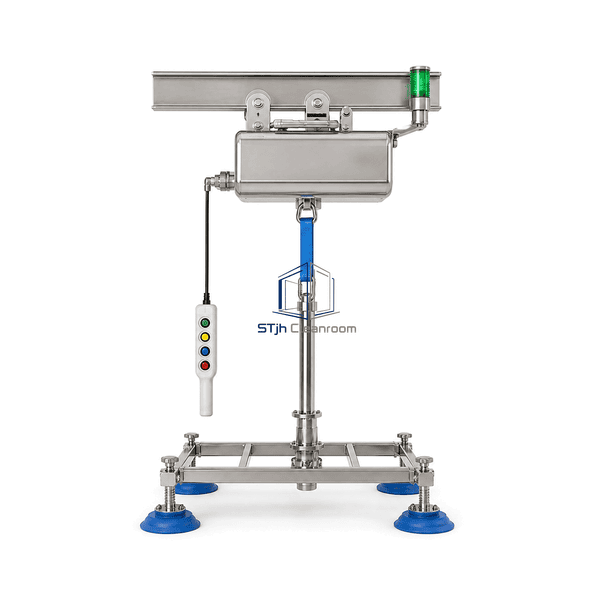

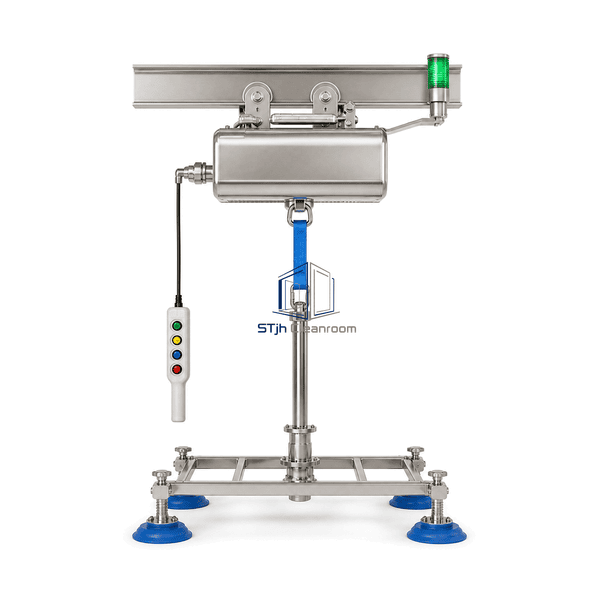

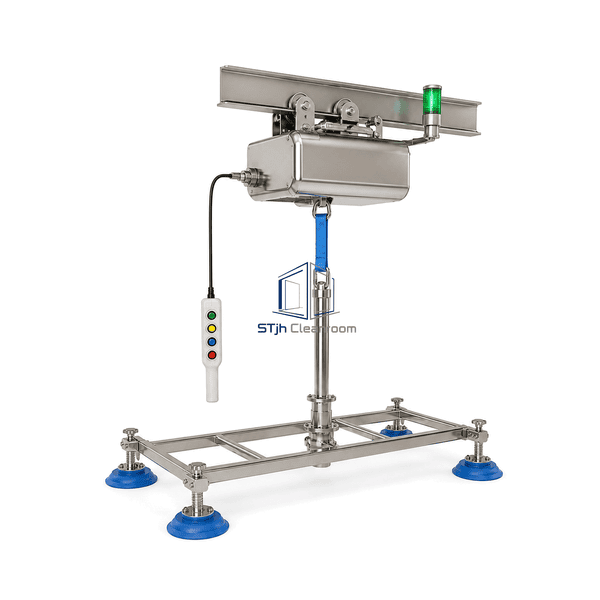

A stainless cleanroom vacuum lifter with four silicone suction cups, enclosed overhead drive and pendant control for ergonomic handling of smooth sealed loads.

Four-cup vacuum frame distributes holding force across smooth loads
Stainless construction presents cleanable controlled-area surfaces
Powered lift and pendant control reduce manual handling strain

Request a Quote Browse Products

Product Introduction

The cleanroom vacuum lifter combines a trolley-mounted enclosed lifting unit with a rigid stainless spreader and four compliant suction cups. A clean-compatible blue belt raises the vacuum head while the pendant controls vertical movement. Stainless external surfaces, accessible joints and replaceable cup components support cleaning and maintenance in controlled production spaces.

Key Features

Four-cup spreader stabilizes broad smooth workpieces.

Stainless external frame and suspension components resist cleaning agents.

Enclosed overhead drive keeps moving components away from the load.

Compliant silicone cups accommodate small surface variation.

Pendant control supports deliberate pick, lift and placement sequences.

Customer Product Concerns

Large smooth loads can be awkward to grip manually, while conventional lifting frames may introduce painted surfaces, exposed abrasion points or difficult-to-clean joints.

Uneven holding forceFour spaced cups distribute vacuum contact across the workpiece.

Operator fatiguePowered vertical motion reduces repeated manual lifting effort.

CleanabilityStainless external surfaces and removable cup components simplify access for cleaning.

Unexpected vacuum lossConfigurable monitoring, check valves and controlled-lowering functions can be selected for the risk assessment.

Typical Applications

Assisted transfer of smooth drums, sealed containers, sheet components, panels and packaged process materials in pharmaceutical, biotechnology, medical-device, food and electronics clean areas.

Technical Parameters

Vacuum is distributed from the central suspension assembly to four cup mounts positioned near the spreader corners. The lifting drive carries the complete vacuum head independently of the vacuum circuit. Cup material, frame dimensions, vacuum source, filtration, monitoring and safe-load behavior are selected for the workpiece surface and process risk. Suitability must be confirmed using the actual load geometry and porosity.

Core Material	304 or 316L stainless steel frame with clean-compatible silicone suction cups
Panel Thickness	2.0–4.0 mm hoist enclosure panels
Effective Width	400–1600 mm configurable suction frame width
Maximum Length	Up to 2500 mm configurable spreader length
Steel Facing Thickness	1.5–3.0 mm external stainless covers
Core Density	8000 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 14.6–16.2 W/(m·K) at room temperature
Surface Finish	Fine-brushed, mechanically polished or electropolished stainless steel
Joint Type	Trolley-mounted belt lift with central swivel suspension and four adjustable vacuum cup mounts
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316L stainless steel, alternative cup materials and diameters, adjustable cup spacing, remote vacuum pump, inline filter, vacuum reservoir, low-vacuum alarm, powered trolley, variable lifting speed and workpiece-specific pick heads.
