Cleanroom Installation Accessories

Cleanroom Skirting

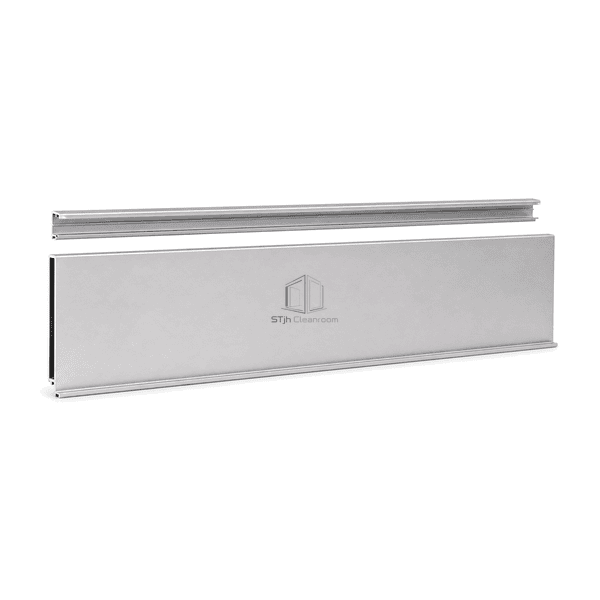

A 100 mm flat-faced anodized aluminium base profile with a separate concealed rear clip rail for a clean, screw-free finish at the lower edge of cleanroom walls.

100 mm Flat Face
Concealed Rear Clip Rail
Matte Anodized Aluminium
Up to 3000 mm Length

Request a Quote Browse Products

Product Introduction

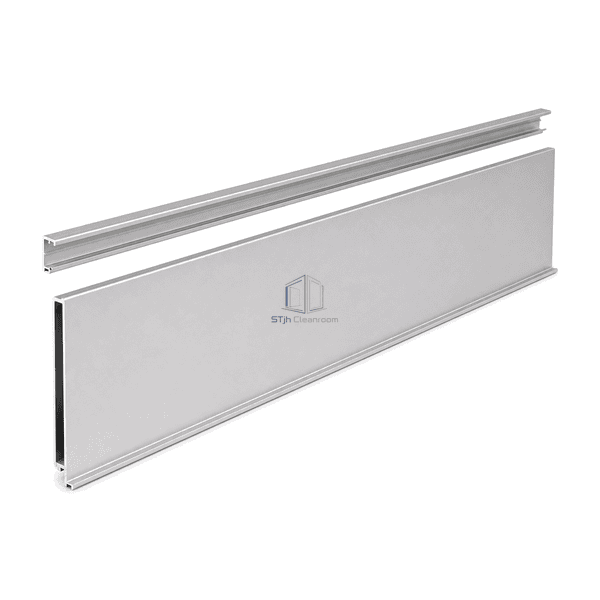

This cleanroom skirting uses a straight extruded aluminium fascia rather than a concave radius. The 100 mm visible face covers the lower wall edge, while narrow top and bottom returns stiffen the section without turning it into a coving profile. A dedicated aluminium carrier remains behind the fascia after installation, allowing the exposed cover to clip into place with no screw heads interrupting the front surface. Natural matte anodizing provides a restrained silver finish suited to modular cleanroom partitions, laboratory corridors and other controlled interiors.

Key Features

The broad planar face protects and finishes the low wall zone without introducing the sweeping internal radius used by cleanroom coving.

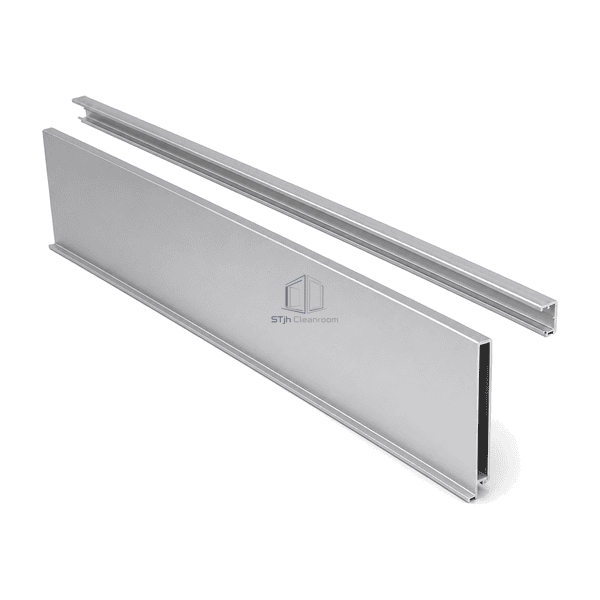

A separate continuous rear rail receives the fascia and keeps the mechanical attachment concealed after clipping.

One narrow return at each longitudinal edge reinforces the extrusion and gives the exposed top and floor lines a crisp termination.

A 100 mm visible height provides practical coverage at the wall base while retaining a compact projection into the room.

Matte natural anodizing controls glare, preserves clear aluminium midtones and supports routine wipe-down of the accessible surface.

Customer Product Concerns

The bottom edge of a partition is exposed to cleaning contact, small trolley scuffs and visual gaps where the wall meets the finished floor.

Visible screws and fixing recesses along the wall base can interrupt a simple cleaning pass.The rear clip rail carries the fascia while leaving the entire exposed aluminium face free of screw heads.

A thin decorative trim may not cover the low wall zone where mops, footwear and light equipment make frequent contact.The 100 mm-high face gives the lower wall a continuous protective finish without the bulk of an impact bumper.

Profiles intended for radius corners can be mistaken for a flat base finish and create an unwanted curved transition.This assembly retains a planar front with only narrow straight returns, clearly separating its skirting function from floor coving.

Long wall runs can look uneven when several exposed fastening methods or mismatched surface finishes are combined.Straight extruded lengths and a concealed continuous carrier establish a consistent silver base line across the partition run.

Typical Applications

Modular cleanroom partition basesPharmaceutical and biotechnology support corridorsMedical-device manufacturing roomsControlled laboratory circulation areasHygienic production and packaging interiors

Technical Parameters

The following values describe the selected 100 mm matte-anodized aluminium fascia and rear-clip configuration.

Core Material	Extruded EN AW-6063 aluminium fascia with a matching aluminium rear clip rail
Panel Thickness	1.6 mm nominal extrusion wall thickness
Effective Width	100 mm visible skirting height
Maximum Length	Up to 3000 mm per continuous profile
Steel Facing Thickness	0 mm; the selected configuration has no steel facing
Core Density	Approximately 2700 kg/m³ for the aluminium extrusion
Thermal Conductivity	Approximately 190-200 W/(m·K) at 20°C
Surface Finish	Natural silver matte anodized aluminium with a smooth wipeable face

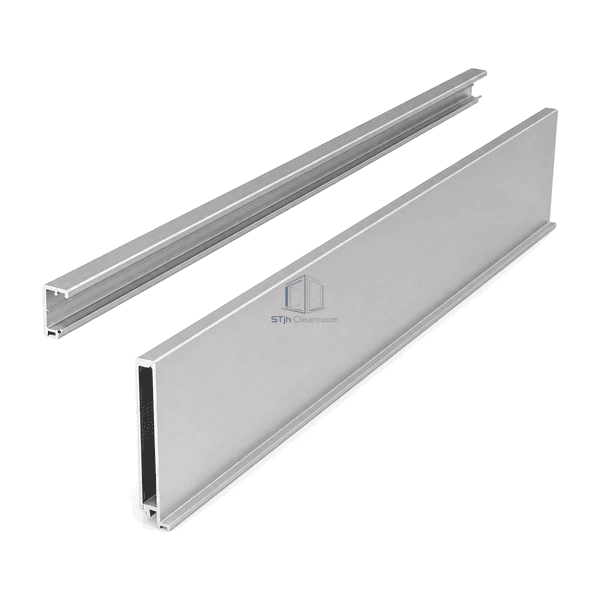

Joint Type	Concealed continuous rear-clip engagement with straight butt joints between adjacent lengths
Customization	Available based on the intended application and operating environment.

Available Options

Factory-cut profile lengths below the 3000 mm maximumWhite powder-coated finish for matching cleanroom wall panelsAlternative 85 mm or 90 mm visible heightsMatching left and right end piecesMatching internal and external corner accessories

Planning a Cleanroom Skirting specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
