Cleanroom Cleaning, Disinfection and Sterilization
Cleanroom Shoe Sterilizer
A compact walk-on footwear hygiene station that cleans shoe soles with rotating brushes and applies a controlled disinfectant solution before personnel enter clean areas.
- Sensor-activated brushes remove soil from footwear soles
- Metered disinfectant wetting supports repeatable hygiene steps
- Stainless walk-on platform fits controlled entry routes
Product Introduction
This cleanroom shoe sterilizer combines mechanical sole cleaning with compatible disinfectant application in one compact station. The stainless housing, removable brushes, drainable tray, adjustable dosing, and sensor control support routine cleaning. It is intended for installed entry procedures and does not replace facility floor cleaning or footwear controls.
Key Features
Stainless-steel walk-on housing and grid
Automatic presence or hand-contact activation
Adjustable disinfectant dosing pump
Removable brush rollers and debris tray
Anti-slip entry and exit surfaces
Stable stainless handrails
Dry-brush or wet-disinfection configuration
Customer Product Concerns
Footwear can track particles and microorganisms across gowning boundaries. Passive mats may be bypassed or lose effectiveness as they load, so a forced, maintainable entry step is often preferred.
How is use encouraged at the entry point?The guided platform and handrail place the cleaning step directly in the personnel route, with automatic activation during passage.
Can brushes be cleaned easily?Tool-free removable rollers and a lift-out tray allow routine wash-down and debris removal.
How is chemical use controlled?An adjustable pump meters compatible solution to the brushes, while wet or dry operation can be selected for the site procedure.
Is the walking surface safe?Anti-slip grating, stable rails, controlled brush speed, and a level installation support secure passage.
Typical Applications
Pharmaceutical cleanroom entrancesFood-processing hygiene barriersLaboratories and animal facilitiesMedical-device manufacturingDust-controlled workshopsGowning-room access routes
Technical Parameters

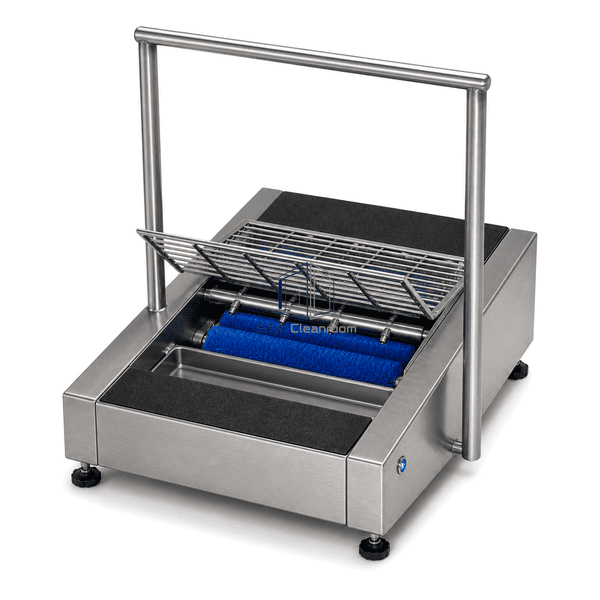

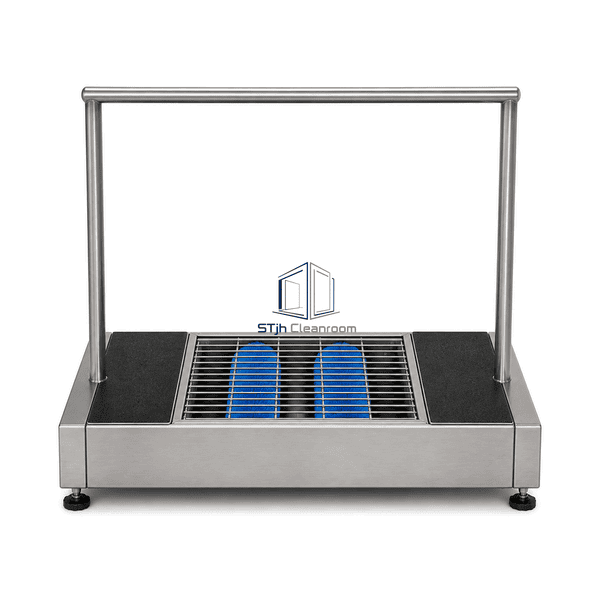

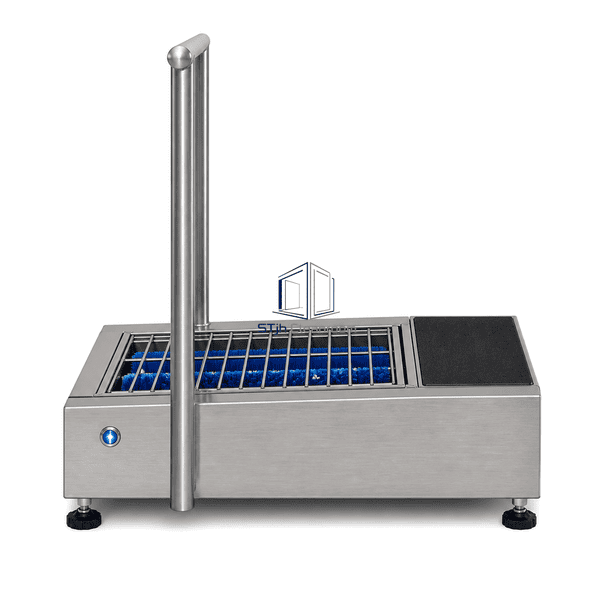

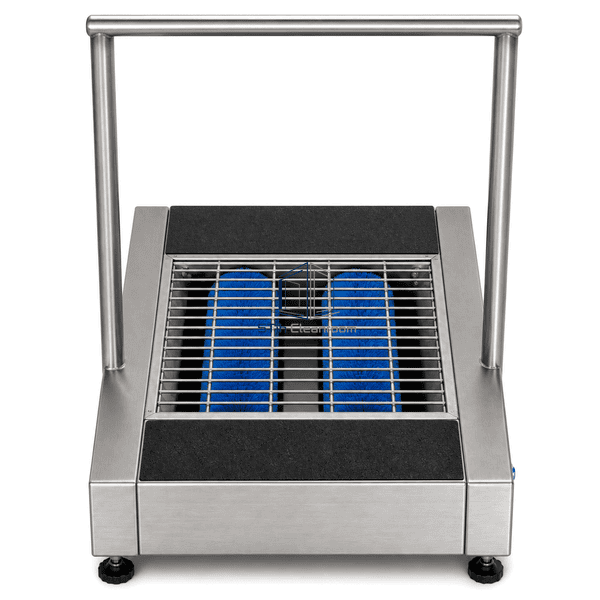

Two horizontal brush rollers rotate beneath an open stainless walking grid. An approach or hand-contact sensor starts the motor and dosing circuit, while a removable collection tray captures liquid and debris. Handrails provide stability during use.
| Core Material | 304 stainless-steel housing with replaceable nylon brush rollers |
|---|---|
| Panel Thickness | 20–40 mm reinforced platform sections |
| Effective Width | 700–1100 mm walking width |
| Maximum Length | 850–1600 mm overall station length |
| Steel Facing Thickness | 1.0–1.5 mm stainless-steel facing |
| Core Density | 35–50 kg/m³ sealed platform insulation where fitted |
| Thermal Conductivity | 0.030–0.040 W/(m·K) for optional insulated sections |
| Surface Finish | Brushed stainless steel with anti-slip walking grid |
| Joint Type | Welded hygienic housing seams with removable brush shafts and drainable tray connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Dry brush or wet disinfectant operationSingle-step or walk-through lengthHandrail and turnstile integrationHand-disinfection moduleAutomatic chemical dosingDrain connection or removable tankBrush colors and bristle grades
Planning a Cleanroom Shoe Sterilizer specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
