Cleanroom Service Chase Wall Panel

A double-wall modular assembly that forms an accessible technical chase behind the sealed cleanroom face, keeping pipes, cables and valves outside the production space while preserving serviceability.

Accessible Technical Chase

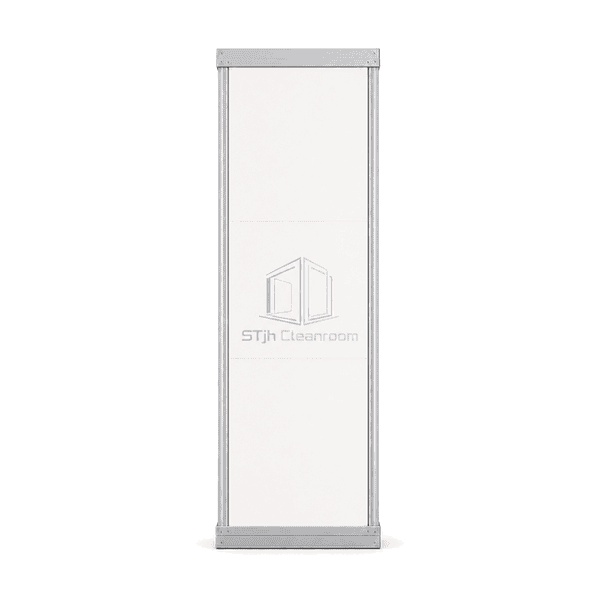

Clean-Side Sealed Face
Utility Routes Outside Production
Removable Service-Side Covers

Request a Quote Browse Products

Product Introduction

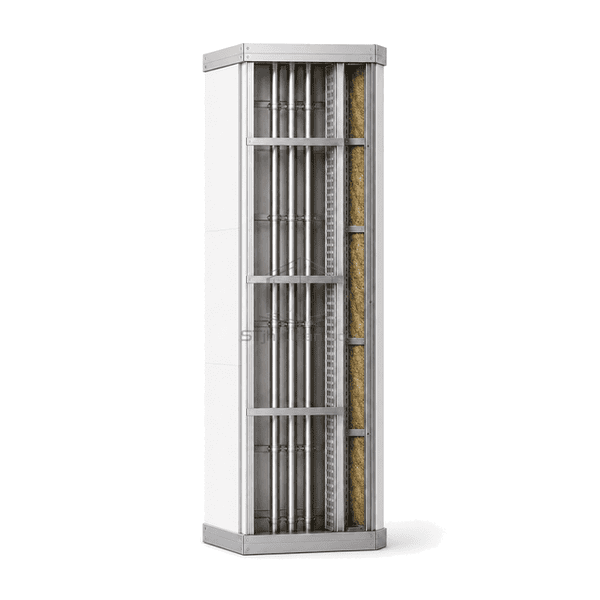

The Cleanroom Service Chase Wall Panel separates the hygienic room face from a parallel technical-side cover to create a full-height utility cavity. The clean-side module uses coated steel over dense rock wool for acoustic and thermal separation, while removable service-side panels expose organized pipe racks, cable trays and valve locations. Technicians can inspect or modify utilities from the chase without entering the controlled room. Head, base and vertical framing keep both faces aligned and provide independent support points for equipment connections through the wall.

Key Features

A dedicated wall cavity keeps distribution services out of the clean production envelope.

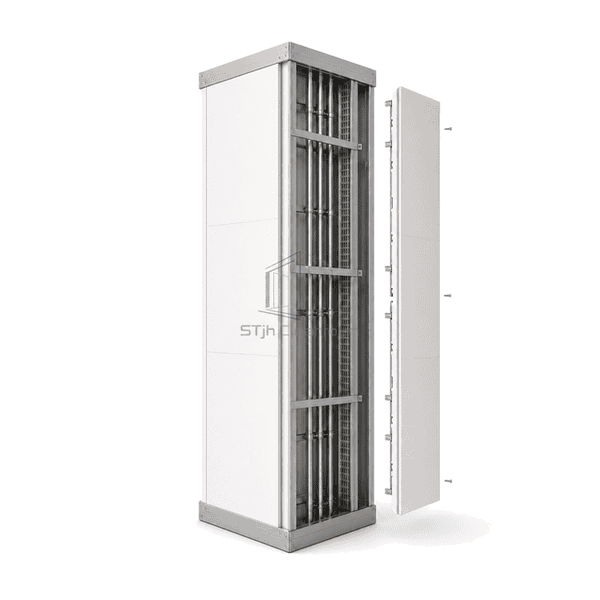

Removable technical-side covers provide direct maintenance access along the utility route.

Mineral-wool infill around the clean-side liner reduces sound transfer from active services.

Independent framing supports pipe brackets and cable trays instead of loading the finish skin.

Sealed sleeves create controlled transitions where utilities enter the room.

Customer Product Concerns

Service-chase design addresses maintenance entry, overcrowded routes, noise transmission and contamination risk when utilities are altered.

Servicing concealed utilities from inside the cleanroom interrupts production and entry control.Removable covers on the technical side expose the chase without opening the hygienic room face.

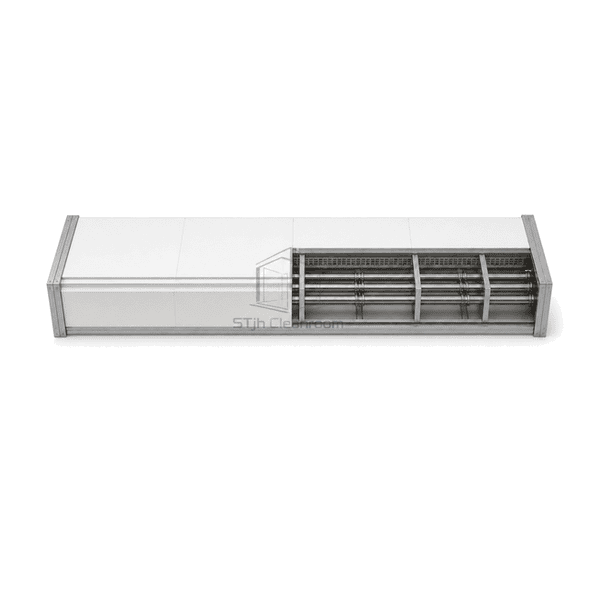

Unstructured pipes and cables compete for space inside a narrow cavity.Separate support rails organize fluid lines, power and data at different depths.

Pumps, valves and flowing services can transmit noise through a hollow partition.Mineral-wool infill and isolated brackets reduce direct vibration paths to the clean-side skin.

Adding a new penetration can release construction debris into an operating room.Reserved sleeves and replaceable technical modules allow controlled service additions from the chase side.

Typical Applications

Pharmaceutical manufacturing service corridorsBiotechnology service corridors and chasesLaboratories with dense utility distributionAseptic filling equipment wallsMedical production facilities with technical access zones

Technical Parameters

This specification describes a mineral-wool-lined double-wall chase sized for accessible utility distribution.

Core Material	Rock wool insulated clean-side panel surrounding an open framed service cavity
Panel Thickness	100, 150 or 200 mm overall chase depth
Effective Width	600, 980 or 1180 mm
Maximum Length	6000 mm
Steel Facing Thickness	0.50–0.80 mm
Core Density	100–120 kg/m³ for the rock wool liner
Thermal Conductivity	0.035–0.040 W/(m·K) for the insulated liner section
Surface Finish	Smooth coated-steel clean face with galvanized or coated removable service covers
Joint Type	Sealed clean-side tongue-and-groove with detachable battened technical-side cover
Customization	Chase depth, access covers and internal support rails can be adapted to the intended utility arrangement

Available Options

Pipe-rack and cable-tray support railsFull-height or sectional access coversPreformed sealed utility sleevesStainless steel clean-side surface
