Cleanroom Protection Rail

A low-profile hygienic wall guard with a replaceable light-gray PVC-u cover, continuous aluminum retainer and color-matched end caps for cleanroom traffic zones.

100 mm Impact Face
Continuous Aluminum Retainer
Six-Point Mounting Pattern
Replaceable PVC-u Cover

Request a Quote Browse Products

Product Introduction

The cleanroom protection rail uses a gently curved rigid PVC-u cover clipped over a continuous 6063-T5 aluminum retainer. Its 100 mm face presents a broad contact surface at trolley and cart height without resembling a handrail or projecting tube. Six countersunk holes distribute the retainer fixings along a standard section, while one close-fitting molded cap finishes each cut end and closes the exposed profile edges.

Key Features

The rounded cover spreads incidental trolley contact over a broad face instead of concentrating force on a narrow wall edge.

A 2.0 mm impact-modified PVC-u skin snaps onto the concealed metal support and can be replaced without removing the full retainer.

The continuous 2.0 mm aluminum backing keeps the long rail profile aligned and supports load transfer between fixing points.

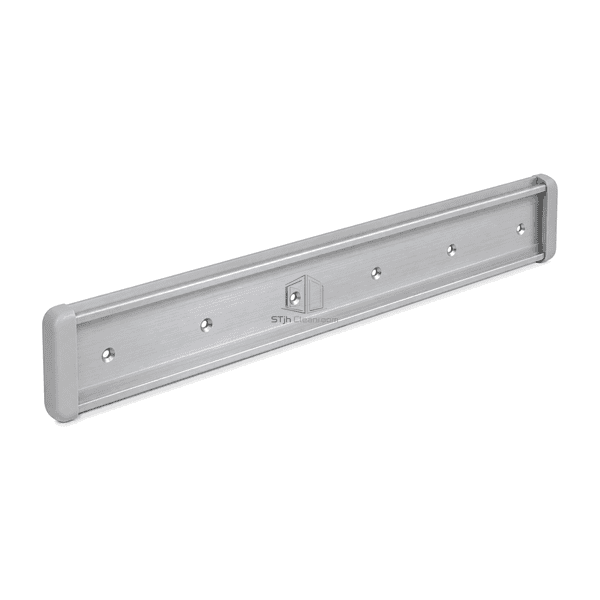

Six countersunk mounting positions provide a predictable fastening layout along a 3660 mm section.

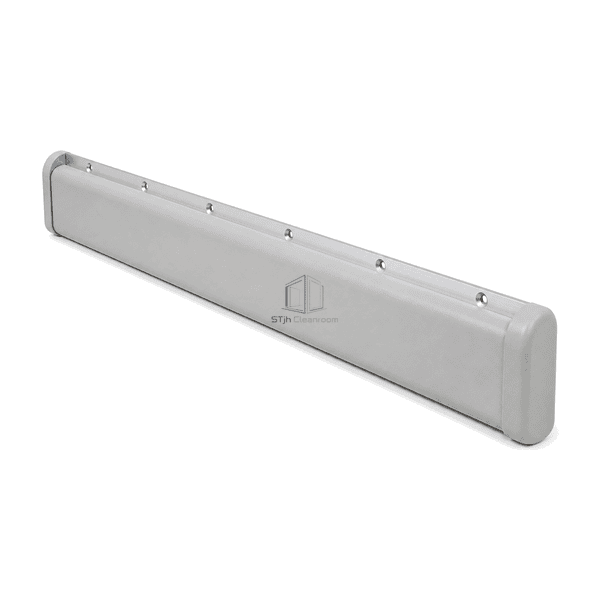

Color-matched molded caps close both rail ends with smooth transitions that remain accessible for wipe-down.

Customer Product Concerns

Traffic at equipment and trolley height can mark modular wall finishes, loosen local repairs and create ledges that are difficult to clean.

Repeated cart contact can dent a cleanroom panel skin at the same operating height.The wide curved PVC-u face and continuous aluminum backing spread contact along the rail before it reaches the finished wall.

Open profile ends and projecting hardware create dirt traps along a frequently cleaned corridor.Close-fitting molded caps and a snap-on cover conceal cut edges and fasteners behind smooth accessible surfaces.

Replacing a permanently bonded guard after visible abrasion can disrupt an operating controlled area.The replaceable cover separates routine cosmetic renewal from the retained wall-mounted aluminum support.

A long guard fixed at irregular points can bow or follow an uneven line across modular panels.The rigid continuous retainer and defined six-hole layout support level positioning and consistent fastening along the section.

Typical Applications

Cleanroom corridors exposed to material-cart trafficPharmaceutical production and laboratory circulation routesControlled equipment staging and service zonesHygienic food and medical-device processing corridorsWall protection beside pass-through and transfer areas

Technical Parameters

Typical construction and dimensional values for a light-gray PVC-u cleanroom wall protection rail are listed below.

Core Material	Impact-modified rigid PVC-u snap-on cover over a continuous 6063-T5 aluminum retainer with molded PVC-u end caps
Panel Thickness	Approximately 29 mm overall rail projection from the finished wall
Effective Width	100 mm nominal protective face height
Maximum Length	Up to 3660 mm per continuous rail section
Steel Facing Thickness	No steel facing; 2.0 mm nominal PVC-u cover and 2.0 mm aluminum retainer
Core Density	Approximately 2700 kg/m³ for the 6063 aluminum retainer
Thermal Conductivity	Approximately 190 W/(m·K) for 6063 aluminum at 20°C
Surface Finish	Through-colored fine-textured light-neutral-gray PVC-u with a mill-finish satin-silver aluminum retainer
Joint Type	Snap-fit PVC-u cover on a continuous predrilled retainer with two fitted end caps and six countersunk wall fixings per 3660 mm section
Customization	Available based on the intended application and operating environment.

Available Options

Alternative through-colored neutral PVC-u cover colorsFactory-cut rail lengths for the required wall runMatching left and right end caps, outside corners and inside cornersSubstrate-compatible anchors for modular panels, masonry or reinforced backingOptional spacer pads where additional wall clearance is required
