Cleanroom Furniture and Stainless Steel Products
Cleanroom Mop Sink
A low-level Type 304 stainless janitorial basin with a coved 16-gauge bowl, removable blue polymer grate, drop-front apron, three-sided splash protection and 76 mm waste.
- Low-level bucket access
- Coved 16-gauge bowl
- Removable blue support grate
- Large 76 mm waste
Product Introduction

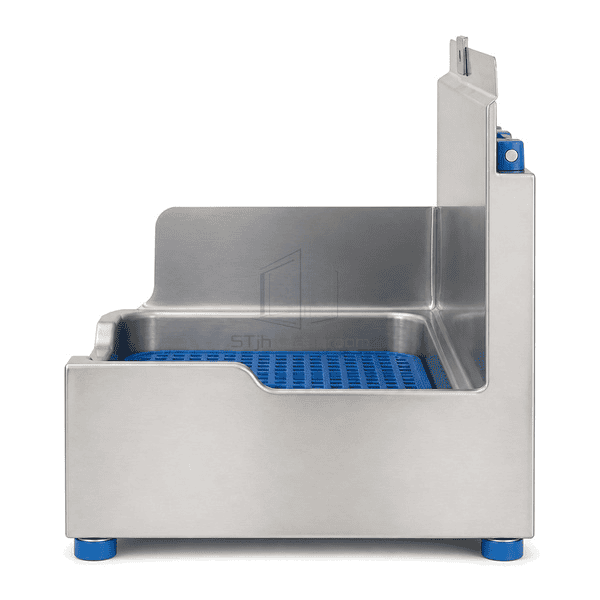

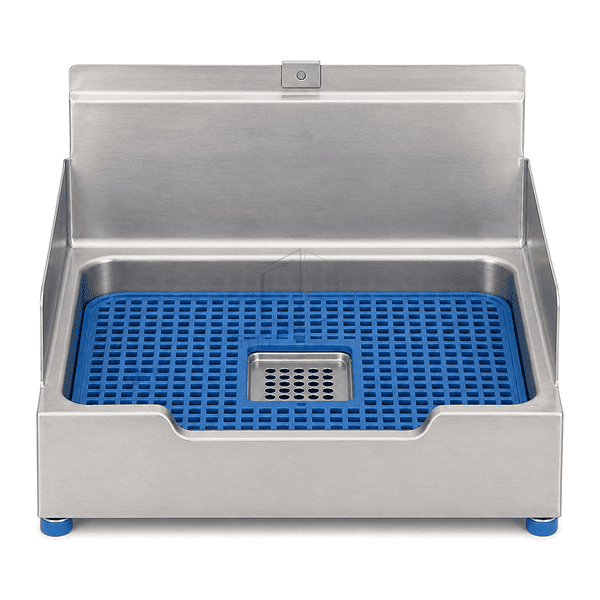

The cleanroom mop sink creates a low washing and discharge point for mop heads, buckets and floor-cleaning tools without requiring operators to lift a full pail to bench height. Its Type 304 stainless bowl is formed with generous internal radii and TIG-welded into a three-sided splash enclosure. A shallow drop-front apron shortens the bucket lifting path, while a removable blue polypropylene grate supports pails above the outlet. The flat basket strainer and 76 mm waste handle lint-bearing wash water, and an attached wall clip stabilizes the floor-mounted body.
Key Features

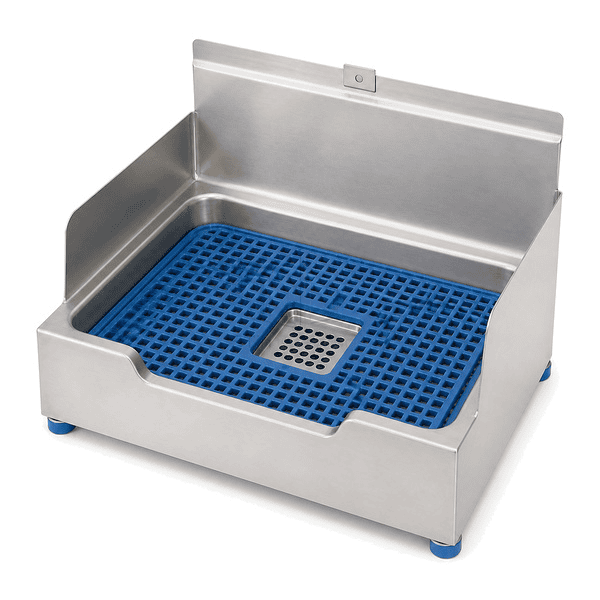

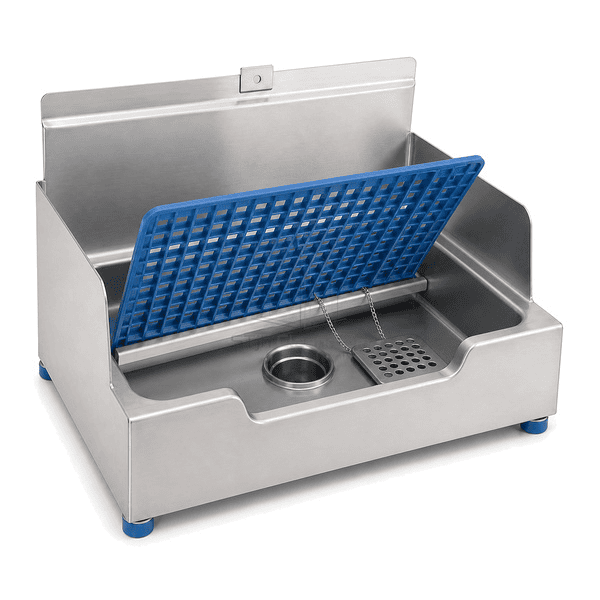

A removable perforated blue grate holds pails above the waste and lifts out for direct bowl cleaning.
Generous coved corners and blended TIG welds avoid sharp internal intersections around dirty wash water.
Rear and side splash panels contain mop rinse spray without adding a separate wall-mounted upstand.
Customer Product Concerns
Janitorial teams need to rinse mops and discharge buckets close to floor level without splashing adjacent finishes or blocking a small cleaning room.
Lifting a full bucket into a conventional sink strains the operator and spills wash water.The low floor-mounted bowl and drop-front edge shorten the lifting path.
Mop fibres and debris collect around a small domestic drain.A removable flat basket strainer feeds a 76 mm waste sized for janitorial discharge.
Buckets placed directly over the outlet stop drainage during refilling or rinsing.The raised blue grate supports the bucket while leaving a drainage path beneath it.
Square fabricated corners retain dirty water after the sink is emptied.The sloped bowl floor and large coved radii direct residual water toward the strainer.
Typical Applications
Cleanroom janitorial closetsControlled corridor cleaning stationsPharmaceutical support washroomsHigh-care food sanitation roomsMedical-device floor-care areas
Technical Parameters
Typical configurable specifications for a floor-mounted stainless cleanroom mop sink are listed below.
| Core Material | Type 304 stainless deep coved basin with removable blue polypropylene bucket grate and stainless basket strainer |
|---|---|
| Panel Thickness | 1.5 mm 16-gauge bowl, splash panels and apron |
| Effective Width | 560 mm clear low-level washing width |
| Maximum Length | 650 mm maximum front-to-back dimension including rear splash panel |
| Steel Facing Thickness | 1.5 mm Type 304 stainless exposed basin surfaces |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Satin-brushed stainless exterior with smooth coved bowl and blue removable polymer grate |
| Joint Type | Fully welded floor basin with rear wall clip, three-sided splash enclosure and 76 mm basket-strainer waste |
| Customization | Available based on the intended application and operating environment. |
Available Options
Hose bracket and mop hangerWall-mounted swivel mixerType 316 stainless bowlStainless bucket grate
Planning a Cleanroom Mop Sink specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
