Personnel and Material Decontamination Equipment

Cleanroom Gowning Airlock

A structured changing airlock with a step-over bench, garment storage and separated dirty-to-clean flow.

Step-over clean divide
Ordered garment storage
Separated return points
Interlocked exit sequence

Request a Quote Browse Products

Product Introduction

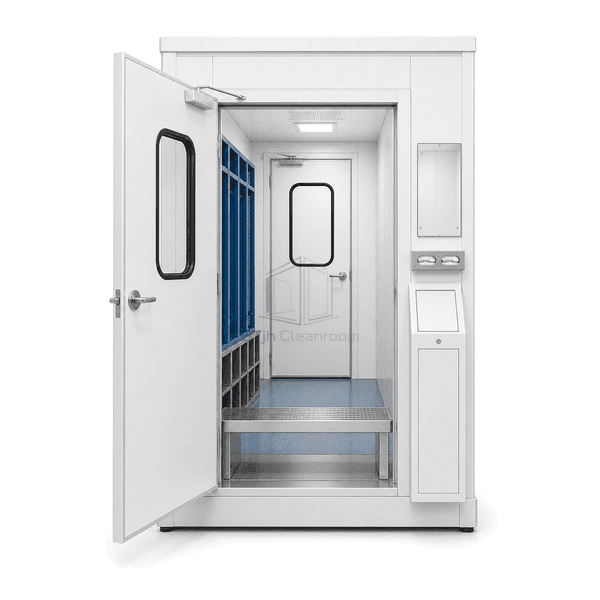

The Cleanroom Gowning Airlock combines a sealed personnel vestibule with the furniture that guides a practical changing sequence. A full-width step-over bench marks the transition from outdoor footwear to clean footwear, while garment cabinets, dispensers and return points can be arranged in their order of use. Interlocked doors retain the room boundary while personnel complete the required dressing and hygiene steps.

Key Features

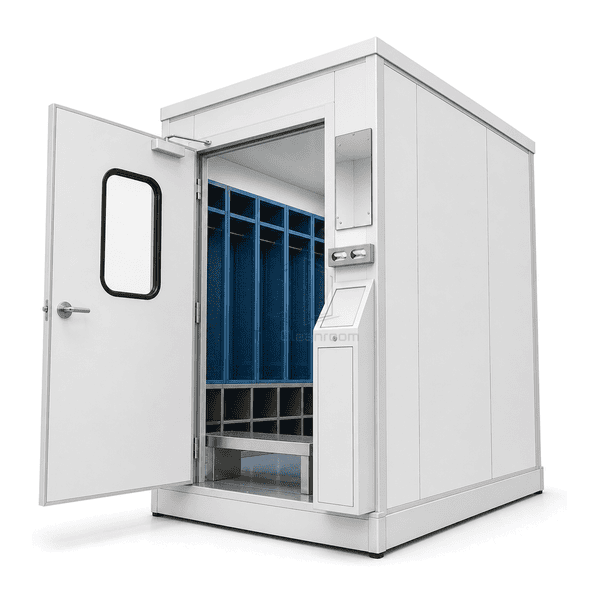

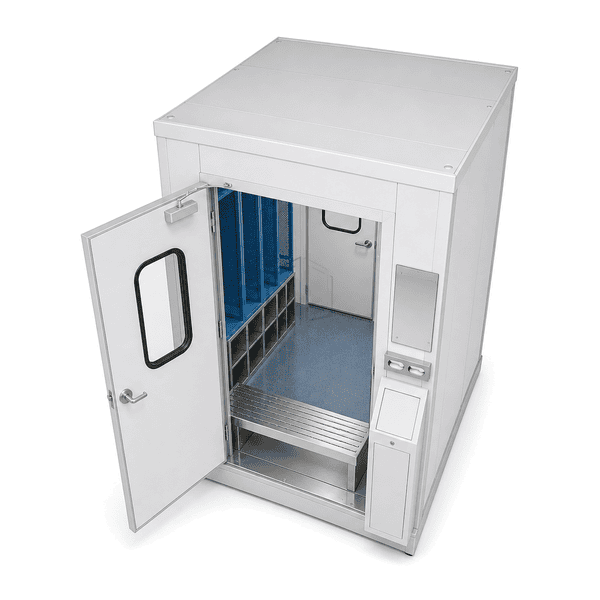

A full-width step-over bench provides a physical dirty-to-clean transition.

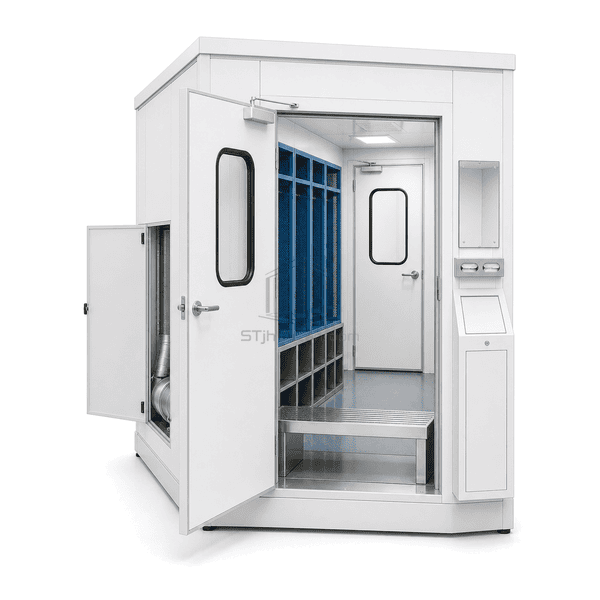

Storage can be arranged in the practical order of garments and accessories.

Separate return and waste points keep used articles away from clean stock.

Door interlocking prevents a direct open path between adjacent zones.

Flush enclosure panels provide cleanable room surfaces around the gowning furniture.

Customer Product Concerns

A two-door vestibule becomes a useful gowning space only when it establishes an unambiguous direction from street-side to clean-side footwear and garments.

Users step back across a floor zone after changing into clean shoes.The step-over bench fixes a visible transition between the two footwear sides.

Clean garments, used apparel and waste are stored together.Dedicated cabinets and return receptacles give each material state a separate location.

Furniture blocks doors and creates queues at shift changes.Bench length, storage position and room width can be selected around expected occupancy.

The clean-side door is opened before the entry sequence is complete.The interlock can wait for the entry door to be secure and for the connected hygiene step to return completion.

Typical Applications

Sterile pharmaceutical gowningBiotechnology cleanroom changingMedical-device productionMicroelectronics personnel entryResearch clean suites

Technical Parameters

The enclosure, bench and storage layout are configured around personnel numbers, garment sequence and the available cleanroom footprint.

Core Material	Closed-cell polyurethane insulated cleanroom enclosure panels
Panel Thickness	50–100 mm
Effective Width	1500–3000 mm usable gowning width
Maximum Length	4000–10000 mm room length
Steel Facing Thickness	0.8–1.2 mm
Core Density	38–45 kg/m³
Thermal Conductivity	0.022–0.030 W/(m·K)
Surface Finish	Powder-coated cleanroom steel with stainless step-over bench and storage furniture
Joint Type	Sealed flush panel joints with interlocked personnel doors
Customization	Available based on the intended application and operating environment.

Available Options

Perforated garment lockersIntegrated shoe storageMirror and glove dispenser positionsCeiling supply module
